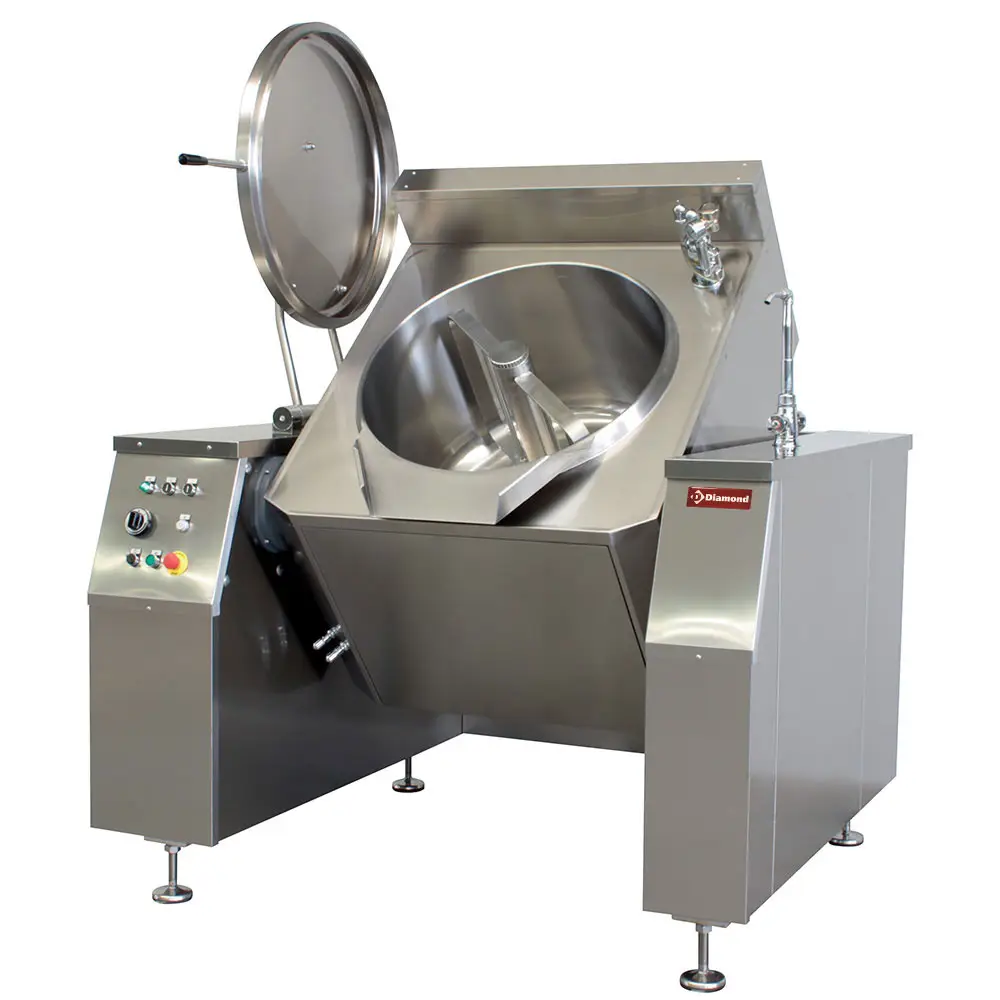

Diamond EXB/200I Electric Indirect Heating Boiling Pan with Mixer, 200 Litres
£39,859.68
+vat
RRP: £71,178.00
Size:
Capacity:
- Tank diameter 760 mm, depth 500 mm.
- “Deep-drawn” tank, bottom made of polished AISI 316 stainless steel (25/10 mm thick) wall made of 304 stainless steel (20/10 mm thick)
- Indirect heating, double jacket made of 304 stainless steel (20/10 mm thick).
- Made of AISI 304 stainless steel, version on AISI 304 stainless steel columns (delivered with floor fixing kit)
- Covering: made of AISI 304 stainless steel (10/10 mm thick)
- Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- “Deep-drawn” tank wall made of 304 stainless steel, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear
- Water tap for filling the tank.
- Mixer incorporated in the tank for a homogeneous cooking.
- Motorized tank tilting
- Operation on the front side.
- “Deep-drawn” cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket
- Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Electric heating by INCOLOY resistors immersed in the double envelope, power regulation by means of an energy regulator.
- Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch.
- Working temperature up to 100°C.
Measures and Content
Dimensions
External Dimension (WxDxH): W1600 x D1450 x H1050
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond EXB/200I Electric Indirect Heating Boiling Pan with Mixer, 200 Litres then please get in touch.
01922 926123
