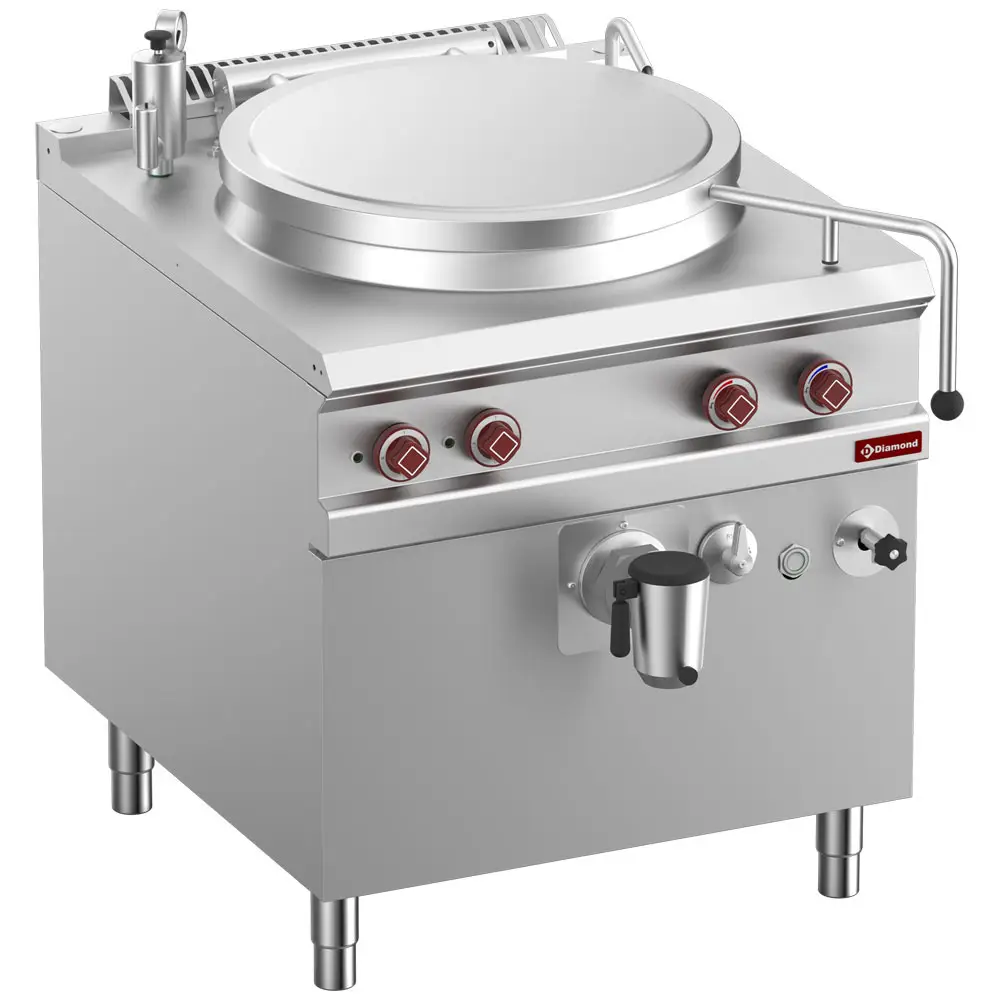

Diamond E9/M10I8-N Electric Indirect Heating Boiling Pan on Cupboard, 100 Litres
£5,966.24
+vat
RRP: £10,654.00
Size:
Capacity:
- Diameter of the tank 600 mm, depth 420 mm.
- Drainage tap 2″.
- Made in stainless steel AISI 304, adjustable feet in stainless steel.
- Stamped and waterproof top (20/10 mm) in stainless steel AISI 304.
- Chimney in the back in stainless steel AISI 304.
- “Stamped” tank in stainless steel AISI 304, bottom in stainless steel AISI 316 30/10 mm, side walls in 20/10 mm, resistant to salt corrosion and wear, provided with a removable strainer for protection of the drain valve, corners with rounded interior angles
- Water tap for filling up the tank, with the control positioned on the front.
- “Stamped” cover, hinges with “torsion spring” allowing a closing and a gradual opening, provided with an ergonomic handle.
- Indirect heating, double-walled tank, water filling by a tap, a second serving as overflow, monitoring light and drain faucet
- Control of the pressure of the double wall at 0.5 bar by pressure switch, safety device with manometer and vacuum valve placed above the top.
- Electric heating by immersion elements in the double wall
- Temperature regulation by a 4-position switch, frontal accessibility allowing a very easy maintenance.
Measures and Content
Dimensions
External Dimension (WxDxH): W800 x D900 x H920
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond E9/M10I8-N Electric Indirect Heating Boiling Pan on Cupboard, 100 Litres then please get in touch.
