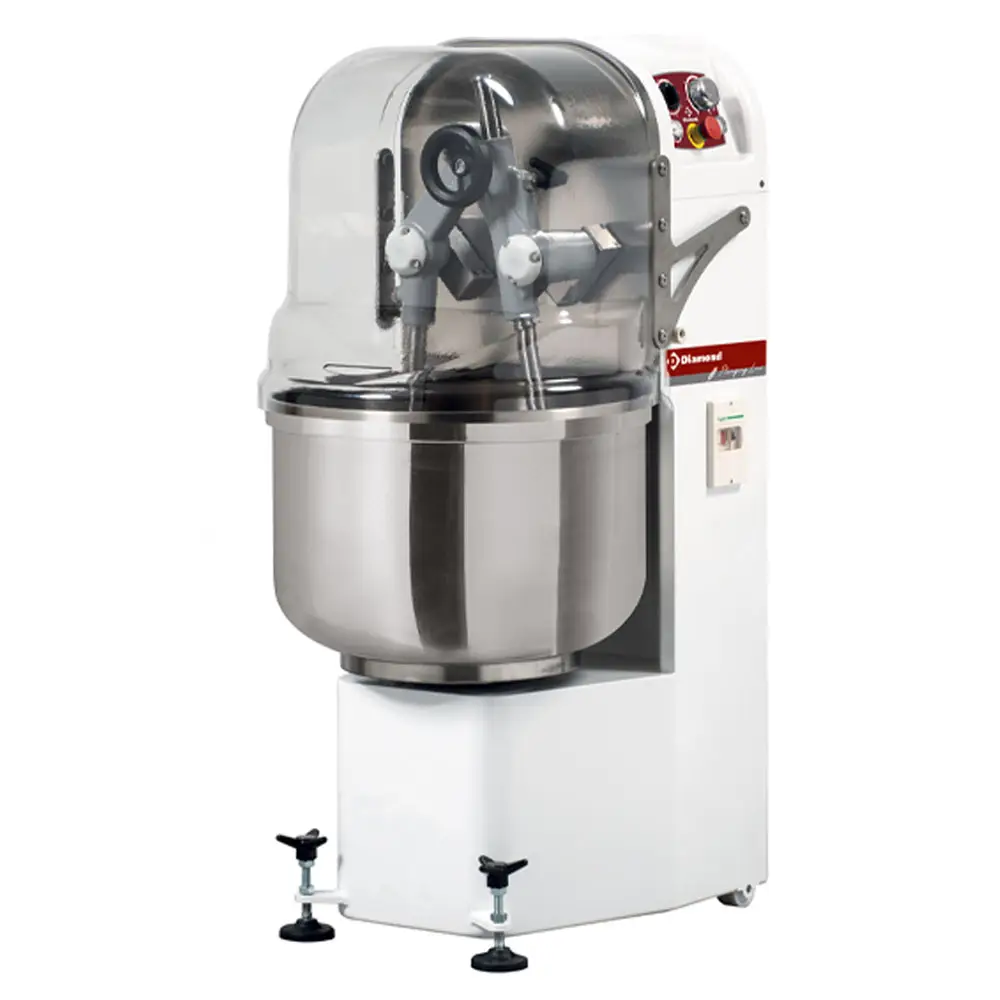

Diamond PBP-40/T2V Variable Speed Spiral Kneader with Swing Arm, 70 Litres
£9,340.80
+vat
RRP: £16,680.00
Size:
Capacity:
- 2 speeds (40 to 60 movements per minute)
- Production capacity 5 to 40 kg (70 Lt)
- Flour capacity 3 to 25 kg
- Timer supplied as standard
- Adjustable right arm
- Tank Ø 530xh320 mm
- Analog control panel with low voltage 24 V (IP55).
- Adjustable plunging arm (the one on the right).
- Gear drive made of treated and ground cast iron, self-lubricating, perfectly sealed gearbox, very quiet operation.
- Emergency stop button type “punch”.
- Frame in epoxy painted steel, very thick.
- Tank, plunging arms in thick AISI 304 stainless steel.
- Protective plexiglass, with safety device by microswitch.
- Comes standard with 2 fixed rear nylon wheels and 1 swivel wheel and 2 adjustable cylinders at the front.
- The device is built in compliance with the current CE standards.
Measures and Content
Dimensions
External Dimension (WxDxH): W600 x D770 x H1350
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond PBP-40/T2V Variable Speed Spiral Kneader with Swing Arm, 70 Litres then please get in touch.
01922 926123
