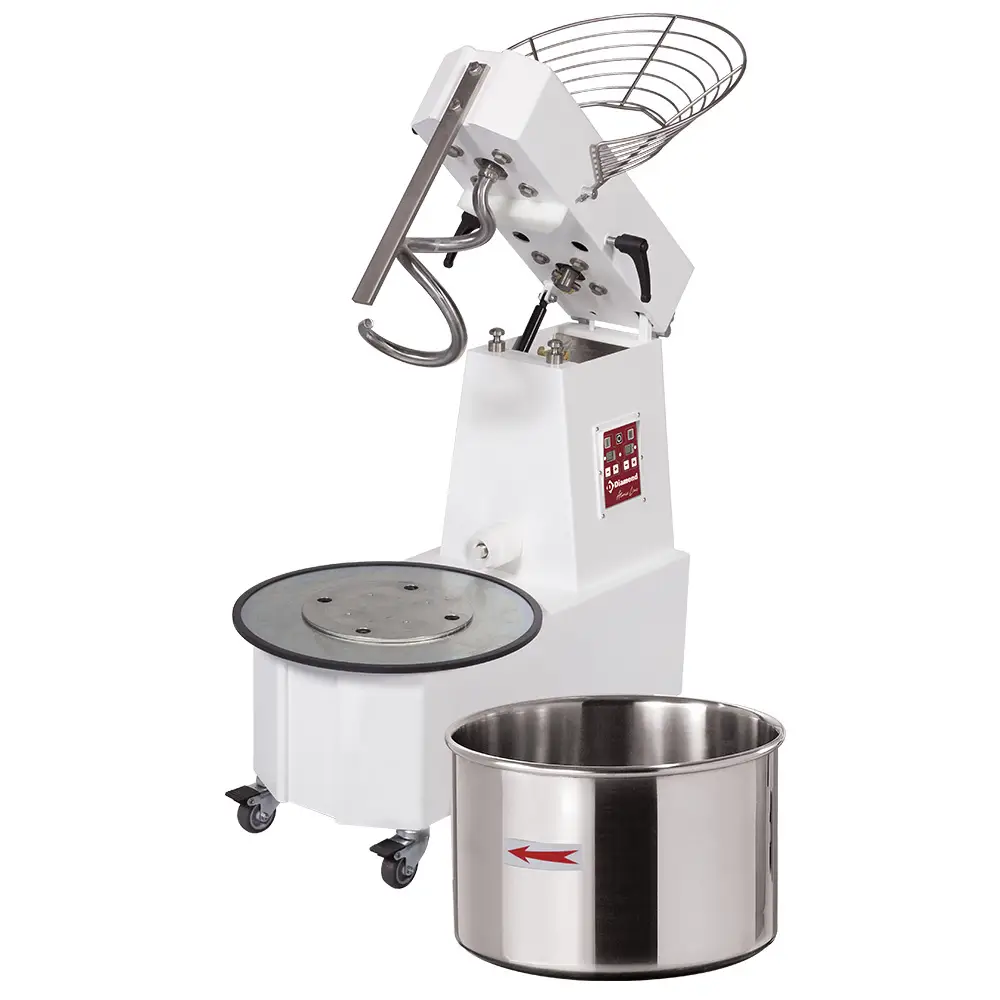

Diamond DH53AL/T2V Automatic 2 Speed Tilting Head Spiral Mixer on Wheels, 52 Liters
£2,568.16 +vat
+vat
RRP: £4,586.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Tilting head and removable bowl
- 2 Speeds (Spiral : 1st speed 100 rpm. and 2nd speed 200rpm) & (Tank : 1st speed 10rpm. and 2nd speed 20rpm and timer) with possibility of automatic or manual programming with timer or continuous
- Diameter of the spiral 24 mm
- Diameter of the tank 500 mm height 270 mm (53 liters) = 44 kg dough
- Digital control panel (manual or automatic operation)
- Frame made of painted steel
- Rotating tank in AISI 304 stainless steel
- High hardness stainless steel spiral adjustable in height (intervention by a specialized technician), dividing coulter and screws in AISI 304 stainless steel
- Stainless steel spiral connection unit, waterproof and very solid (reinforced!)
- Stainless steel grate with a micro safety switch
- Transmission by oil bath gear motor, very robust (oversized), reliable, efficient, designed for intensive use
- Suspended engine, better ventilation, easy maintenance
- Low voltage controls 24 V. (IP55)
- Comes standard with wheels, 2 of which are equipped with brakes
- The device is built in compliance with the current CE standards
Measures and Content
Dimensions
External Dimension (WxDxH): W520 x D870 x H770
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DH53AL/T2V Automatic 2 Speed Tilting Head Spiral Mixer on Wheels, 52 Liters then please get in touch.
