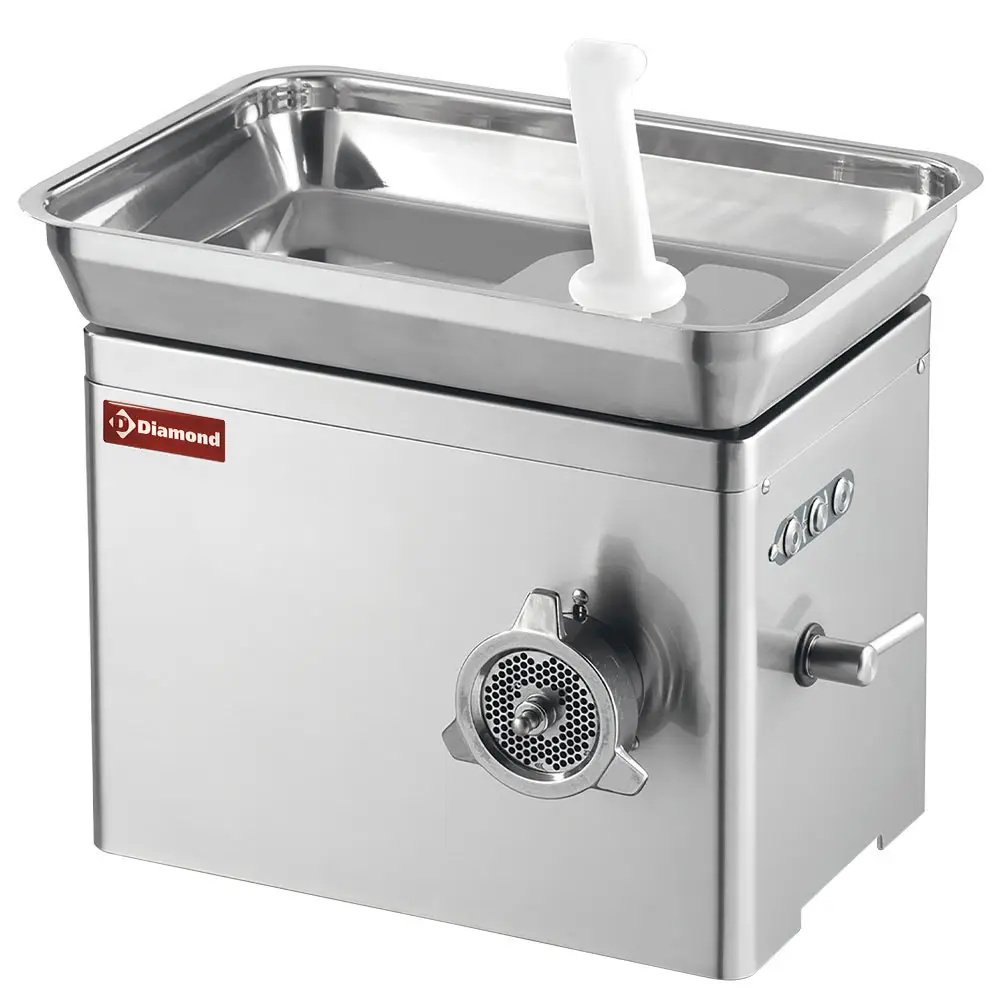

Diamond TGD22/AT-N Stainless Steel Table Top Meat Mincer, 350kg per Hour

£2,408.00

+vat

RRP: £4,300.00

Brand: Diamond

SKU: TGD22-AT-N

Size:
Capacity:

With protection on the mincer head, allowing to work with grids larger than Ø 8 mm (10-12 …)
Frame in stainless steel AISI 304.
Ventilated motor (IP 55) designed for intensive use.
Gear drive in oil bath, double liquid protection (between the mincer head and the motor).
Mincer head in AISI 304 stainless steel, tool-free connection (fastening by means of a lever), completely dismountable, easy and hygienic maintenance.
Upper hopper in AISI 304 stainless steel (removable), with “square” inlet, for a very quick second passage.
Low-voltage 24 V controls, IP 67 protection class, with rotation inversion (in case of blockage).
Unit built in compliance with current (CE) standards.

Measures and Content

Dimensions

External Dimension (WxDxH): W512 x D390 x H531

Cooling and Functions

Power and Consumption

Design and Material

If you have any questions about the Diamond TGD22/AT-N Stainless Steel Table Top Meat Mincer, 350kg per Hour then please get in touch.
