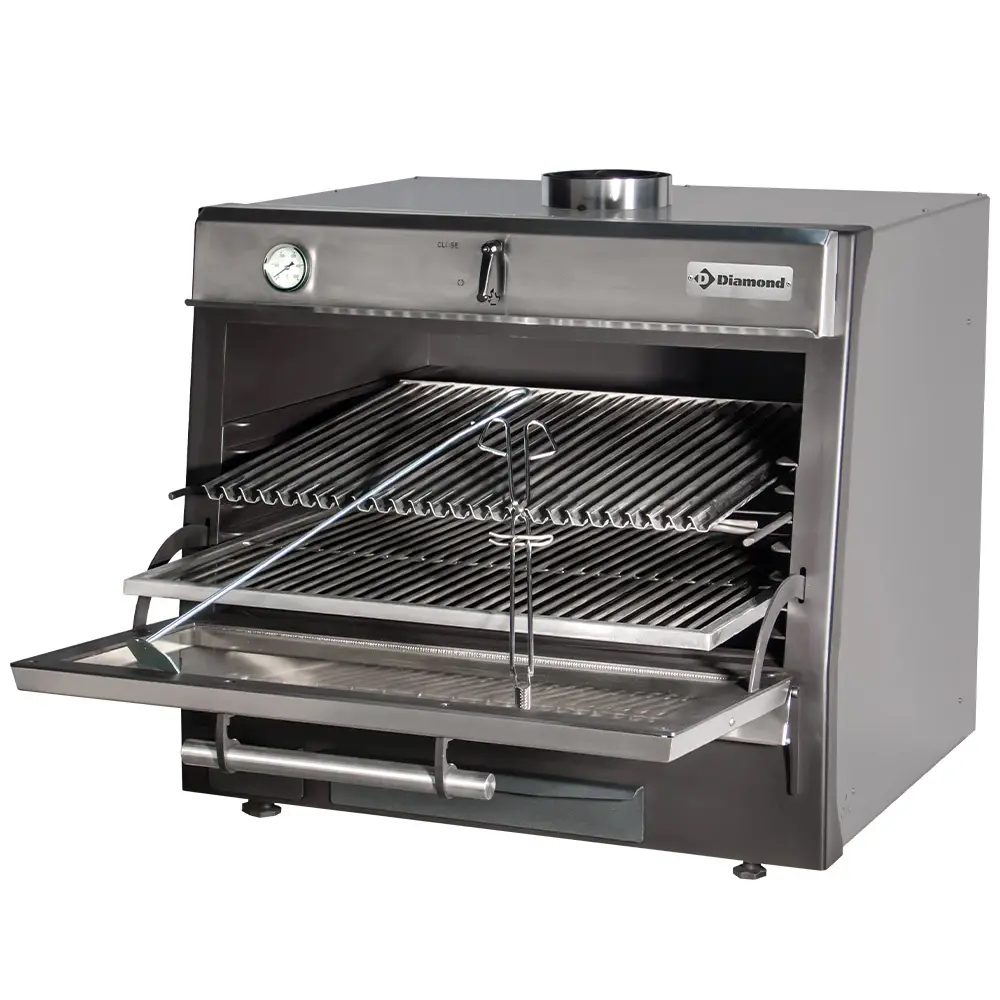

Diamond CBQ-075/SS Stainless Steel BBQ Charcoal Oven
£5,602.24 +vat
+vat
RRP: £10,004.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Temperature regulation on 6 levels, possibility GN 1/1 + GN 2/4.
- Production 75 Kg / h (recommended for 115 people).
- Power expressed in Kw: 4,5.
- Carrying capacity in coal 4,5Kg.
- Standard equipment: one meat tongs, 1 scraper and 1 grid in “O” shape (685×535 mm).
- Exterior finish in stainless steel, interior finish in stainless steel and cast iron.
- Fully insulated oven.
- Isolation system (patented) which decreases the temperature in contact with the oven (+/- 60 ° C) and the reduction of energy consumption (25% reduction of coal consumption!).
- Door hinged, tilting, with large windows (high temperature 750 ° C), allowing excellent visibility inside is possible and no need to open the door so often.
- Grease trap integrated, with drawer.
- Ash tray (removable).
- Analog thermometer.
- An integrated firewall.
- External air flow regulator integrated into the chimney.
- Delivered with 4 adjustable feet.
Measures and Content
Dimensions
External Dimension (WxDxH): W800 x D675 x H690
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond CBQ-075/SS Stainless Steel BBQ Charcoal Oven then please get in touch.
01922 926123
