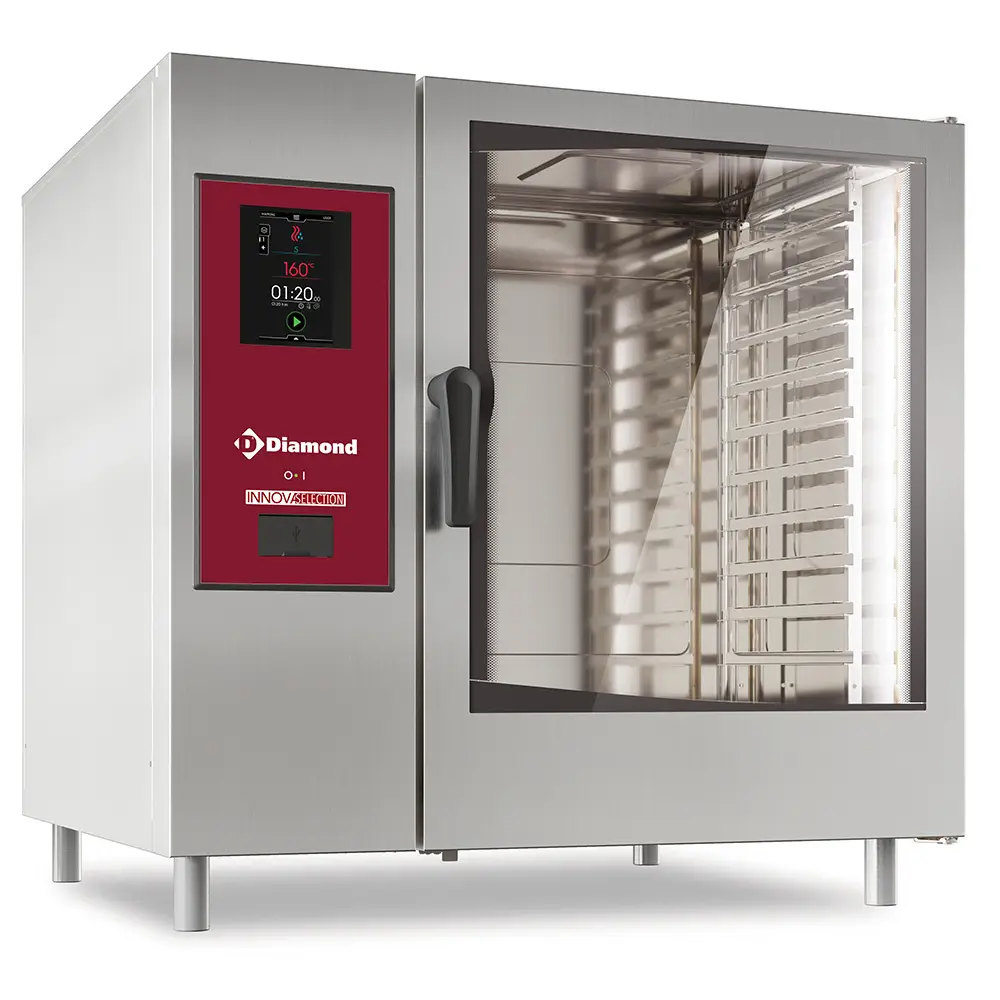

Diamond SDGT/XC-12 Gas Direct Steam Convection Oven, 1.5kW
£16,383.36 +vat
+vat
RRP: £29,256.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Oven loading of GN 2/1 ( or GN 1/1) plates.
- Load capacity 100Kg.
- Lateral structures with 65 mm “anti-tip”.
- Core temperature probe.
- Charger 600×400 EURONORM (on request ref : AC/P12…)
- NB: delivered without grids and without GN plates.
- Interior and external made in stainless steel AISI 304, ceramic insulation made in thermo fibre, feet made in stainless steel
- Cooking chamber: entirely welded, total sealing, corners and angles rounded without asperities
- Gasket fixed on the front face of cooking chamber
- Pressing Fund which collects condensation towards the discharge
- Structure carries easily removable platinum
- diffusers of heat Easily dismountable
- Motorized Oura largely dimensioned allowing all cooking’s
- Lighting on side allowing a comprehensive view of the cooking chamber
- The design of the cooking chamber coupled to a side ventilator made in stainless steel AISI 304 (CCRR), guarantees a management and a uniform distribution an of heat.
- Doors double glazing: ergonomic and athermic handle, automatic closing with safety avoiding all accidental openings, recuperator of condensation integrated in the door, glazes interior rise on hinges, facilitating cleaning guaranteeing a perfect hygiene
- A circulation of air enters the panes guaranteed a better thermo isolation
- Micro switch for the stopping of the ventilator at the time of the opening
- Gas heating: by pulsed burners and grooved heat exchangers (increase efficiency and save up to 20% of gas consumption and 20% of harmful emissions), steam by nebulizer. Control panel “TOUCH SCREEN with frontal accessibility, facility and speed for the SAV, protection indicator IPX5 (against water jets).
Measures and Content
Dimensions
External Dimension (WxDxH): W1090 x D971 x H1058
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SDGT/XC-12 Gas Direct Steam Convection Oven, 1.5kW then please get in touch.
01922 926123
