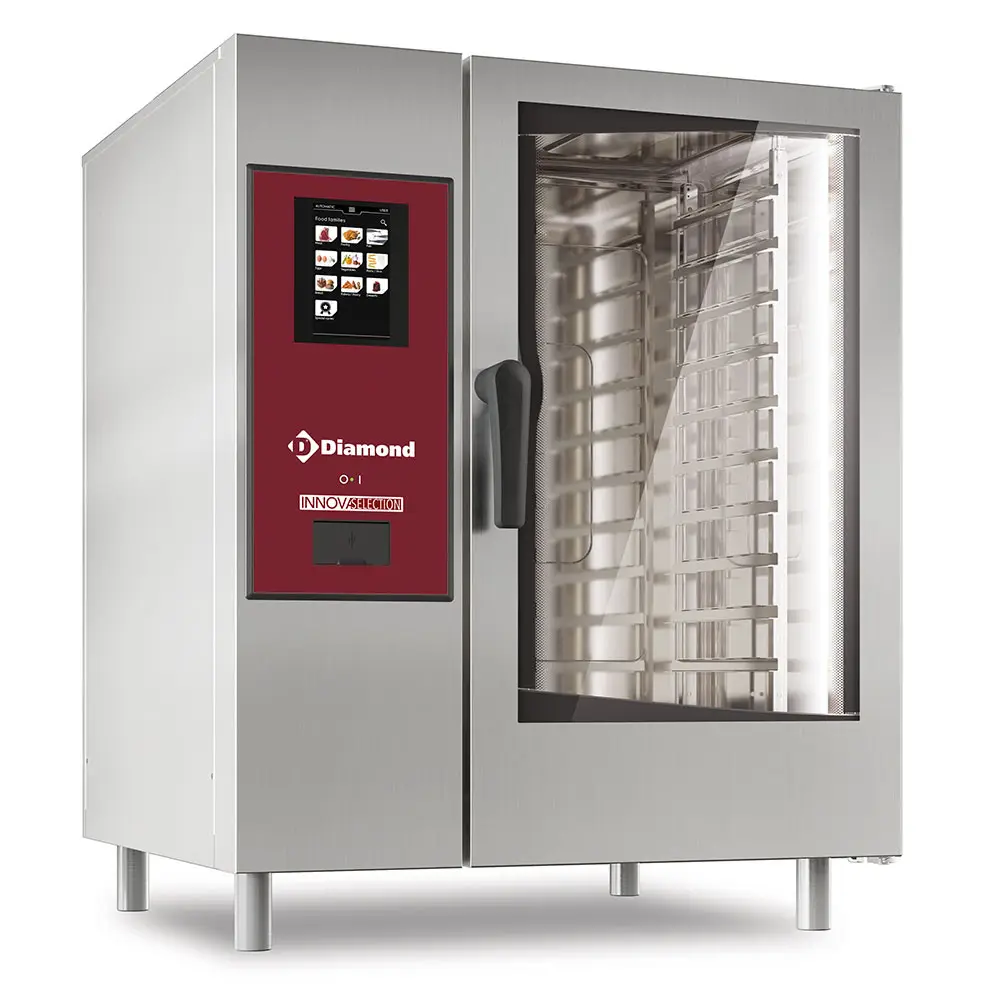

Diamond SDGT/XC-10 Gas Direct Steam Convection Oven, 1.1kW
£10,707.20
+vat
RRP: £19,120.00
Size:
Capacity:
- Oven “LENGTHWISE” loading of GN 1/3, 1/2, 2/3 and 1/1 plates.
- Load capacity 50Kg.
- Lateral structures less than 65 mm “anti-tipping”.
- Core temperature probe.
- Structure (Dx & Gx) 600×400 EURONORM (on request ref : AC/SE…)
- NB: delivered without grids and without GN plates.
- Interior and external made in stainless steel AISI 304, ceramic insulation made in thermo fibre, feet made in stainless steel
- Cooking chamber: entirely welded, total sealing, corners and angles rounded without asperities
- Gasket fixed on the front face of cooking chamber
- Pressing Fund which collects condensation towards the discharge
- Structure carries easily removable platinum
- diffusers of heat Easily dismountable
- Motorized Oura largely dimensioned allowing all cooking’s
- Lighting on side allowing a comprehensive view of the cooking chamber
- The design of the cooking chamber coupled to a side ventilator made in stainless steel AISI 304 (CCRR), guarantees a management and a uniform distribution an of heat.
- Doors double glazing: ergonomic and athermic handle, automatic closing with safety avoiding all accidental openings, recuperator of condensation integrated in the door, glazes interior rise on hinges, facilitating cleaning guaranteeing a perfect hygiene
- A circulation of air enters the panes guaranteed a better thermo isolation
- Micro switch for the stopping of the ventilator at the time of the opening
- Gas heating: by pulsed burners and grooved heat exchangers (increase efficiency and save up to 20% of gas consumption and 20% of harmful emissions), steam by nebulizer
- Control panel “TOUCH SCREEN with frontal accessibility, facility and speed for the SAV, protection indicator IPX5 (against water jets).
Measures and Content
Dimensions
External Dimension (WxDxH): W867 x D850 x H1058
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SDGT/XC-10 Gas Direct Steam Convection Oven, 1.1kW then please get in touch.
