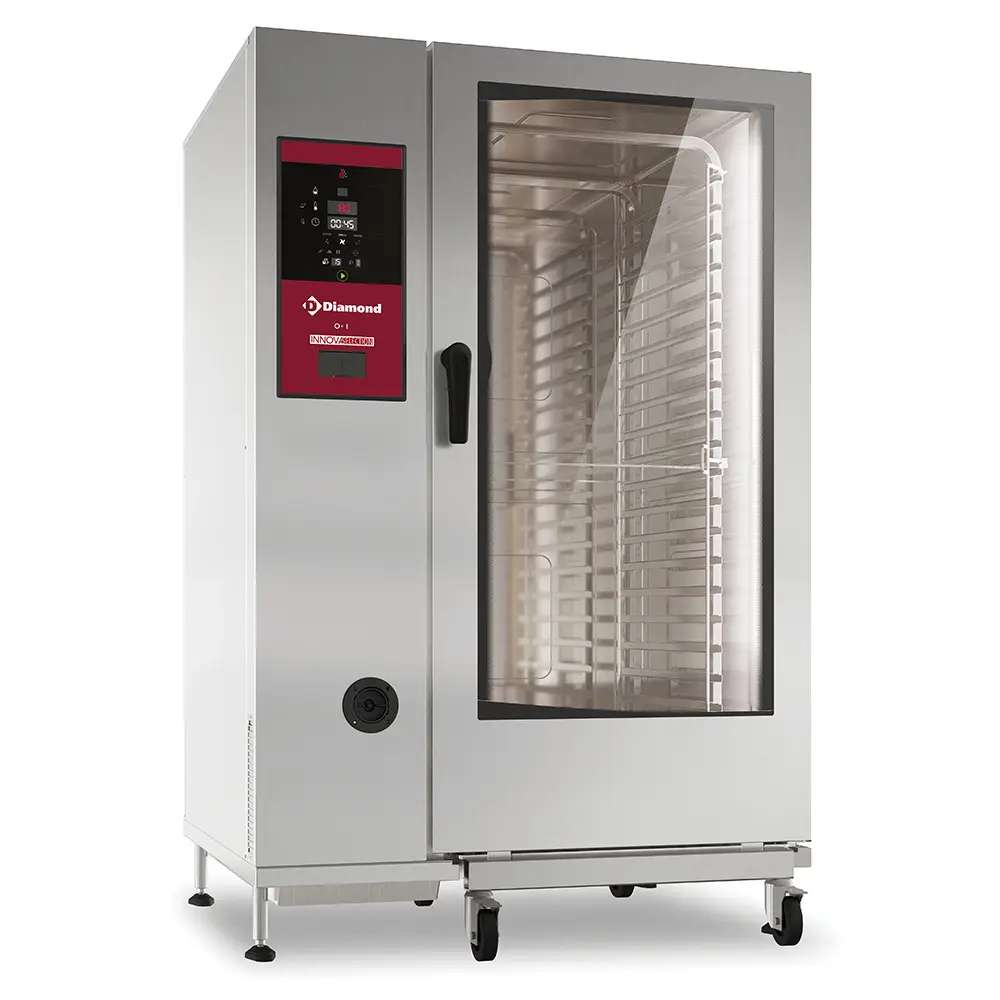

Diamond SDG/XC-22 Gas Direct Steam Convection Oven, 2.5kW
£27,608.00
+vat
RRP: £49,300.00
Size:
Capacity:
- Oven for loading GN 2/1 ( or GN 1/1) plates
- Load capacity 200 Kg
- 1 transfer cart and 1 detachable loader with 63 mm pitch “anti-tip”.
- Core temperature probe.
- Cart & charger 600×400 EURONORM (on request ref: AC/2P2…)
- Bottom closing plate integrated in the door
- Adjustable stainless steel feet
- NB: delivered without grids and GN plates.
- Interior and external made in stainless steel AISI 304, ceramic insulation made in thermo fibre, feet made in stainless steel
- Cooking chamber: entirely welded, total sealing, corners and angles rounded without asperities
- Gasket fixed on the front face of cooking chamber
- Pressing Fund which collects condensation towards the discharge
- Structure carries easily removable platinum
- diffusers of heat Easily dismountable
- Motorized Oura largely dimensioned allowing all cooking’s
- Lighting on side allowing a comprehensive view of the cooking chamber
- The design of the cooking chamber coupled to a side ventilator made in stainless steel AISI 304 (CCRR), guarantees a management and a uniform distribution and of heat.
- Doors double glazing: ergonomic and athermic handle, automatic closing with safety avoiding all accidental openings, recuperator of condensation integrated in the door, glazes interior rise on hinges, facilitating cleaning guaranteeing a perfect hygiene
- A circulation of air enters the panes guaranteed a better thermo isolation
- Micro switch for the stopping of the ventilator at the time of the opening
- Gas heating: by pulsed burners and grooved heat exchangers (increase efficiency and save up to 20% of gas consumption and 20% of harmful emissions), steam by nebulizer
- Control panel (thermostat from 25° to 300°C
- Timer from 1min to 8h, …) with digital display: clear and logical design, frontal accessibility, facility and speed for the SAV, protection indicator IPX5 (against water jets).
Measures and Content
Dimensions
External Dimension (WxDxH): W1162 x D1066 x H1794
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SDG/XC-22 Gas Direct Steam Convection Oven, 2.5kW then please get in touch.
