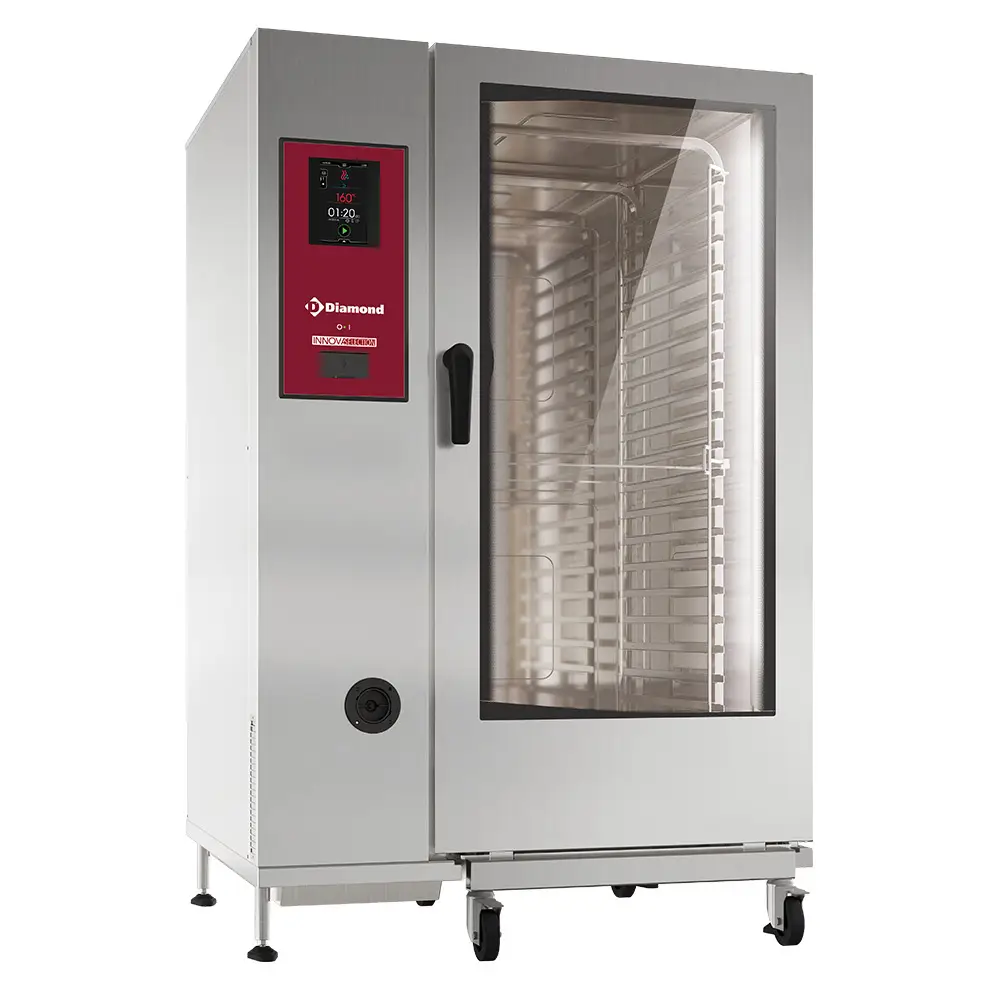

Diamond SDET/XC-22-230V/3- Electric Boiler Steam Convection Oven, 65.4kW
£27,541.92
+vat
RRP: £49,182.00
Size:
Capacity:
- Oven payload plates GN 2/1 (or GN 1/1).
- Load capacity 200 Kg.
- 1 transfer cart and 1 detachable loader less than 65 mm “anti-tipping”.
- Core temperature probe.
- Cart & charger 600×400 EURONORM (on request ref: AC/2P2…)
- Bottom closing plate integrated in the door
- Adjustable stainless steel feet
- NB: delivered without grids and without GN plates.
- Internal and external construction in stainless steel AISI 304, thermal insulation in ceramic fibre, control panel with stainless steel filter, preventing soiling of the components (ventilated panel), stainless steel feet
- Cooking chamber: fully welded, completely watertight, rounded corners and angles without asperities
- Sealing gasket fixed on the front of the cooking chamber
- Double-drawn bottom that separates condensation from grease towards the discharge
- Easily removable platinum door structure
- Easily removable heat diffusers
- Large motorized Oura allowing all cooking operations.
- Double-glazed door: ergonomic and athermic handle, automatic closing with safety device to prevent accidental opening, condensate recuperator integrated in the door, hinged inner glass for easy cleaning and perfect hygiene
- Air circulation between the panes of glass guarantees better thermal insulation
- Micro-switch to stop the fan when opening
- Side LED lighting for a global view of the enclosure
- Electric heating: by stainless steel circular heating elements placed behind the fan deflectors, steam by nebulizer
- 7″ “TOUCH SCREEN” control panel with front access, quick and easy after-sales service, IPx5 protection class (against water jets from the lance).
Measures and Content
Dimensions
External Dimension (WxDxH): W1162 x D1066 x H1794
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SDET/XC-22-230V/3- Electric Boiler Steam Convection Oven, 65.4kW then please get in touch.
01922 926123
