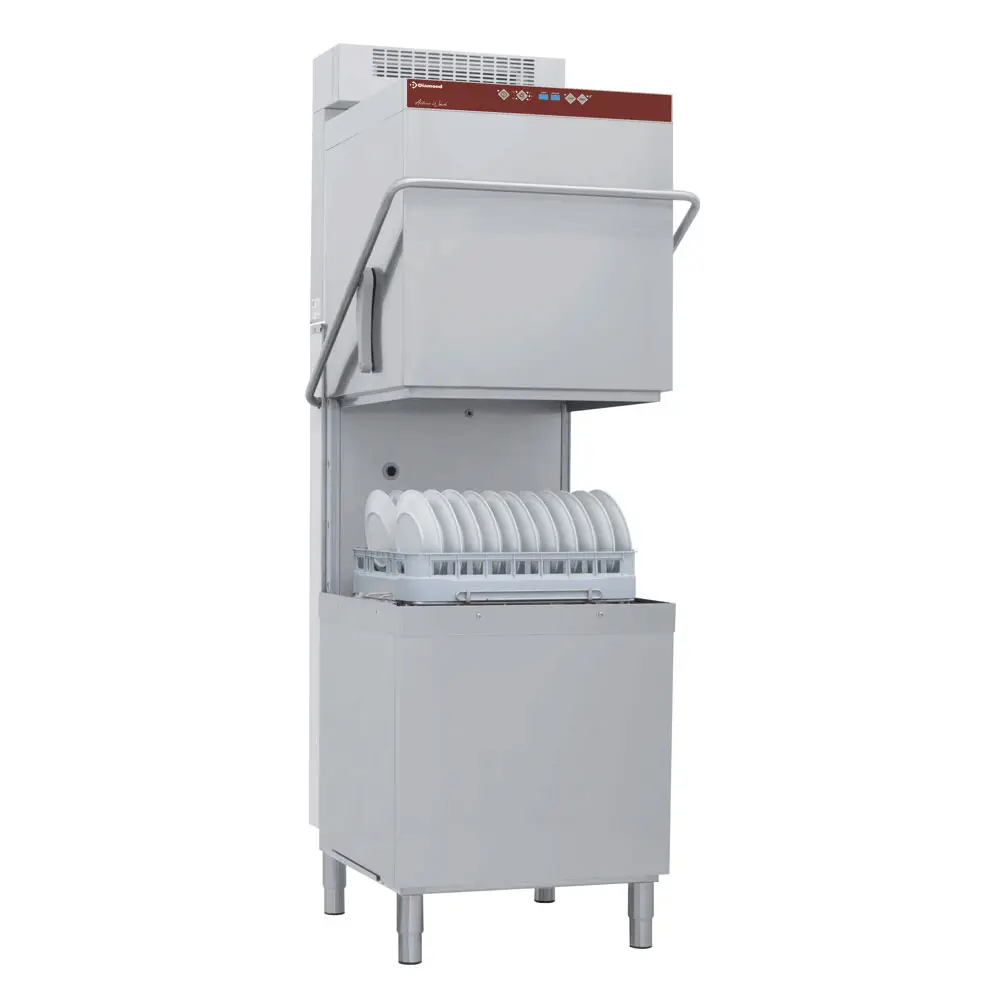

Diamond DCR49/6-AC-RC Passthrough Hood Dishwasher & Pot Washer with Integral Softener & Condenser, 24 Baskets per Hour
£8,807.68
+vat
RRP: £15,728.00
Size:
Capacity:
- Integration of the “Green System H.R.S.” Condenser vapor-recovery unit, big energy savings (ATTENTION: connection to cold water)
- Watersofterner continuously, incorporated
- (ATTENTION: connection to cold water)
- Height of load Ø 465 mm
- Realisation “double walled”
- with thermic insulation.
- From 60 to 24 baskets/hour, PLD cycles 60″, 120″, 150″ or continuous.
- 3 phases: wash, unload, rinse.
- Water consumption per cycle 3 liters.
- Standard discharge pump.
- Standard rinse pump (atmospheric boiler)
- Control panel at the top of the hood, digital display.
- Basket 600×500 mm, capacity 22 plates, dishes 600×400 (see accessories), beer baskets 600×400 to 135 Lt, always the possibility of using 500×500 mm baskets
- Device opening and closing cover on connecting rods.
- Build: double skinned entirely in stainless steel AISI 304
- Wash and rinse arms, upper and lower, rotating, lower in “molded” stainless steel, upper in “molded” polypropylene
- Self cleaning sprinklers in stainless steel
- Entirely stamped tank (2,5 kW)
- “Integral” filter tank, in “molded” stainless steel
- Pipes located outside the wash chamber
- Stamped walls
- Double filter of the pump in polypropylene
- Removable control panel for easy maintenance
- Adjustable feet (160-220 mm).
- Function automatic water discharge tank, integrated in the control panel (no need to remove the plug manually)
- Automatic tank fill
- Anti-return valve
- Hot water rinse, stainless steel boiler
- Tank and boiler temperature regulator
- Micro switch for ending cycle at opening of hood
- Security thermostat
- Standard : 1 basket 22 plates, 1 general basket, 1 goblet, connection tube to main water supply and discharge tube.
Measures and Content
Dimensions
External Dimension (WxDxH): W788 x D835 x H2265
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DCR49/6-AC-RC Passthrough Hood Dishwasher & Pot Washer with Integral Softener & Condenser, 24 Baskets per Hour then please get in touch.
