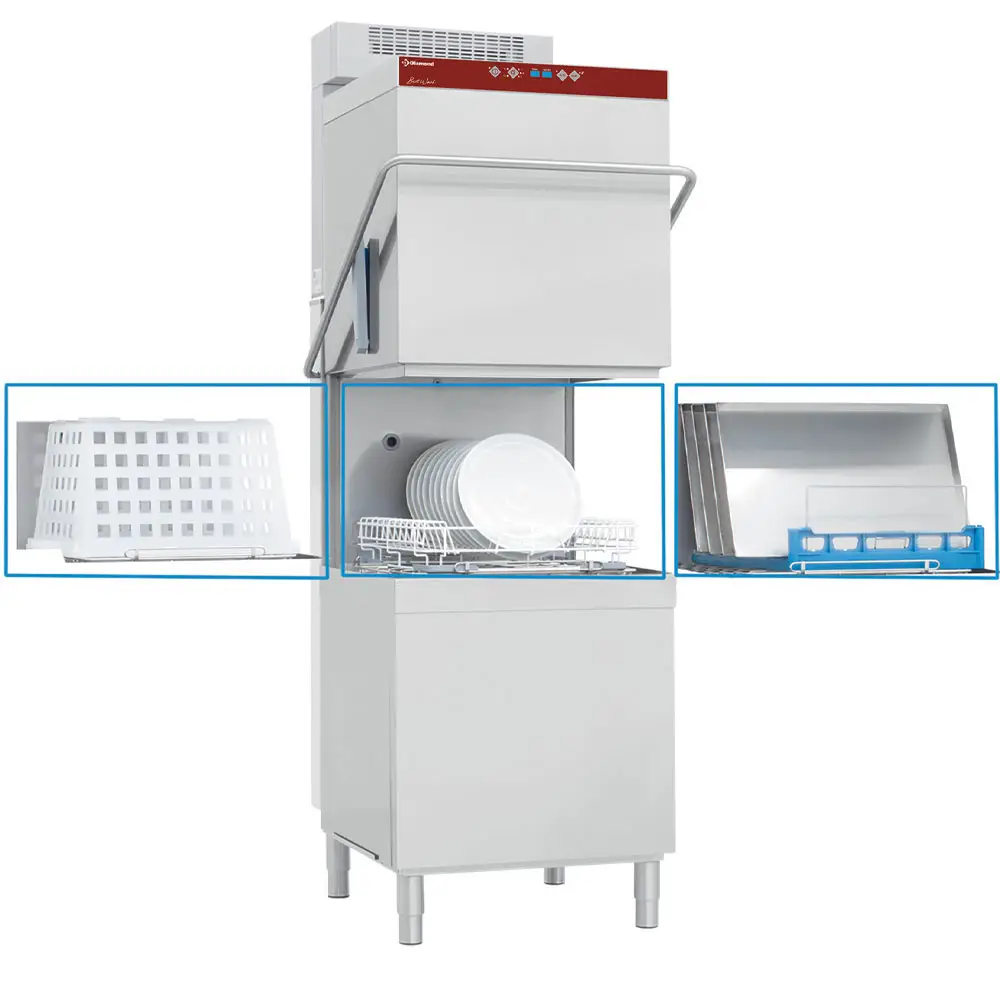

Diamond DCR37/6-AC-RC Passthrough Hood Dishwasher with Integral Softener & Condenser
£8,411.20
+vat
RRP: £15,020.00
Size:
Capacity:
- Realization in “double walls” with thermal insulation
- Integration of the “Green System H.R.S
- Condenser-recovery of vapors, great energy saving (ATTENTION: connection to cold water)
- Continuous water softener, incorporated (ATTENTION: connection to cold water)
- Loading height 465 mm
- Standard flush pump (atmospheric boiler).
- Control panel on top of the cover, digital display
- Basket 600×500 mm, capacity 22 plates, plates 600×400 (see accessory), beer baskets 600×400 up to 135 Lt, still possible to use baskets 500×500 mm
- 3 cycles: 60”-110”-150” or continuous.
- Device to open and close the cover on rods
- Vertical washing pump (double flow), self-draining and self-cleaning
- Automatic water discharge function in the tank, integrated in the control panel (no need to remove the bung manually).
- Rotating washing and rinsing arms (upper and lower) (all in stainless steel).
- Self-cleaning nozzles.
- Adjustable stainless steel feet (160-220 mm)
- Control panel on the front.
- Automatic tank filling.
- Non-return valve (all in stainless steel).
- Hot water rinse (water consumption per cycle 3 liters), stainless steel boiler (12 Lit., 8kW).
- Micro switch at the opening of the cover.
- Safety thermostat.
- Made of stainless steel AISI 304.
- Equipped with 1 basket of 22 plates, 1 generic basket, 1 cutlery compartment, water connection and discharge tube.
Measures and Content
Dimensions
External Dimension (WxDxH): W788 x D835 x H2265
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DCR37/6-AC-RC Passthrough Hood Dishwasher with Integral Softener & Condenser then please get in touch.
01922 926123
