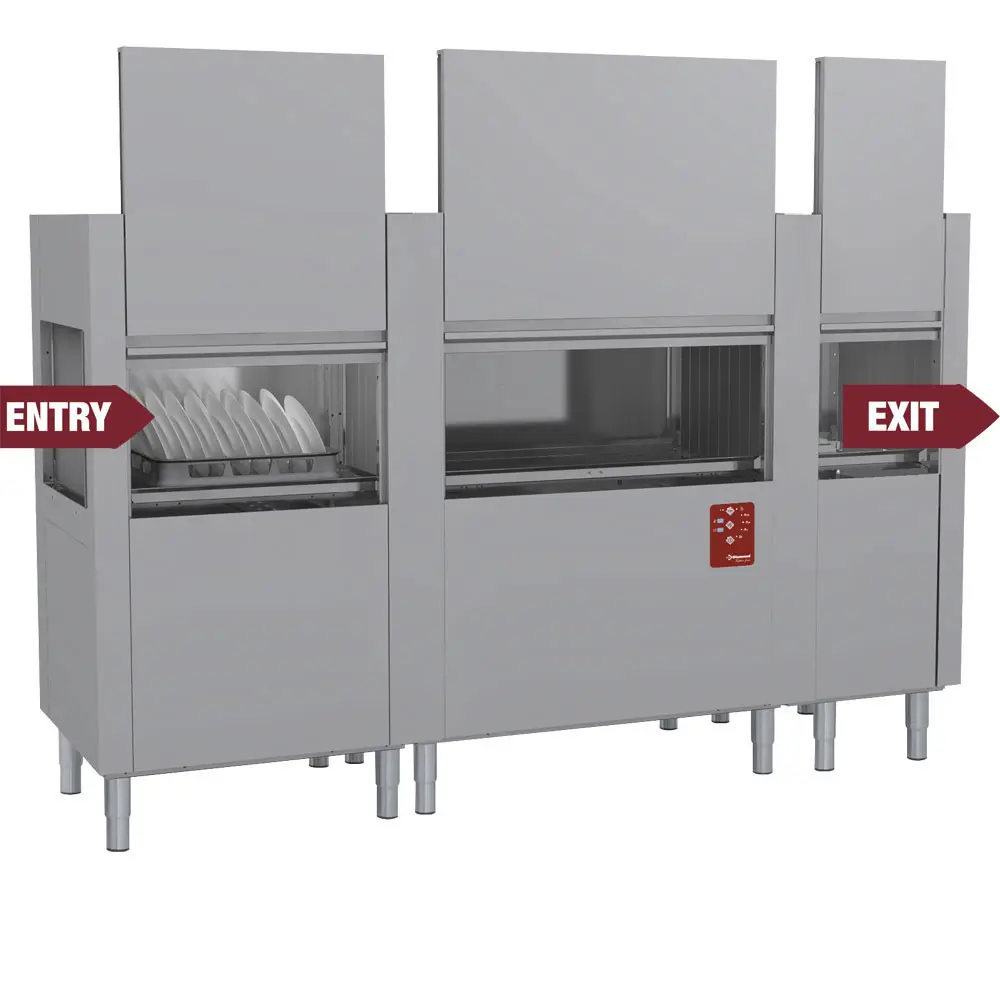

Diamond DATIC37E/7 Rack Conveyor Dishwasher, 270 Baskets per Hour
£22,574.72 +vat
+vat
RRP: £40,312.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- AISI 304 stainless steel finish, between 12/10 mm and 30/10 mm thick, double cavity for better thermal and acoustic insulation (-60dB)
- Adjustable stainless steel feet.
- Linear or angular implantations with left and right entries.
- Traction system with parallel stainless steel bars.
- Automatic advance system with 3 speeds.
- Ability to perform a continuous, basket-by-basket or delayed
- “Reversible” traction system, right left entry.
- Counter balanced wide opening doors with stop in open position, for easy access to machine.
- Entry and exit water curtains (included).
- Pressed tank with rounded edges, resistant equipped for maintenance of high temperatures.
- Integrated, extractable filters, made in AISI 304 stainless steel, situated above tanks.
- Automatic revaluation of tank water levels.
- Rinse saver, saves water and rinse.
- Dismountable stainless steel wash and rinse arm,
- Wash and pre-wash pump, in inclined position “auto empty” with
- Water entry equipped with pressure reduction system (included)
- Stainless steel boiler, with thermal insulation.
- 90°C thermostat control.
- “Thermocontrol” that insures a rinse at 85°C.
- Waterproof “soft touch” digital command panel, with tank and boiler temperature display, malfunctions auto diagnosed.”Soft Control”.
- Serial ports, protected by steel cover, for optional equipment connections
- (included)
- Low tension command (24V)
- Security thermostat for boiler temperature 110° C.
- End of cycle system stop (included)
- Micro stop switch for instant stop of doors.
- Protected elements.
- Pump protection.
- Traction system also protected by automatic stop, if intruding objects are detected.
Measures and Content
Dimensions
External Dimension (WxDxH): W2519 x D770 x H1615
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DATIC37E/7 Rack Conveyor Dishwasher, 270 Baskets per Hour then please get in touch.
