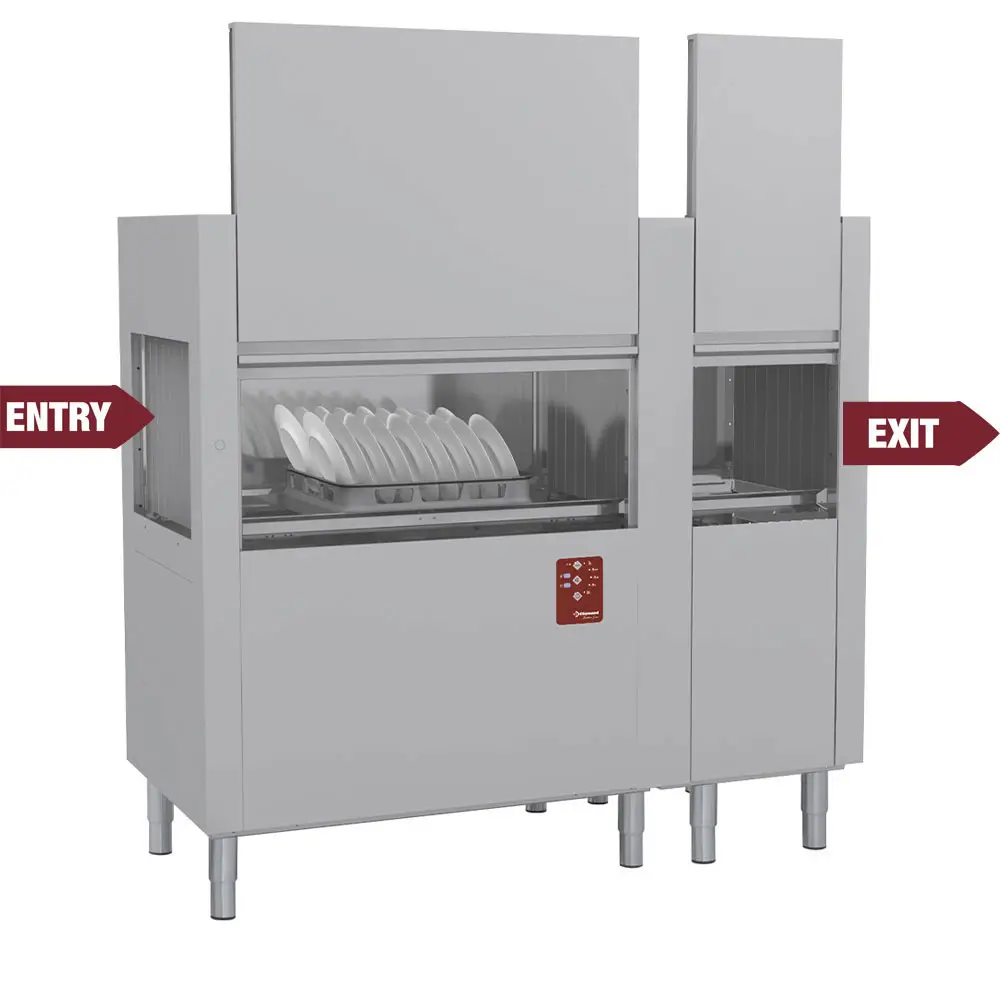

Diamond DATIC20E/7 Rack Conveyor Dishwasher, 200 Baskets per Hour
£16,472.96
+vat
RRP: £29,416.00
Size:
Capacity:
- Production capacity 200 baskets/hour
- Washing + rinsing
- 3 forward speeds
- Predisposed for left-hand entry
- Load height 440 mm
- Anti-pollution device type AB “Break Tank”
- Flushing pump as standard (atmospheric boiler).
- Made of AISI 304 stainless steel, between 12/10 mm and
- 30/10 mm thick, double-walled for better insulation
- thermal and acoustic (- 60 db), adjustable stainless steel feet.
- Linear or angular layout with left or right input.
- Traction system with parallel bars made of steel
- Automatic advancement of the trays.
- Possibility to work continuously or basket by basket, washing
- Wide doors, easy opening, thanks to the “counterbalanced” system, equipped with a stop in open position, for access to the inside of the machine.
- Water curtains at the inlet and outlet (standard)
- Deep-drawn tanks, rounded corners, with resistors for temperature maintenance.
- Integral extractable filters, in stainless steel AISI 304, above
- Automatic levelling of water in the tanks.
- Rinsing saver to reduce the consumption of water and rinsing agent
- Stainless steel washing and rinsing arms, removable and interchangeable without tools.
- Washing, pre-washing and rinsing pump (double flow), placed in inclined position “self draining”, equipped with a stainless steel filter.
- Boiler in stainless steel, with thermal insulation.
- Thermostat to control the boiler temperature at 90°C.
- “Thermocontrol” device ensuring rinsing at a temperature of 85°C.
- Digital “soft touch” control panel, waterproof with display of tank and boiler temperature, self-diagnosis in case of anomalies.
- Built-in USB port (on the electronic board)
Measures and Content
Dimensions
External Dimension (WxDxH): W1700 x D770 x H1615
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DATIC20E/7 Rack Conveyor Dishwasher, 200 Baskets per Hour then please get in touch.
