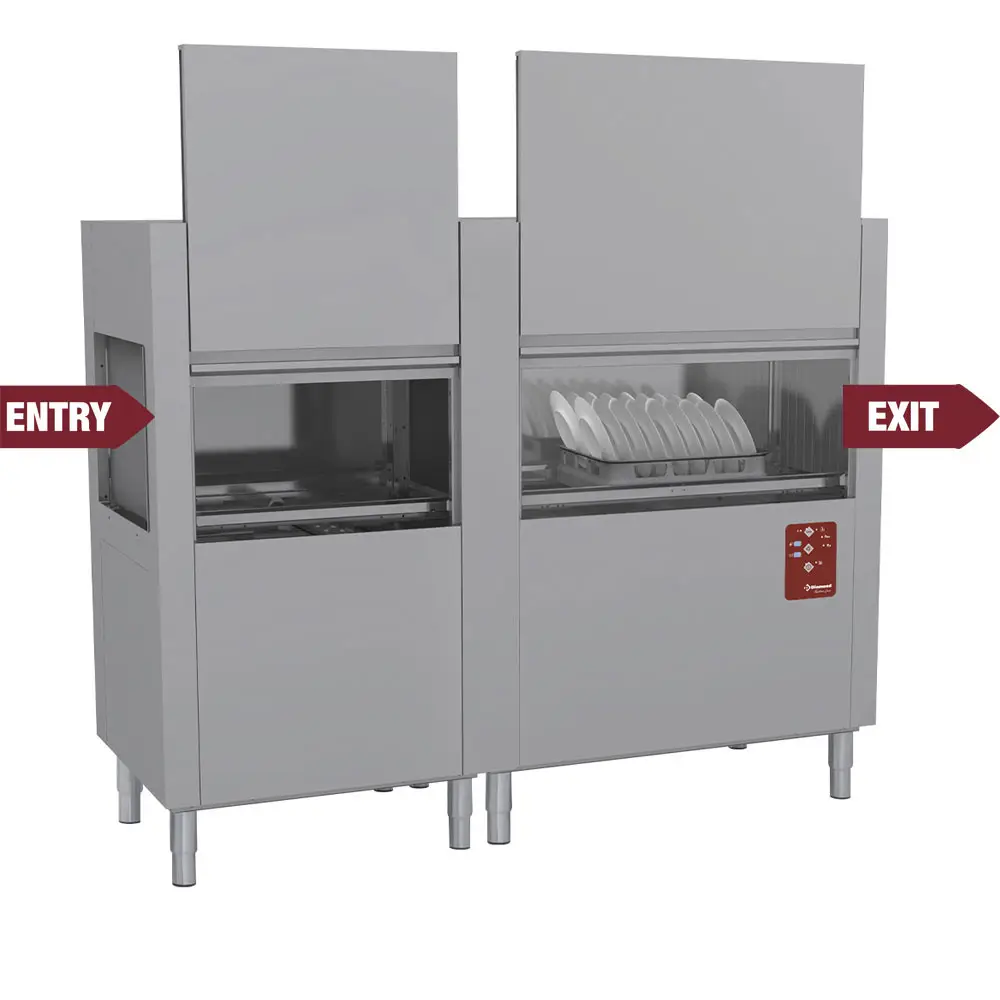

Diamond D160E/7 Rack Conveyor Dishwasher, 200 Baskets per Hour
£17,083.36
+vat
RRP: £30,506.00
Size:
Capacity:
- Production capacity 200 baskets/hour
- Pre-wash + Washing + rinsing
- 2 forward speeds
- Predisposed for left-hand entry
- Load height 440 mm
- Water pressure reducer, equipped with pressure gauge.
- Made in AISI 304 Stainless Steel, of 12/10mm and 30/10mm thick, double skin thermal and acoustic insulation (-60db) with adjustable stainless steel feet.
- Linear or angular configuration with left and right entry/feed tables
- Traction system with parallel stainless steel bars.
- Automatic advance system with 3 speeds.
- Ability to perform a continuous, basket-by-basket or delayed wash.
- “Reversible” traction system, right left entry.
- Counter balanced wide opening doors with stop in open position, for easy access to machine interior.
- Entry and exit water curtains.
- Pressed tank with rounded edges, resistant equipped for maintenance of high temperatures.
- Integrated, extractable filters, made in AISI 304 stainless steel situated above tanks.
- Automatic refill of tank water levels.
- Rinse Saver, reduces water and rinse aid consumption.
- Demountable stainless steel wash and rinse arm serviceable without the use of tools.
- Wash and pre-wash pump, in inclined position “auto empty” with stainless steel filter.
- Water entry equipped with pressure reduction system.
- Stainless steel boiler, with thermal insulation.
- 90°C thermostatic control.
- Waterproof “soft touch” digital control panel with tank and boiler temperature display, malfunctions automatically diagnosed.
Measures and Content
Dimensions
External Dimension (WxDxH): W1968 x D770 x H1615
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond D160E/7 Rack Conveyor Dishwasher, 200 Baskets per Hour then please get in touch.
