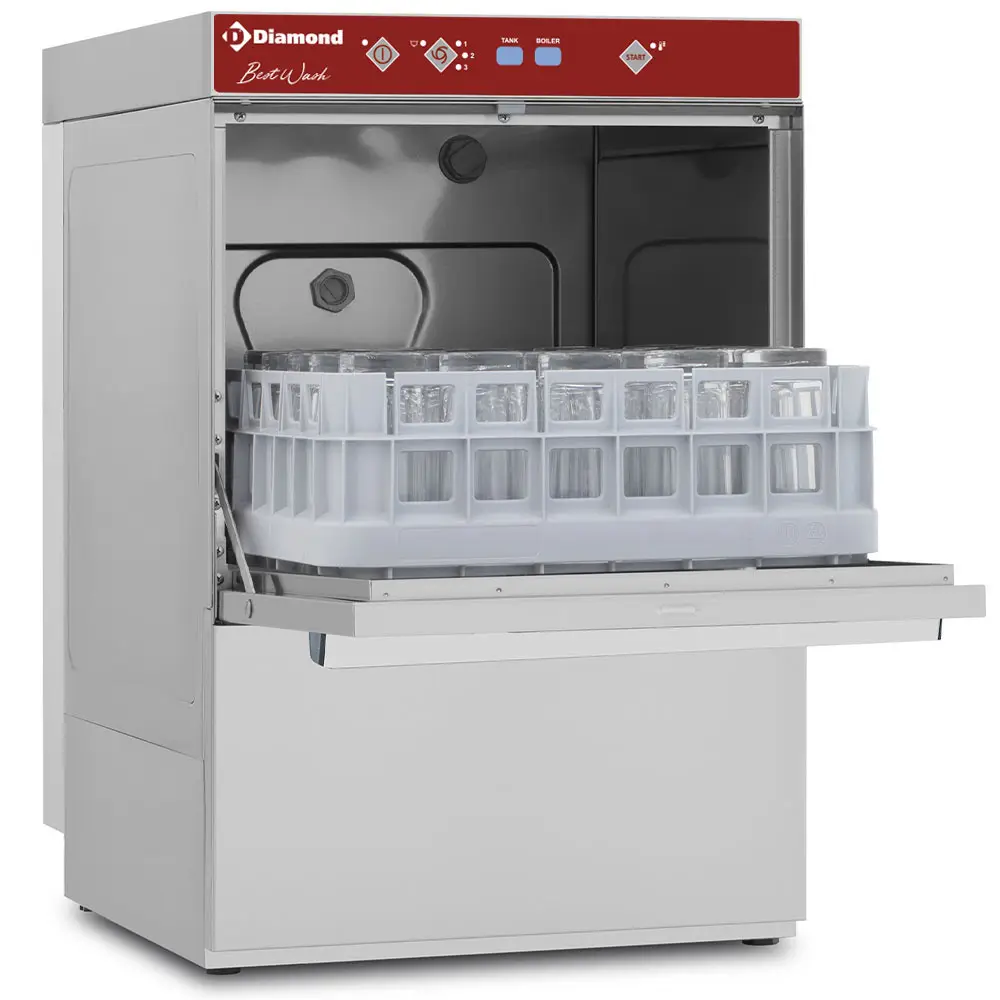

Diamond DGS8/6 400mm Basket Frontloading Glasswasher, 16 Pint Capacity

Made of stainless steel AISI 304. Rotating washing and rinsing arms (upper and lower). Self-cleaning nozzles. Tank with rounded edges (8 lt – 0,6 kW). Stamped basket slides, no roughness and no limestone incrustation. Integral filter in “Composit” tank. Patented” pump filter to keep the washing water longer and at the right temperature. Double-walled door. Adjustable cylinders. Removable control panel for easy after-sales service.

Automatic water discharge function integrated in the control panel (no need to remove the bung manually). Automatic tank filling. Non-return valve. Hot water rinse (water consumption per cycle 2 liters), stainless steel boiler (2.6 lt – 2.6 kW). Possibility to regulate the temperature of the tank and the boiler. High efficiency washing pump (double flow) guaranteeing significant energy savings. Microswitch to stop the cycle when the door is opened. Safety thermostat. Included: 2 baskets, 1 “saucer” support, 1 cup, water connection and discharge pipes.

• Glass loading height 300 mm
• From 60 to 24 baskets/hour, PLD cycles 60″, 120″, 150″
• 3 phases: washing, unloading, rinsing
• Drain pump as standard
• Rinsing pump as standard (atmospheric boiler)
