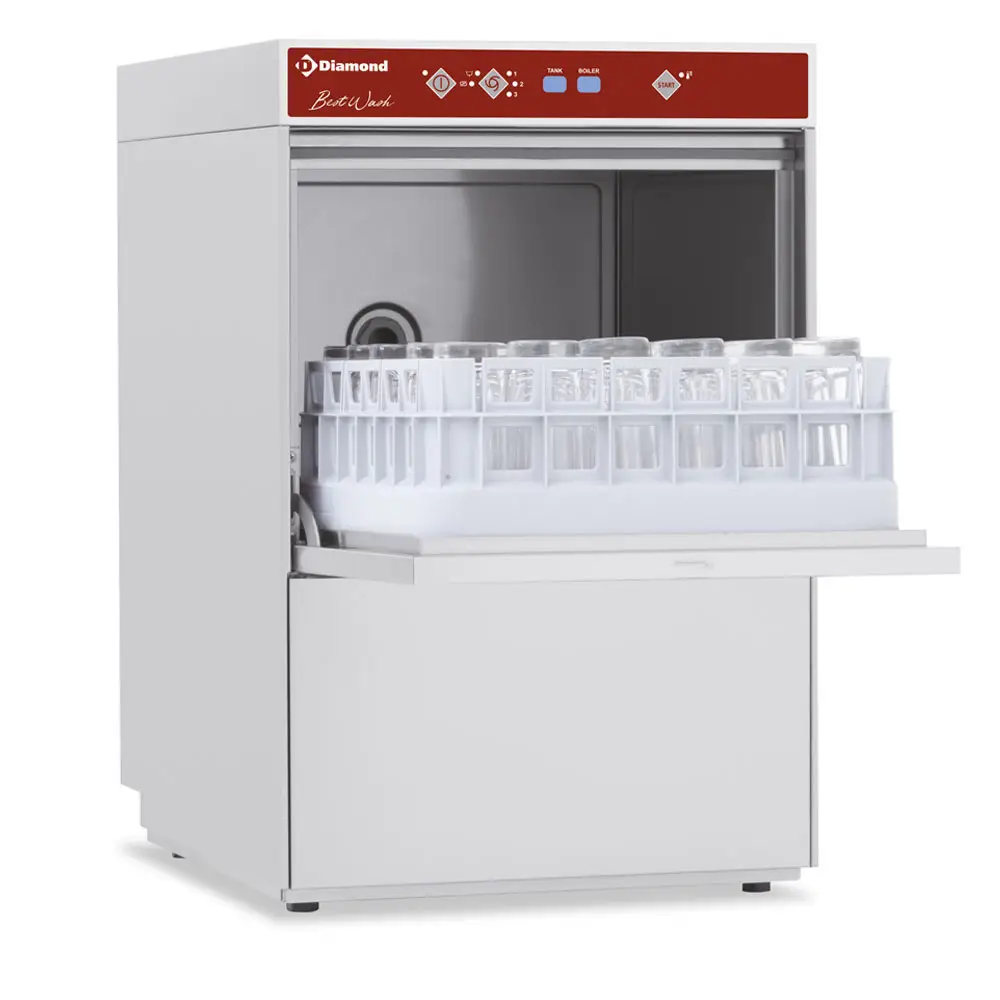

Diamond DBS5/6-AC 400mm Basket Frontloading Glasswasher with Integral Softener, 24 Baskets/hour
£2,375.52
+vat
RRP: £4,242.00
Size:
Capacity:
- Built-in continuous water softener (ATTENTION: cold water connection).
- Glass loading height 300 mm.
- From 60 to 24 baskets/hour, PLD cycle 60″, 120″, 150″ .
- 3 phases: wash, unload, rinse.
- Standard discharge pump.
- Standard rinse pump (atmospheric boiler).
- Realization: in double walls entirely in stainless steel AISI 304
- Washing and rinsing arms (upper and lower), rotating, (lower in stainless steel)
- Self-cleaning stainless steel nozzles
- Fully deep-drawn tank (8 lt – 0,6 kW)
- Stamped basket slides, no unevenness and no limestone incrustation
- Filter in “integral” vat, in “moulded” stainless steel
- Patented” pump filter to keep the washing water longer and at the right temperature
- Double-walled pressed door
- Removable door seal
- Pressed handle
- Adjustable cylinders
- Removable control panel for easy after-sales service.
- Automatic tank water discharge function
- Integrated in the control panel (no more need to remove the bung manually)
- Automatic tank filling
- Non-return valve
- Hot water rinse (water consumption per cycle 2 liters)
- Stainless steel boiler (2.6 lt – 2.6 kW)
- Possibility to regulate the temperature of the tank and the boiler
- High-efficiency washing pump (double flow) guaranteeing significant energy savings
- Microswitch to stop the cycle when the door is opened
- Safety thermostat
- 2 baskets, 1 ” under-cup ” support
- 1 cup, water connection and discharge pipes.
Measures and Content
Dimensions
External Dimension (WxDxH): W465 x D550 x H710
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DBS5/6-AC 400mm Basket Frontloading Glasswasher with Integral Softener, 24 Baskets/hour then please get in touch.
01922 926123
