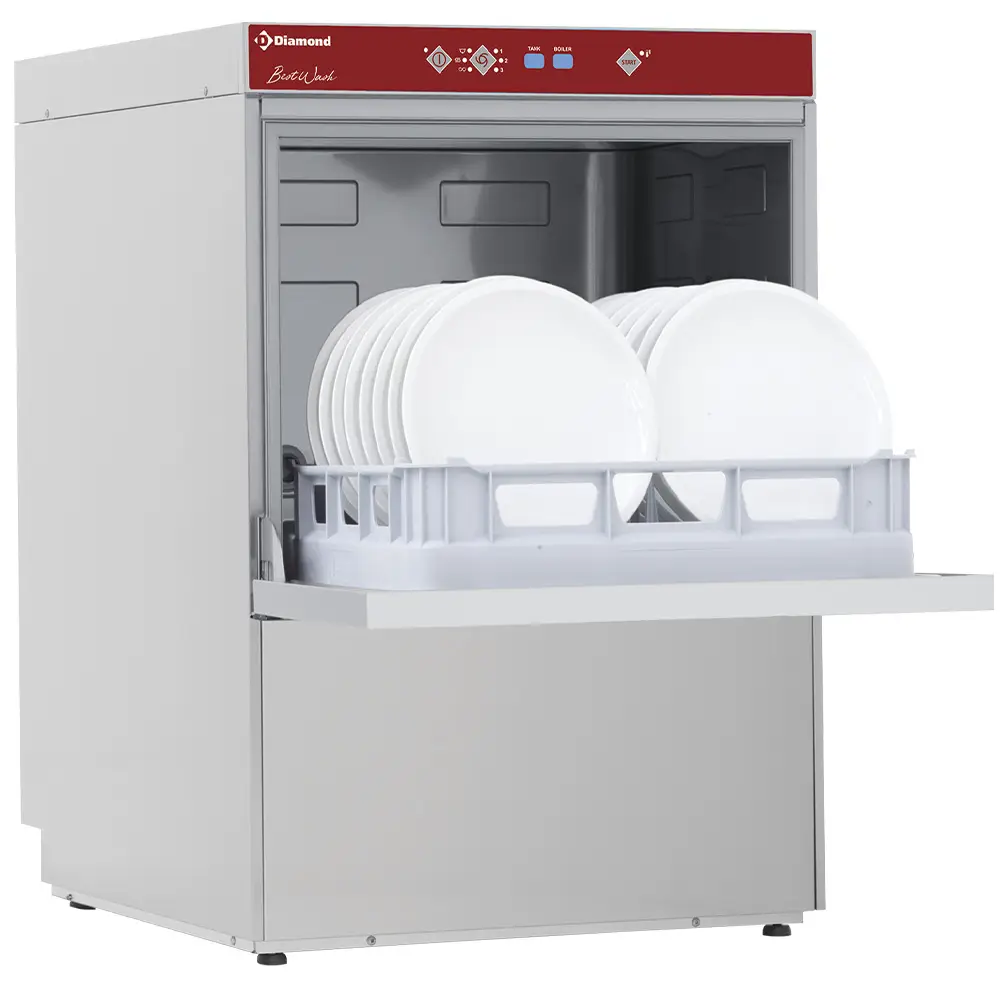

Diamond 04D/6S Dishwasher and Pot & Utensil Washer, 24 Baskets/hour
£3,493.28 +vat
+vat
RRP: £6,238.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Low version, installation option under sinks and cupboards etc….
- “Double-walled” Version
- With anti-pollution device, AB type (Break Tank), including rinse pump (atmospheric boiler)
- Load height 405 mm
- Plate height 380 mm
- 3 stages: washing, discharge, rinse
- Drain pump, standard
- Rinse pump, standard (atmospheric boiler)
- Double-walled version completely in stainless steel AISI 304
- From 60 till 24 baskets/hour, cycles 60” – 120” – 150″ or continuous – Rotating wash and rinse arms (upper and lower), lower in stainless steel – Self-cleaning jets -Tank (23 Lt., 2,1 kW) with rounded edges, “stamped” bottom – Stamped basket runners, no roughness and no limescale
- “Integral” tank filter in “cast” stainless steel -“patented” filter pump allows to keep the wash water cleaner and at the right temperature
- “Stamped” double walled door, “removable” gasket, stamped handle
- Removable control panel, easy after-sales-service.
- Automatic discharge function of the water tank, integrated in control panel (not necessary anymore to remove manually the plug)
- Automatic filling of the tank
- Check valve – Hot water rinse (2,5 Lt
- water consumption per cycle), stainless steel boiler (with pressure, 7 Lit., 6/8 kW) – Possibility of regulation of tank and boiler temperature – Washing pump (double flux), which guarantees important energy savings, with “Soft start” device – Micro switch, when the door opens
- Safety thermostat
- Standard : 2 baskets, 1 basket for plates 500×600, 1 basket 500×500, 1 cup NB inclined structure, for desks (on request)
Measures and Content
Dimensions
External Dimension (WxDxH): W600 x D695 x H850
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond 04D/6S Dishwasher and Pot & Utensil Washer, 24 Baskets/hour then please get in touch.
01922 926123
