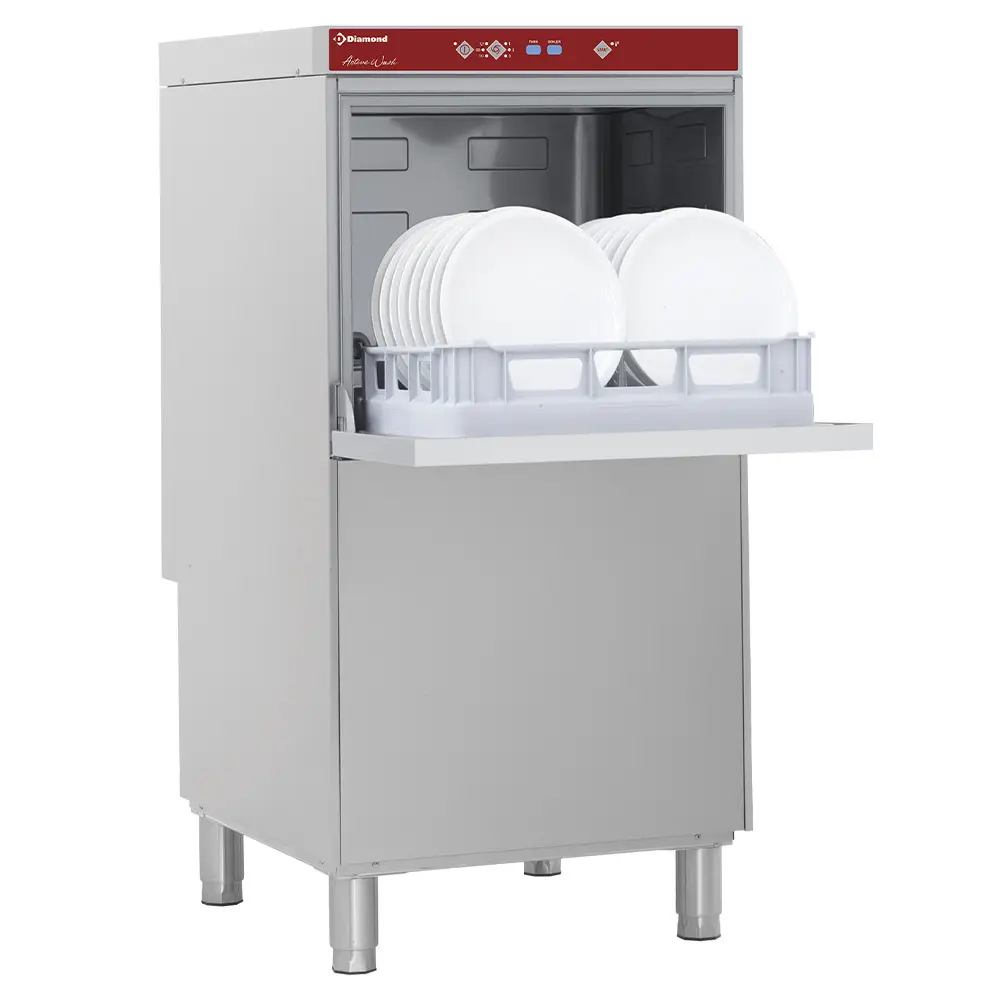

Diamond 03D/6H Dishwasher and Pot & Utensil Washer, 24 Baskets/hour
£3,237.92
+vat
RRP: £5,782.00
Size:
Capacity:
- High version, easier loading / unloading of baskets,…
- “Double-walled” Standard version
- Load height 405 mm
- plate height 380 mm
- From 60 till 24 baskets/hour, cycles 60” – 120” – 150″ or continuous
- Rotating wash and rinse arms (upper and lower), lower in stainless steel
- Self-cleaning jets
- Tank (23 Lt., 2,1 kW) with rounded edges, “stamped” bottom
- “Stamped” double walled door, “removable” gasket
- Removable control panel
- Automatic filling of the tank
- Check valve
- Hot water rinse (2,5 Lt
- water consumption per cycle), stainless steel boiler (with pressure, 7 Lit., 6/8 kW)
- Washing pump, self-draining and self-cleaning, 230V/1N 50Hz.
- Micro switch, when the door opens.
- Safety thermostat.
- Standard version: stainless steel AISI 304
- Standard : 1 basket for plates 500×600, 1 basket 500×500, 1 cup
Measures and Content
Dimensions
External Dimension (WxDxH): W600 x D695 x H1280
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond 03D/6H Dishwasher and Pot & Utensil Washer, 24 Baskets/hour then please get in touch.
01922 926123
