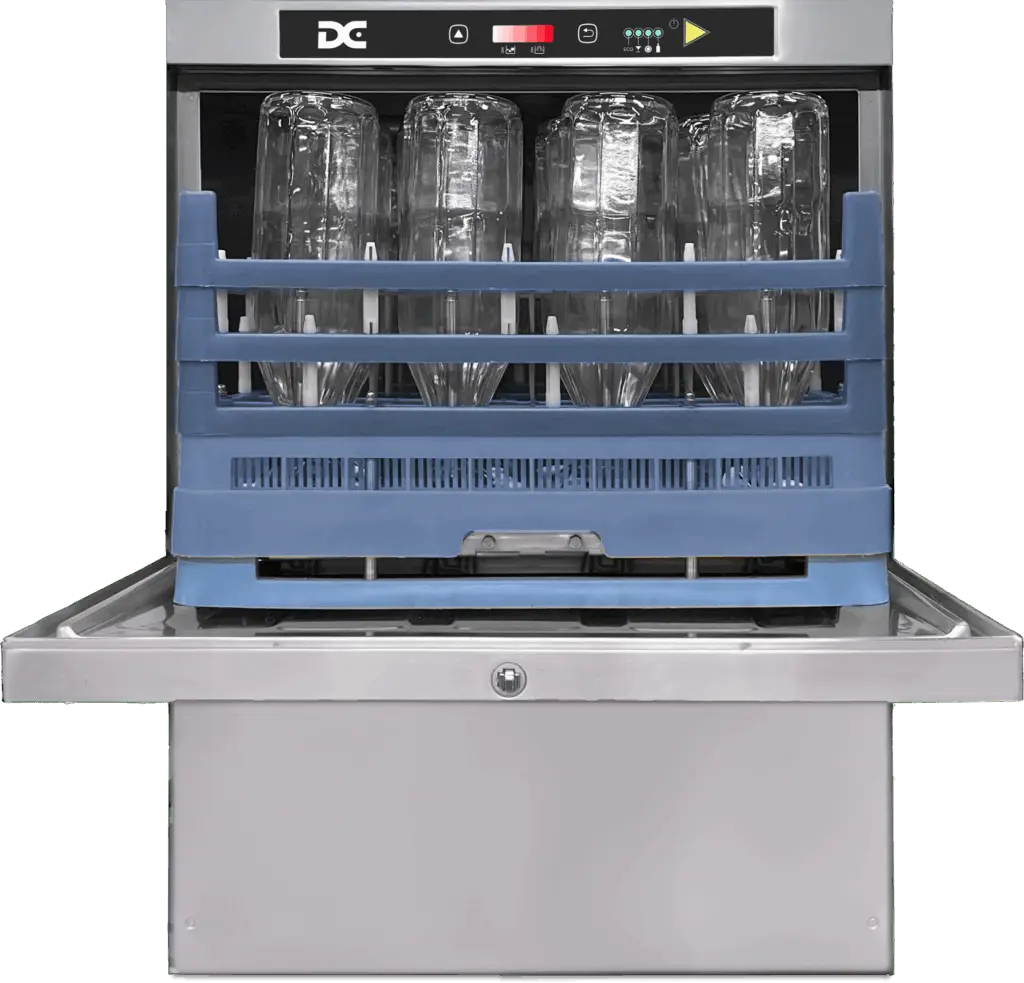

DC BW50AD Multipurpose Bottle Washer

Multipurpose bottle washer capable of washing bottles, plates, glasses or utensils.

Turn this bottle washer into a standard dishwasher or glasswasher by simply replacing the specialist bottle rack with standard cup, dish or glass racks. The machine automatically recognises when the bottle rack is in place and adjusts the hydraulic circuit accordingly, without the need for any further user intervention.

16 bottle capacity. Bottle interior is washed using a fully stainless-steel water pipe at up to 85°C. Soft-start cycle helps prevents heat shock to delicate glass ware. Four cycles available, cycle progress and colour coded status indicators to support operators. Comes with three 500 x 500mm baskets – one bottle, one jug and one plate.

Can be used as a glasswasher or dishwasher.

Controls

• Quick parameter access and setting for certified engineers
• Display with temperature indicators
• Four programming options for washing cycles – Eco fast, Glasses, Dishes, Bottle/Jugs
• Cycle and performance counter help plan maintenance
• Colour coded status indicators

Construction

• Single skin body in AISI 304
• Moulded double skin insulated door
• Rear panelling
• Quick-coupling hook, enabling loading with a single move
• Dedicated nozzles to spray directly into bottles and jugs
• Uniquely designed racks allow for proper spacing and optimum water penetration
• Built-in detergent and rinse-aid dosing pumps
• Racks allow for proper spacing and optimum water

Technology

• Hood activated cycle start and manual cycle start
• Soft Start – cycle starts slowly and gradually increases speed to prevent damaging light items
• Magnetic microswitch stops cycle in case of accidental door opening
• Temperature measurement via electronic probes, providing accuracy and reliability

Hygiene

• Adjustable Thermostop as a standard, ensuring correct operating temperatures are reached
• Multiple filtration system – whole tank filter and pump suction filter
• Self-cleaning cycle at unit switch-off
• Double water blade design boosts contact time and produces brilliantly clean results
• Dedicated racks provide thorough cleaning with rapid evaporation times and enhanced protection
• Efficient solution to clean refillable bottles and jugs
