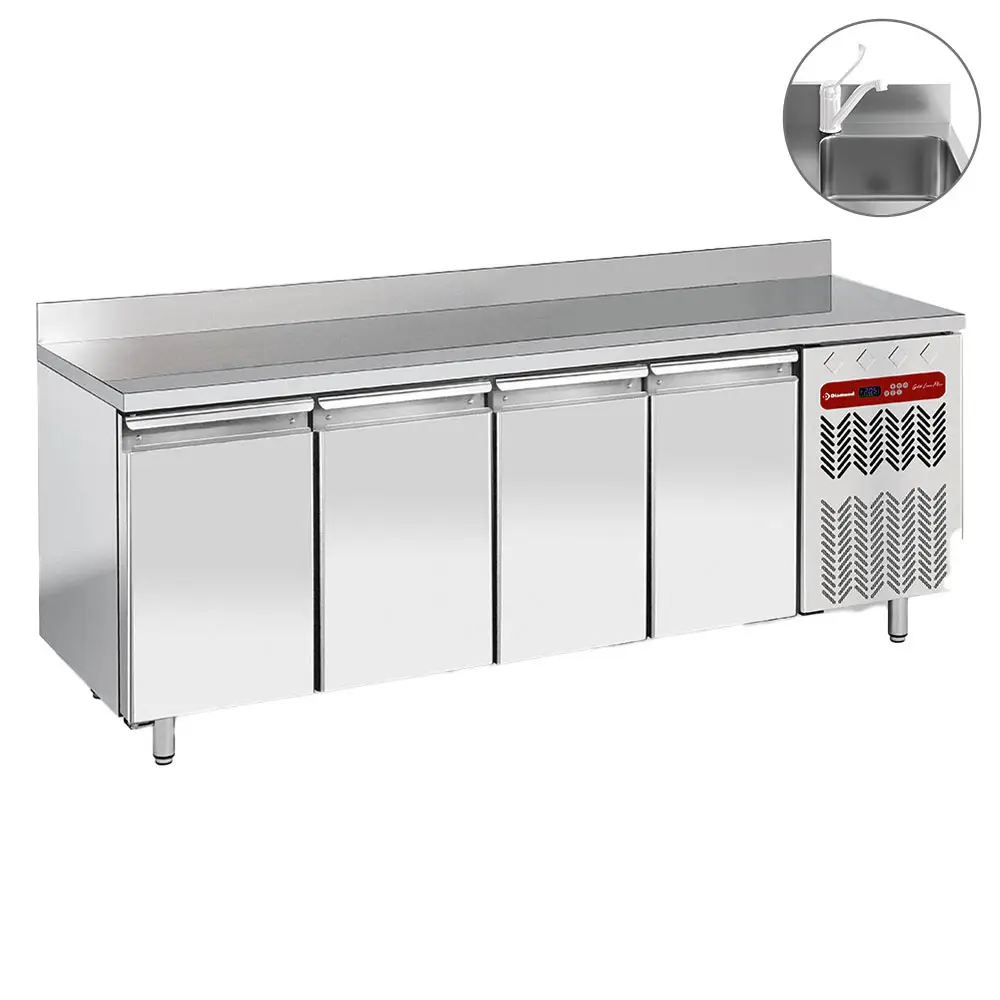

Diamond TG4N/HA-R2EV 4 Door Stainless Steel Refrigerated Counter with Splashback & Sink, 550 Litres
£4,544.96
+vat
RRP: £8,116.00
Size:
Capacity:
- Sink 300x330xh200 mm built into the top (on the right), equipped with a trap, strainer, and overflow drain (NB faucet on request, hole on the top (33 mm)
- “Wall-mounted” version with raised back edge
- Included: 1 GN1/1 grid (530x325mm), per door
- 6 adjustable stainless steel legs.
- Interior and exterior made of food-grade AISI 304 stainless steel, monocoque chassis
- Independent (removable) top made of food-grade AISI 304 stainless steel
- Stainless steel (anti-tilt) racks and slides, allowing for flexible positioning of grids, with stamped interior bottom and rounded angles and corners (smooth surfaces)
- Doors with ergonomic (non-protruding) and reversible handles (see Kit TKDX-H or TKSX-H), closure ensured by “triple-chamber” gasket and “pressure” magnetic seal (easy replacement, no tools required), hinges (frontal attachment) with 100° stop, self-closing feature
- Frontal accessibility to the compressor unit, easy inspection
- Compressor unit in climate class 5 (40°C Temperature – 40% Humidity), built into the cabinet (on the right), ventilated condenser.
- Ventilated (oversized) evaporator (side-mounted), treated against salt and food acids with a “coating,” completely concealed (not visible)
- Refrigerant R290.
- Electronic “digital” microprocessor (in a closed box, 100% waterproof), with HACCP functions, front control screen with blue LED
- Automatic defrosting of the evaporator (hot gas), number of factory-programmed defrost cycles (modifiable as desired)
- Automatic evaporation of condensate (with hot gas)
- CFC-free polyurethane insulation (60 mm)
- Appliance built in compliance with all current CE regulations.
Measures and Content
Dimensions
External Dimension (WxDxH): W2250 x D700 x H900
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond TG4N/HA-R2EV 4 Door Stainless Steel Refrigerated Counter with Splashback & Sink, 550 Litres then please get in touch.
