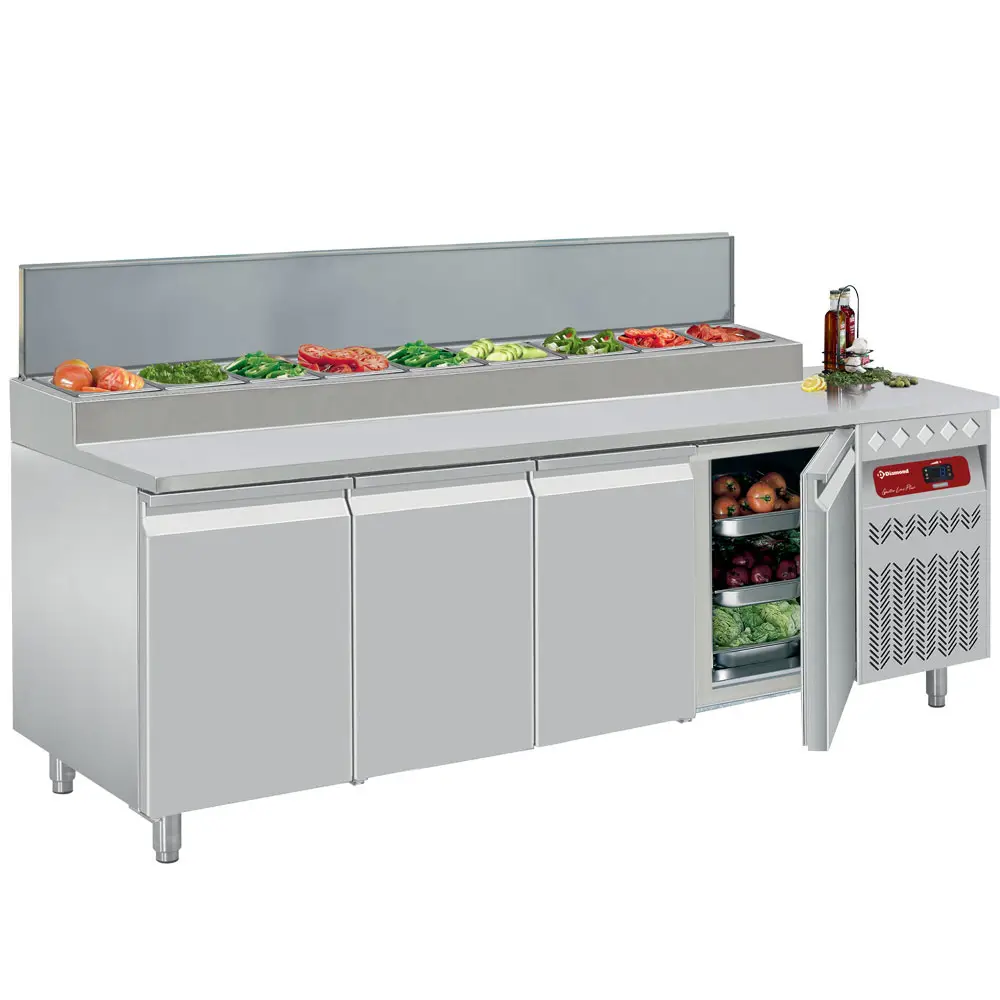

Diamond DTS-10/P9 4 Door Stainless Steel Refrigerated Counter, 550 Litres
£4,136.16
+vat
RRP: £7,386.00
Size:
Capacity:
- Capacity of the structure 10x GN 1/6 (trays in option).
- 2 ventilated evaporators.
- Included: 1 grid GN 1/1 (530×325 mm), by door.
- 6 adjustable stainless steel feet.
- Monocoque design
- Manufactured in stainless steel, inside AISI 304 (food), outside AISI 441.
- Top in stainless steel AISI 304.
- Built-in refrigerated upper structure, fitted with a cover.

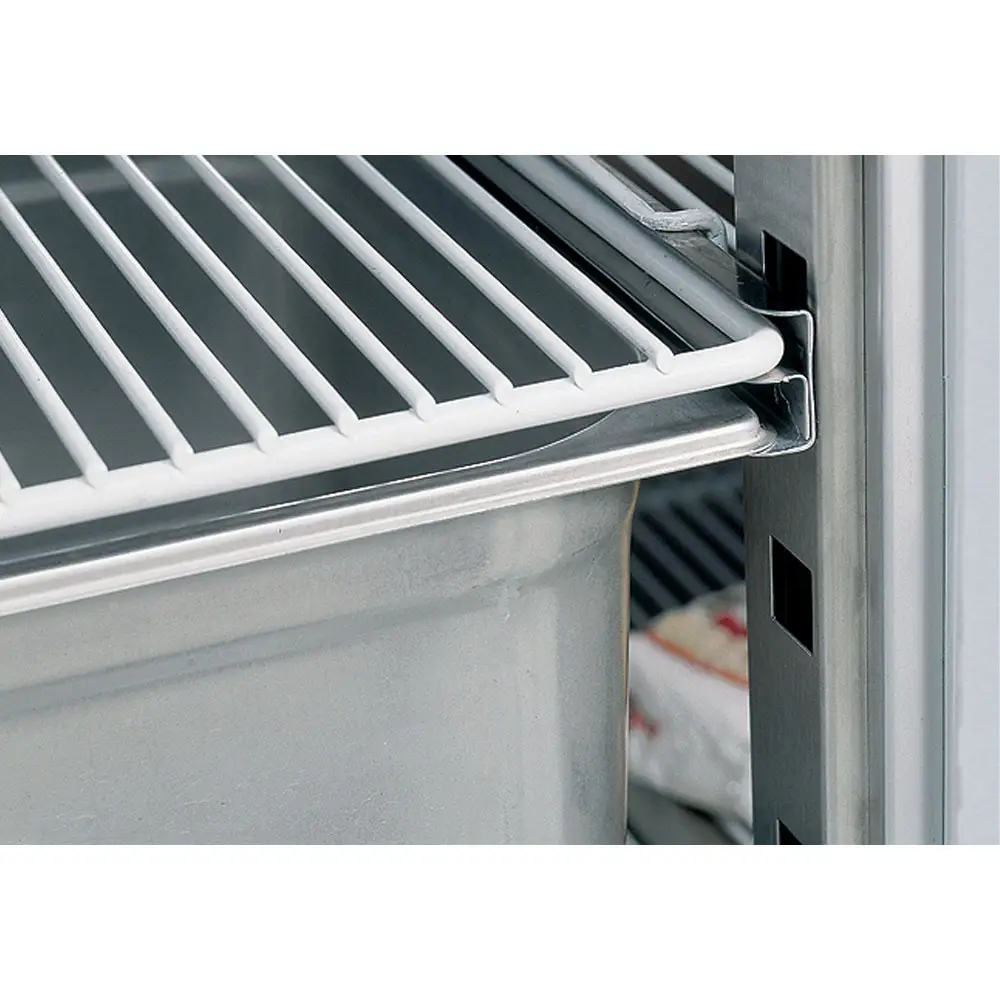

- Stainless steel rack and slides (anti-tilting), allowing to place the grids as one pleases.
- Stamped interior bottom, rounded angles and corners (without roughness).
- Doors with ergonomic handle (no salient) and reversible (kit is not necessary), “snap-fit” closure by magnetic joint (easy replacement without tools), hinge with stop at 100° and closure of the doors with automatic return.
- Compressor unit climate class 4 (30°C Temperature & 55% Humidity), ), built into the cabinet (right), ventilated condenser.
- Frontal accessibility of the compressor group, easy inspection.
- Over-sized evaporator(s), ventilated or static (87% of relative humidity), placed between the doors.
- Refrigerant R290.
- Electronic regulator (under closed box, waterproof), control front screen with blue LED.
- Intern lighting, with switch.
- Automatic defrosting of the evaporator, number of defrosting programmed by the factory (modifiable at will).
- Condenser’s automatic evaporation.
- Polyurethane insulation without CFC (60 mm).
Measures and Content
Dimensions
External Dimension (WxDxH): W2260 x D700 x H1210
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DTS-10/P9 4 Door Stainless Steel Refrigerated Counter, 550 Litres then please get in touch.
