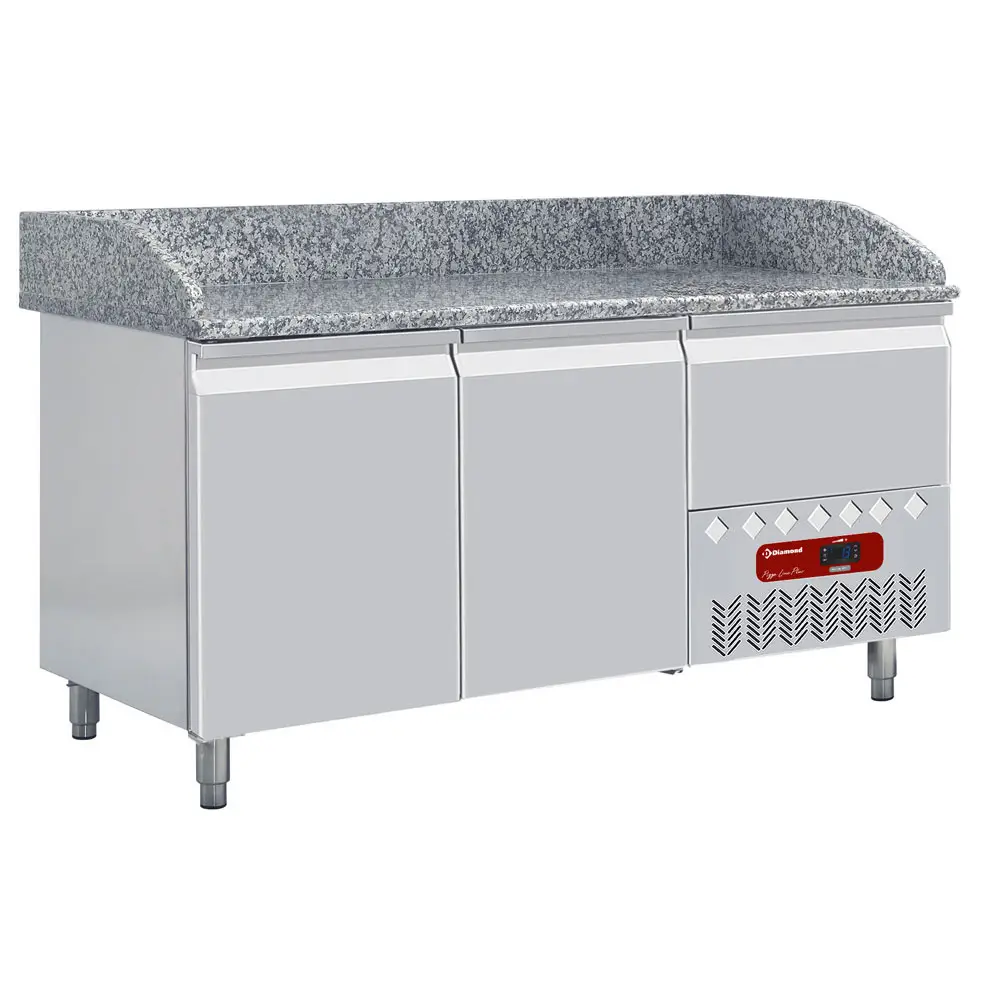

Diamond TP23/P9 2 Door Refrigerated Counter with Splashback
£3,805.76
+vat
RRP: £6,796.00
Size:
Capacity:
- Included: 4 pairs of “EURONORM” slides by door (trays 600×400)
- 1 neutral drawer on telescopic slides (capacity 4x trays 600×400), tray’s maximum height (70 mm)
- Storeroom 267 liters with 1 ventilated-static evaporator
- 4 adjustable stainless steel feet
- NB: delivered without trays 600×400 mm
- Monocoque design
- Worktop of granite (white Porinho), thickness 30 mm (processed food), with “beveled” edges, rounded front edge and backsplash at the sides and back (150 mm), also made of granite
- Manufactured in stainless steel, inside AISI 304, outside AISI 441 (back also in stainless steel AISI 441)
- Stamped interior bottom, rounded angles and corners (without roughness)
- Stainless steel “L” rack and slides
- Doors (EURONORM) with ergonomic handle (no salient), also reversible (kit is not necessary), “snap-fit” closure by magnetic joint (easy replacement without tools), hinges with stopping at 100° and closing of the doors with automatic recall
- Neutral drawers for the dough roll, easily removable, easy maintenance
- Electronic regulator (under closed box, waterproof), control front screen with blue LED
- Over-sized evaporator(s), ventilated or static), placed between the doors
- Climate class 5 compressor unit (40°C Temperature – 40% humidity), incorporated in the cabinet (right), ventilated condenser
- Frontal accessibility of the compressor group, easy inspection
- Refrigerant R290
- Intern lighting, with switch
- Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will)
- Condenser’s automatic evaporation
- Polyurethane insulation without CFC (60 mm)
- The equipment is manufactured following the (CE) standards in force
Measures and Content
Dimensions
External Dimension (WxDxH): W1610 x D800 x H1485
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond TP23/P9 2 Door Refrigerated Counter with Splashback then please get in touch.
