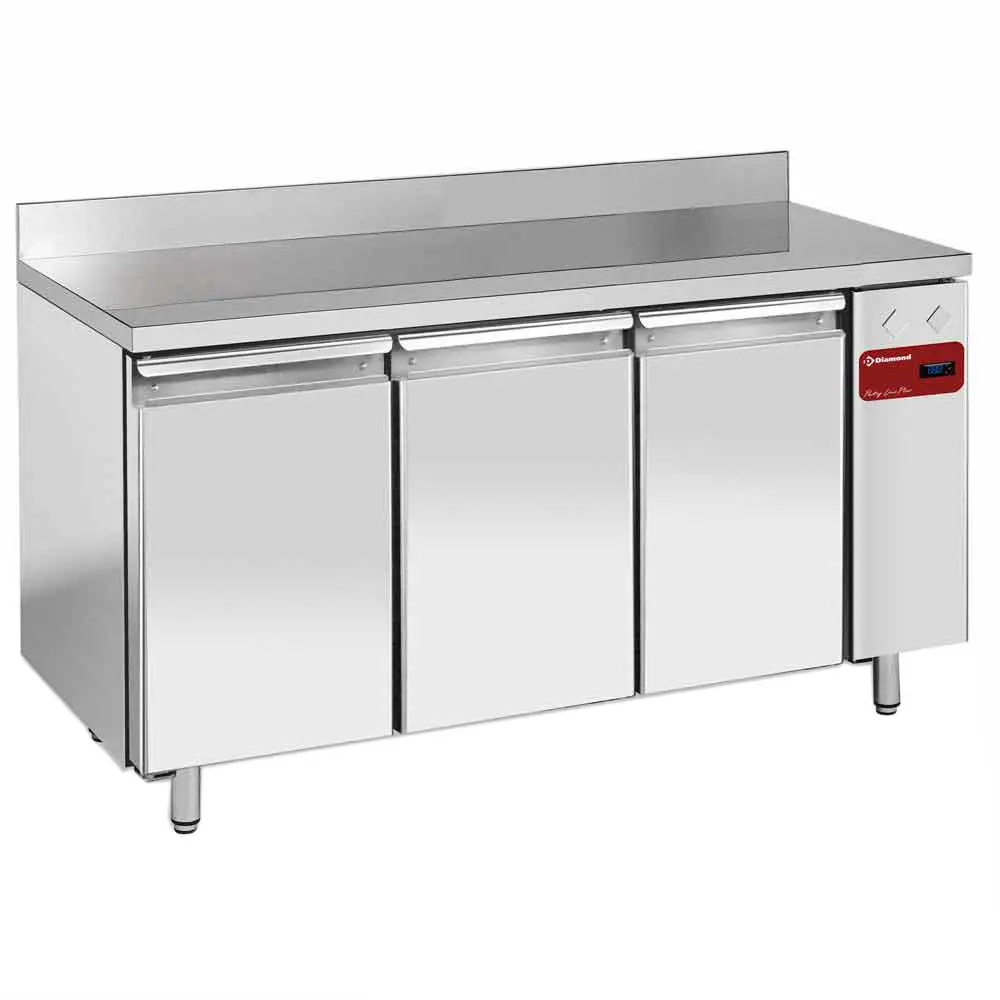

Diamond TS3B/HA 3 Door Stainless Steel Freezer Counter with Splashback, 405 Litres
£3,710.56
+vat
RRP: £6,626.00
Size:
Capacity:
- Wall-mounted version with raised rear edge.
- Predisposed for distance compressor unit (not included)
- Included: 1 grid GN1/1 (530x325mm), per door
- 4 adjustable stainless steel feet.
- Can be installed on a base.
- NB We do not recommend equipping the drawer units.
- Delivered without compressor unit, predisposed for remote unit placement
- Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
- Independent top top (removable), in stainless steel (food grade) AISI 304
- Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
- Doors with ergonomic (not protruding) and reversible handles (see Kit, TKDX-H or TKSX-H), closing by “triple chamber” and magnetic “pressure” seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return, counter door with heating resistance
- Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
- Predisposition
- Refrigerant gas R452a.
- Electronic controller (closed box, waterproof), with HACCP functions, front panel display with blue LED
- Automatic defrosting of the evaporator (by electrical resistance), number of defrostings factory program (can be modified as required)
- Condensate collection tank, with automatic evaporation (by electric resistance) as standard
- CFC-free polyurethane insulation (60 mm)
- The device is built in compliance with all applicable standards (CE).
Measures and Content
Dimensions
External Dimension (WxDxH): W1590 x D700 x H900
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond TS3B/HA 3 Door Stainless Steel Freezer Counter with Splashback, 405 Litres then please get in touch.
01922 926123
