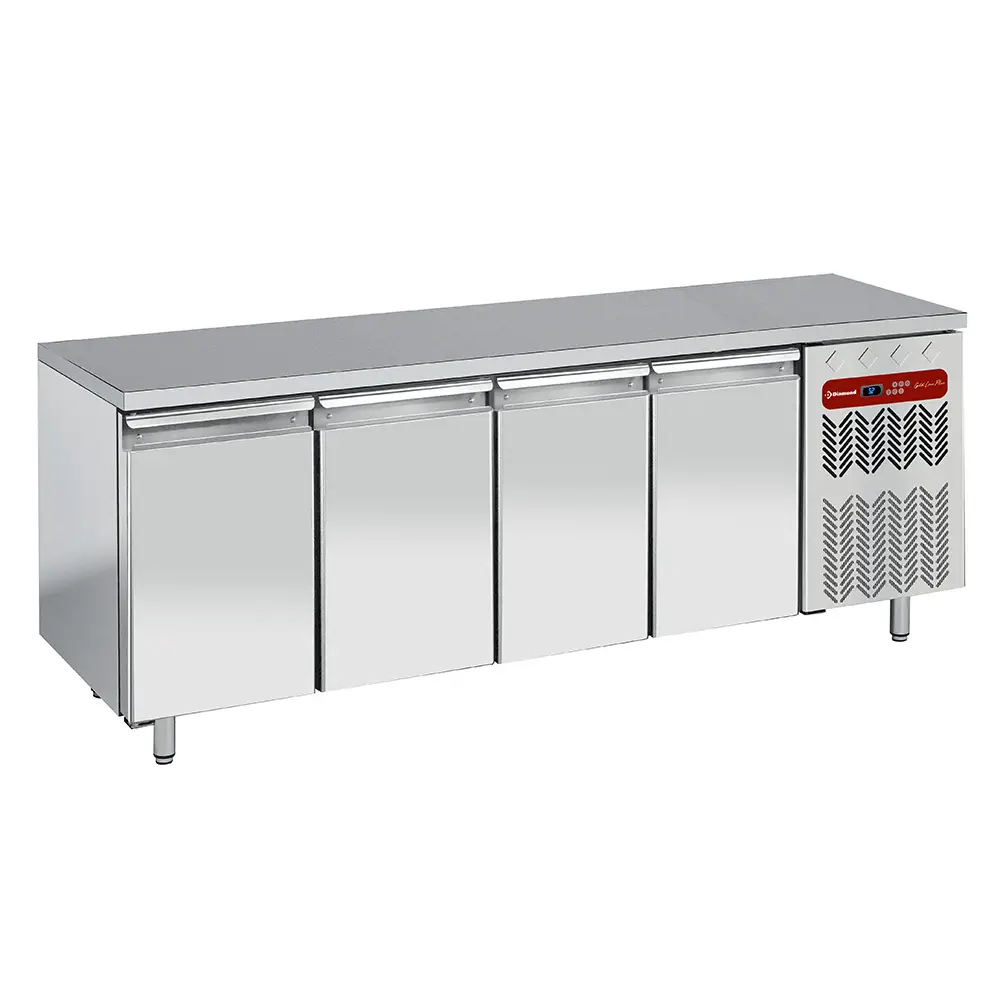

Diamond TG4B/H-R2 4 Door Stainless Steel Freezer Counter, 550 Litres
£4,574.08
+vat
RRP: £8,168.00
Size:
Capacity:
- Included: 1 grid GN1/1 (530x325mm), per door
- 6 adjustable stainless steel feet.
- Can be installed on a base.
- NB We do not recommend equipping the drawer units
- Interior and exterior made of AISI 304 stainless steel (food grade), monocoque frame
- Independent top (removable), in stainless steel (food grade) AISI 304
- Stainless steel racks and slides (antitilt), allowing the grids to be positioned as desired, deep-drawn inner bottom and rounded corners and angles (without rough edges)
- Doors with ergonomic (not protruding) and reversible handles (see Kit, TKDX-H or TKSX-H), closing by “triple chamber” and magnetic “pressure” seal (easy replacement, without tools), hinges (front fixing) with 100° stop, closing with automatic return, counter door with heating resistance
- Front access to compressor unit, easy inspection
- Compressor unit in climate class 5 (40°C Temperature – 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
- Ventilated (side) evaporator (oversized), treated against salt and coating food acids, completely hidden (not visible)
- Refrigerant gas R290.
- Digital” electronic microprocessor (in closed box, 100% waterproof), with HACCP functions, front panel display with blue LED
- Automatic defrosting of the evaporator (hot gas), number of defrostings factory program (can be modified as required)
- Automatic condensate evaporation (hot gas)
- CFC-free polyurethane insulation (60 mm)
- The device is built in compliance with all applicable standards (CE).
- NB No possibility of mounting drawers
Measures and Content
Dimensions
External Dimension (WxDxH): W2250 x D700 x H900
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond TG4B/H-R2 4 Door Stainless Steel Freezer Counter, 550 Litres then please get in touch.
