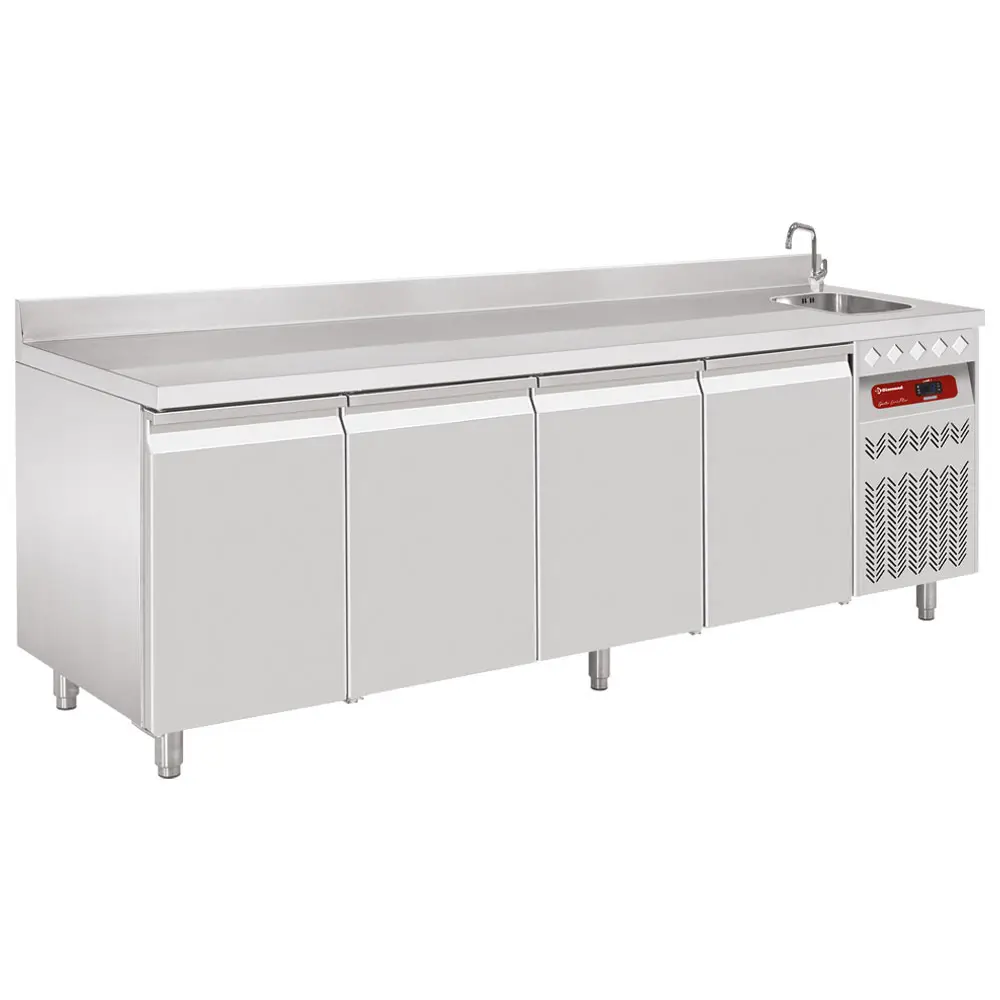

Diamond DT224/P9A_EV 4 Door Stainless Steel Refrigerated Counter with Splashback & Sink, 550 Litres
£3,934.56
+vat
RRP: £7,026.00
Size:
Capacity:
- Sink 340x400x200mm integrated in the work top (right side), delivered with a siphon; drain screen and overflow (NB: tap on request, opening on the work top (27 mm)).
- “Wall” model with turned-up back edge.
- 2 ventilated evaporators.
- Included: 1 grid GN 1/1 (530×325 mm), per door.
- 6 adjustable stainless steel feet.
- Monocoque design
- Manufactured in stainless steel, inside AISI 304, outside AISI 441.
- Independent upper top (dismountable), stainless steel AISI 304.
- Stainless steel rack and slides (anti-tilting), allowing to place the grids as one pleases.
- Stamped interior bottom, rounded angles and corners (without roughness).
- Doors with ergonomic handle (no salient) and reversible (kit is not necessary), “snap-fit” closure by magnetic joint (easy replacement without tools), hinge with stop at 100° and closure of the doors with automatic return.
- Tropicalized compressor unit climate class 5 (40°C Temperature & 40% Humidity), incorporated in the cabinet (right), ventilated condenser.
- Frontal accessibility of the compressor group, easy inspection.
- Over-sized evaporator(s), ventilated or static (87% of relative humidity), placed between the doors.
- Refrigerant R290.
- Electronic regulator (under closed box, waterproof), control front screen with blue LED.Intern lighting, with switch.
- Automatic defrosting of the evaporator, number of defrosting programmed by factory (modifiable at will).
- Condenser’s automatic evaporation.
- Polyurethane insulation without CFC (60 mm).
Measures and Content
Dimensions
External Dimension (WxDxH): W2260 x D700 x H960
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DT224/P9A_EV 4 Door Stainless Steel Refrigerated Counter with Splashback & Sink, 550 Litres then please get in touch.
