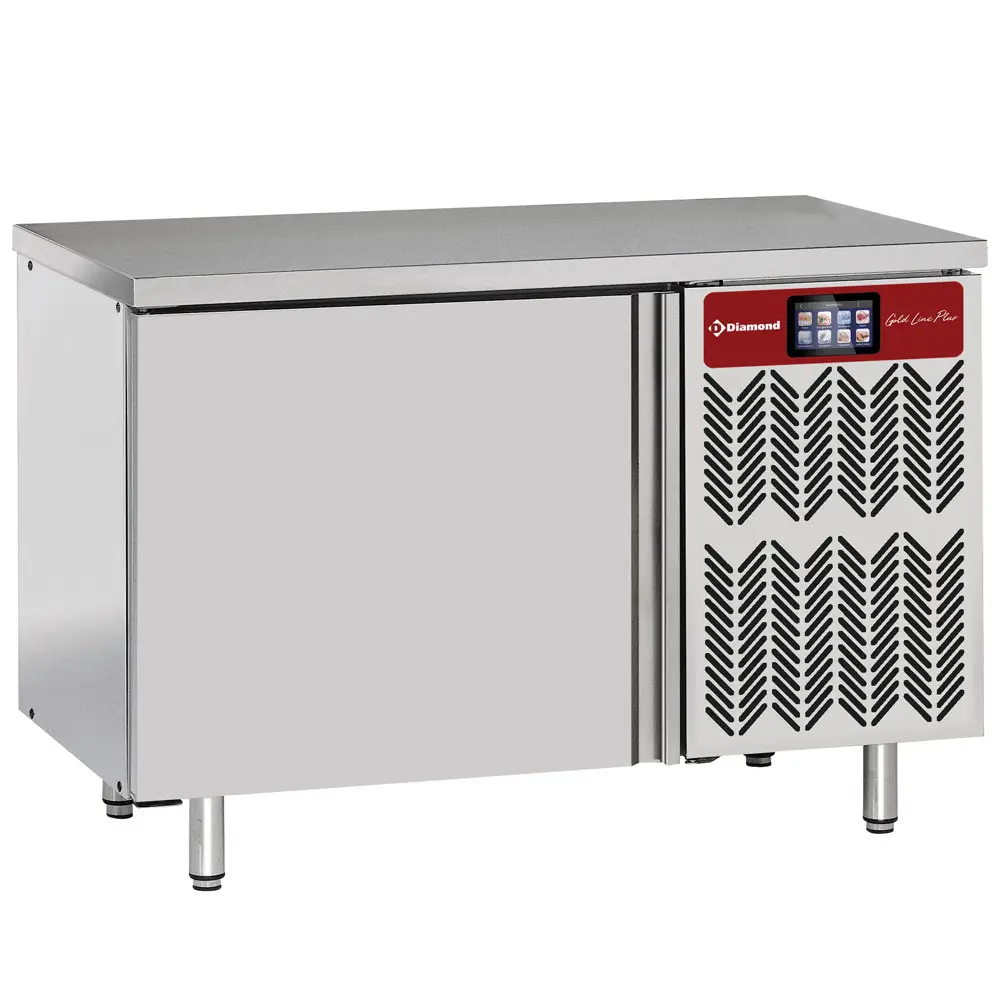

Diamond GTBT6/TS Stainless Steel Blast Freezer Table, 20kg/12kg
£5,595.52
+vat
RRP: £9,992.00
Size:
Capacity:
- Capacity: 6x GN 1/1 (grids and plates optionals).
- Cycle production : 20 Kg (+70° C +3° C) ou 12 Kg (+70° C -18° C).
- Core probe, serial.
- “Anti-tilt” structure in stainless steel cable
- (detachable), space between plates 74 mm.
- Refrigerant expansion R404A by thermostat.
- 4 adjustables stainless steel wheels.
- Type “A”, microprocessor, digital ((in sealed box, 100% waterproof), with HACCP functions, programmables as desire.
- 4 cycles to choose “Soft Chill” or “Soft Freeze” for sensitive, “Hard-Chill” or “Hard-Freeze” for large parts, control timer with bell at end of cycle (or) control by core probe, with the function of holding the end of the cycle
- And (visual or auditive) alarm, 99 memorisables programs, selection in more than 20 cycles of operation, automatic cycle, etc…
- (See PLUS data sheet), display in front panel.
- Exrterior and Interior made in stainless steel (food AISI 304), monohull chassis, inside bottom stamps y rounded angles and corners (without rough edges), with drainage cork (high maintenance).
- Independent work top (detachable), in stainless steel
- (food) AISI 304.
- Door with ergonomic handle (not apparent) and reversible (ver Kit), provided by magnetic seal closure “by pressure” (easy replacement, without tools), hinges with stop at 100°, closure with automatic callback, Inside door equipped with a heating element, preventing the formation of frost (Function Freeze).
- Micro switch device in the door, allowing the stop of the evaporator’s ventilator when it opens.
- Tropicalized compressor group (+43°), on slides “removable”, easy maintenance and after sales service, provided wih an air filter (wash), in the equipment (right sided), ventilated condenser.
- Ventilated evaporator (oversized), treated againts salt and the food acids, hidden (not visible), ventilator’s motor IP44.
- Manual or automatic defrosts (at the beginning of the cycle).
- Insulation in injected polyurethane (without CFC’s).
- The equipment is manufactured following the (CE) standards in force.
Measures and Content
Capacity Cooling: 20kg
Capacity Freezing: 12kg
Dimensions
External Dimension (WxDxH): W1250 x D700 x H900
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond GTBT6/TS Stainless Steel Blast Freezer Table, 20kg/12kg then please get in touch.
