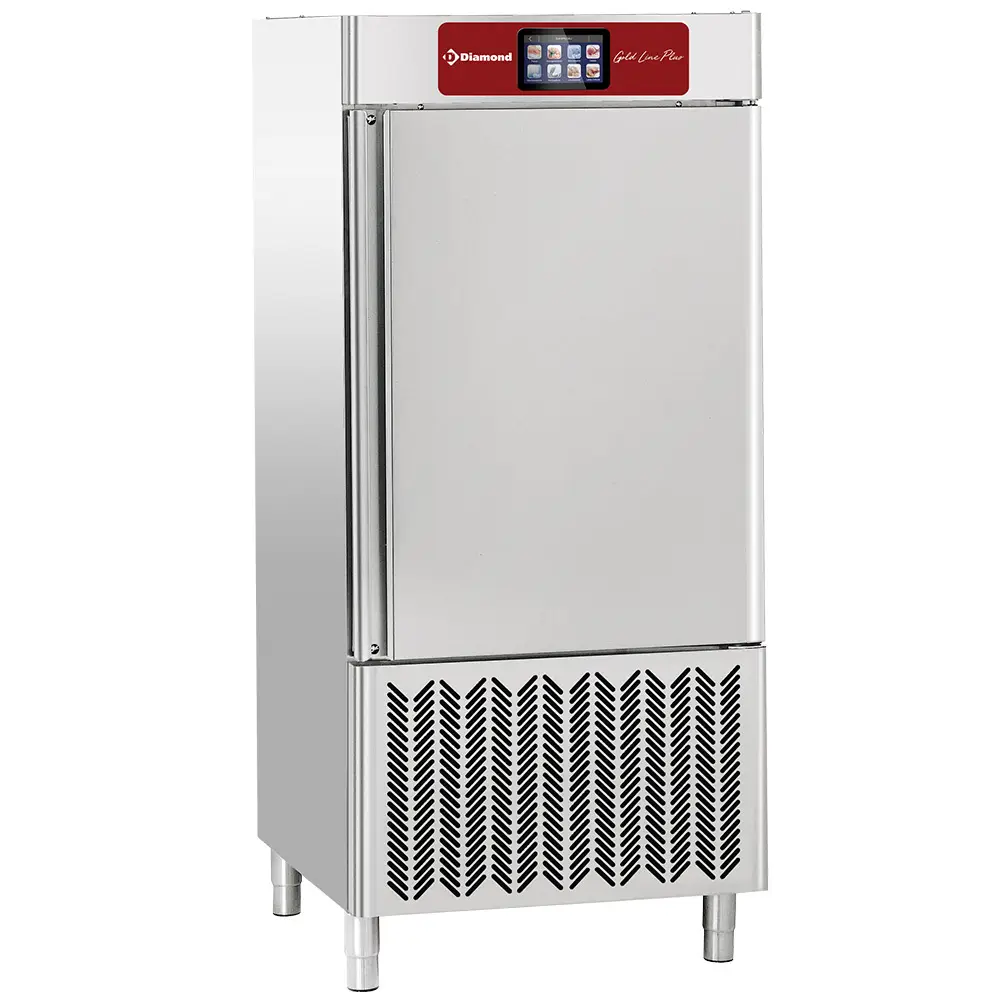

Diamond DBT101/TS-GX Stainless Steel Blast Freezer, 40kg/25kg
£8,415.68
+vat
RRP: £15,028.00
Size:
Capacity:
- Capacity: 10x GN 1/1 (or) 10x EN 600×400 mm (optional grills and plates).
- Prodution per cycle : 40 Kg (+70° C +3° C) or 25 Kg (+70° C -18° C).
- Core probe, serial.
- “Anti tilt” Structure made of stainless steel wire (removable), space for trays GN 1/1 (75 mm) & EN 600×400 (44 mm).
- Door with integrated “non-projecting” handle (reversible on order).
- Top panel for access to the compressor unit, on hinges, easy inspection
- – Hinges with automatic return (blocking at 90 °).
- Insulation 70 mm (thick).
- Refrigerant expansion R404A by thermostatic valve.
- 4 stainless steel legs
- Electronic microprocessor type “A”, digital (closed box, 100% waterproof), with HACCP functions, programmable as desire.
- 4 cycles to choose “Soft Chill” or “Soft Freeze” for delicate, “Hard-Chill” o “Hard-Freeze” for resistant, timer control with bell at end of cycle (or) control by core probe, also with the function of holding the end of the cycle and alarm device (visual or aural), 99 storable programs, selection in more than 20 cycles, automatic cycle..
- (see PLUS sheet), display in front.
- Monoblock structure, interior and exterior made in stainless steel
- (food) (AISI 304).
- Stamped interior bottom, rounded edges and corners (no roughness), with drain plug (major maintenance).
- Door with ergonomic handle (not protruding), magnetic seal closure provided by ” pressure” (easy replacement without tools) inside door equipped with heater, preventing the formation of ice (Freeze Function).
- Micro switch device in the door, allowing the evaporator fan to stop, when the door opens.
- Compressor Group (T ° +43 °), condenser ventilated, front accessibility.
- Ventilated evaporator (oversized), treated against salt and food acids, completely hidden (not apparent) IP44 fan motor.
- Manual or automatic defrosts (cycle start).
- Injected polyurethane insulation (CFC).
- The equipment is manufactured following the (CE) standards in force.
Measures and Content
Capacity Cooling: 40kg
Capacity Freezing: 25kg
Dimensions
External Dimension (WxDxH): W800 x D900 x H1800
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond DBT101/TS-GX Stainless Steel Blast Freezer, 40kg/25kg then please get in touch.
01922 926123
