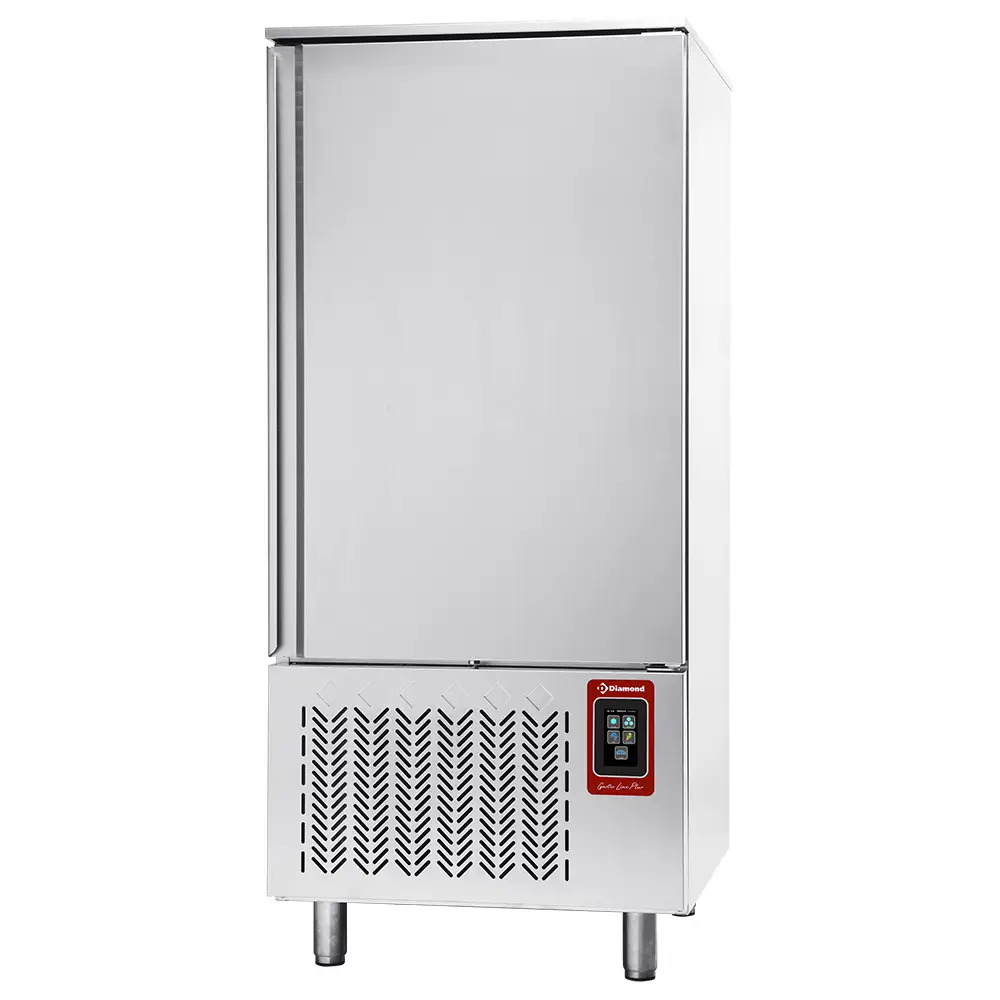

Diamond CBT151/NT Stainless Steel Blast freezer, 32kg
£6,656.16
+vat
RRP: £11,886.00
Size:
Capacity:
- Capacity: 15x GN 1/1 (or) 15x EN 600×400 mm (supplied: 1x GN 1/1 grid)
- Production per cycle: 48 Kg (+70°C +3°C) or 32 Kg (+70°C -18°C)
- Core probe as standard
- “Anti-tilt” structure in stainless steel wire (removable), spacing for 67 mm plates
- Reversible door (on request: Kit left hinges) with integrated handle (not protruding)
- Hinges (right) with automatic return (90° locking).
- Insulation 60 mm thick.
- 4 adjustable stainless steel feet.
- TOUCH SCREEN” controls 5″ screen, high definition color touch screen, allowing the user to customize all major functions.
- 4 cycles to choose from “Soft Chill” or “Soft Freeze” for delicate products, “Hard-Chill” or “Hard-Freeze” for large parts, timer control with bell at the end of the cycle (or) core probe control, with also the holding function at the end of the cycle and alarm device (visual).
- Monobloc structure, made of stainless steel (food grade), inside (AISI 304) and outside (AISI 304-430)
- Deep-drawn inner bottom, rounded corners and angles (without roughness), with drain plug (heavy maintenance)
- Door with “pressure” magnetic seal (easy replacement, no tools required), counter-door with heating resistor, preventing frost formation (Freeze function)
- Door microswitch device, allowing the evaporator fan to stop when it is opened
- Compressor unit in climate class 4, incorporated in the cabinet (front accessibility), ventilated condenser
- Refrigerant R404A (or R452A)
- Ventilated evaporator (oversized), treated against salt and food acids, completely hidden (not visible), fan motor IP45
- Manual or automatic defrosting (beginning of cycle), with self-evaporation of condensate
- Injected polyurethane insulation (CFC-free)
- The equipment is manufactured following the (CE) standards in force.
Measures and Content
Capacity Cooling: 48kg
Capacity Freezing: 32kg
Dimensions
External Dimension (WxDxH): W790 x D830 x H1770
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond CBT151/NT Stainless Steel Blast freezer, 32kg then please get in touch.
