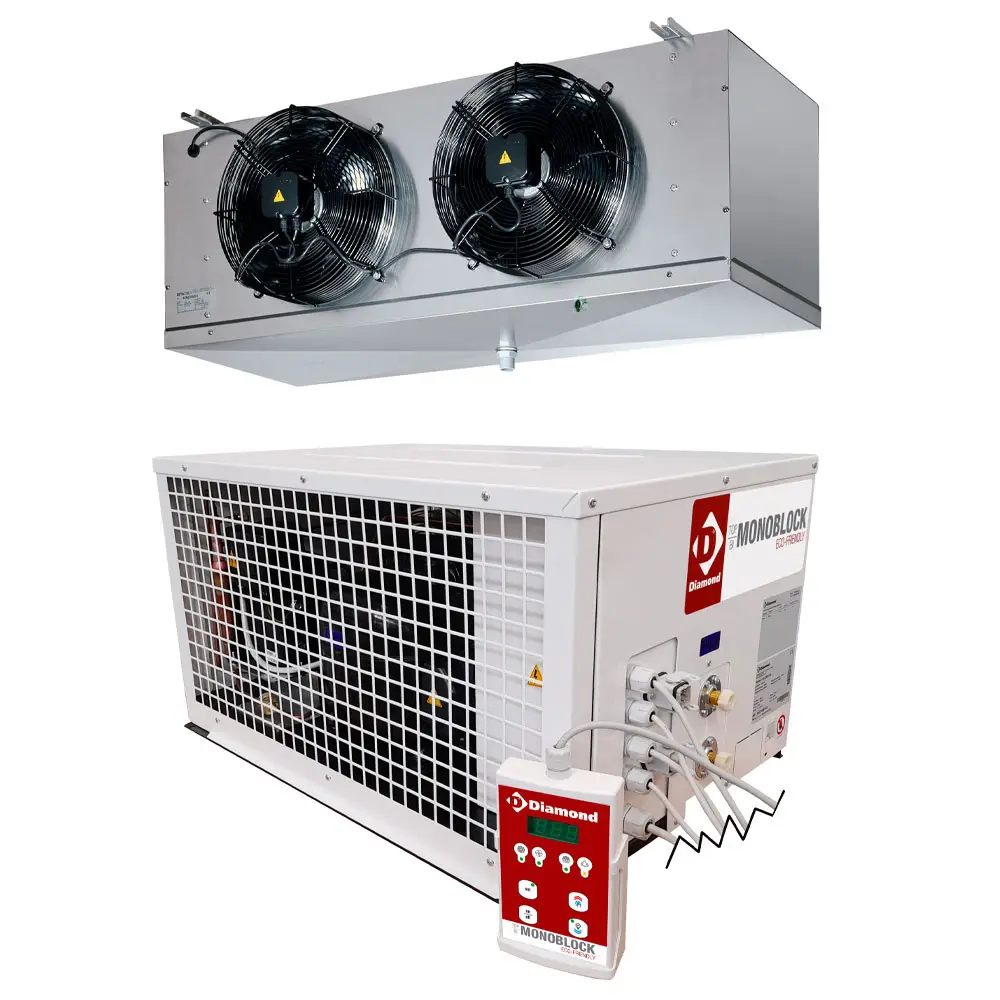

Diamond HP122T-4Q Refrigerated Unit “By-Block” T° -5°+5°
£3,701.60
+vat
RRP: £6,610.00
Size:
Capacity:
- Cooling capacity 2139 (W/f) for room volume 18,1 m³ / 18100 Lit (T° internal 0° C & T° external +32° C).
- Refrigerant expansion by thermostatic valve.
- Bi-block” refrigeration units.
- Due to its design, the condensing unit is suitable for outdoor installation and can be placed anywhere, floor, ceiling, wall,…
- Delivered with 2 wall brackets as standard.
- Pipes (pre-loaded) and cables are supplied for connection within a radius of 5 meters (10 meters optional).
- All units are supplied as standard with a high pressure switch and KVL valve, as well as cables for door and light microswitches.
- Control panel with separate touch-sensitive keys, connected to the unit by a 10 m cable
- Automatic defrosting by electric resistance, water flow located below the evaporator
- The evaporator drain pipe is equipped with a resistance to prevent ice formation.
- Unit certified in climate class 5 (40°C Temperature – 40% Humidity).
- Refrigerant gas R452a.
- Window lights delivered as standard with micro-switch for door.
Measures and Content
Dimensions
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond HP122T-4Q Refrigerated Unit “By-Block” T° -5°+5° then please get in touch.
01922 926123
