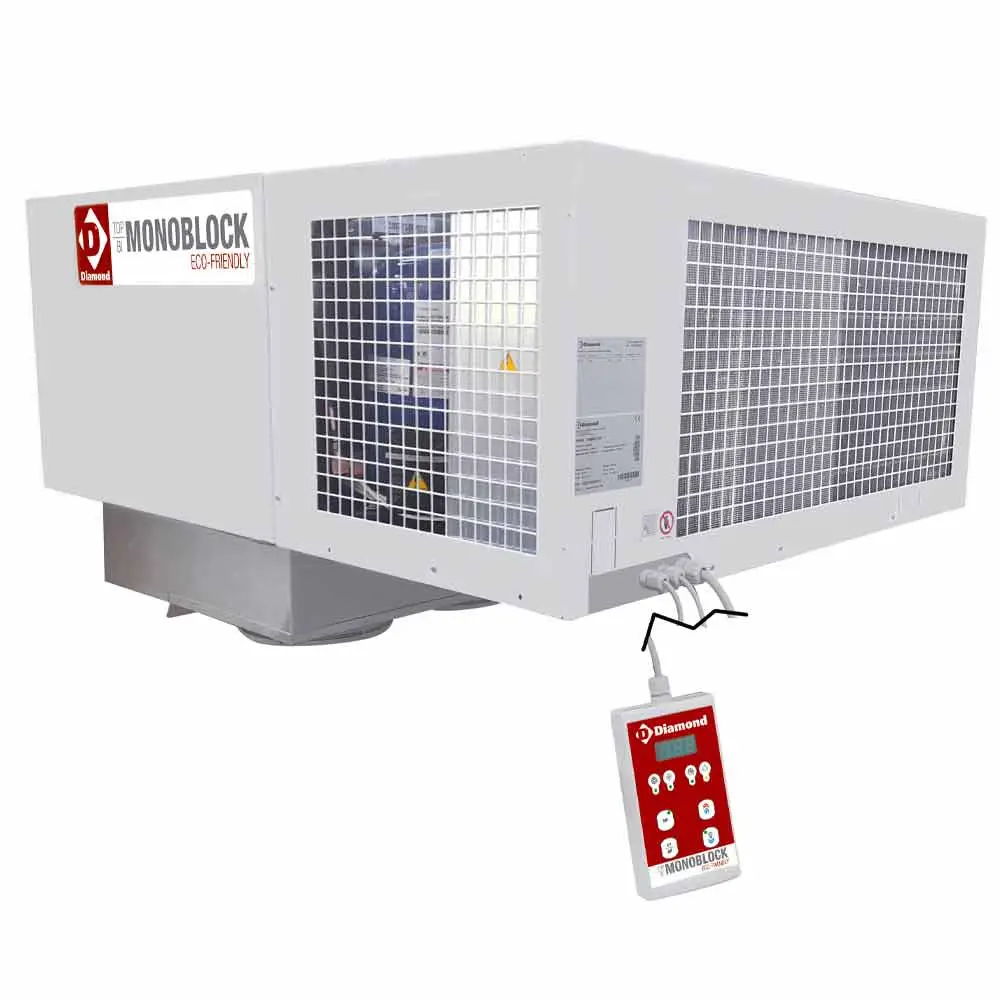

Diamond SN201M-2M Ceiling Refrigerated Group T° -15°-25°
£3,498.88
+vat
RRP: £6,248.00
Size:
Capacity:
- Cooling capacity 1058 (W/f) for chamber volume 7,6 m³ / 7600 Lit (T° internal -20° C & T° external +32° C).
- Refrigerant expansion by thermostatic valve.
- Supplied with a cable for the connection of the door heater.
- Ceiling” refrigeration units.
- All units are supplied as standard with a high pressure switch and KVL valve as well as cables for door and light micro-switches.
- Separate control panel, connected to the unit by a 5m cable, control of the functions by microprocessor with touch-sensitive keys.
- Automatic hot gas defrosting with self-evaporation, as well as an overflow, water drain located below the evaporator
- The evaporator drain pipe is equipped with a resistance to prevent ice formation.
- Unit certified in climate class 5 (40°C Temperature – 40% Humidity).
- Refrigerant gas R452a.
- Window lights delivered as standard with a micro-switch for the door.
Measures and Content
Dimensions
External Dimension (WxDxH): W880 x D700 x H390
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SN201M-2M Ceiling Refrigerated Group T° -15°-25° then please get in touch.
