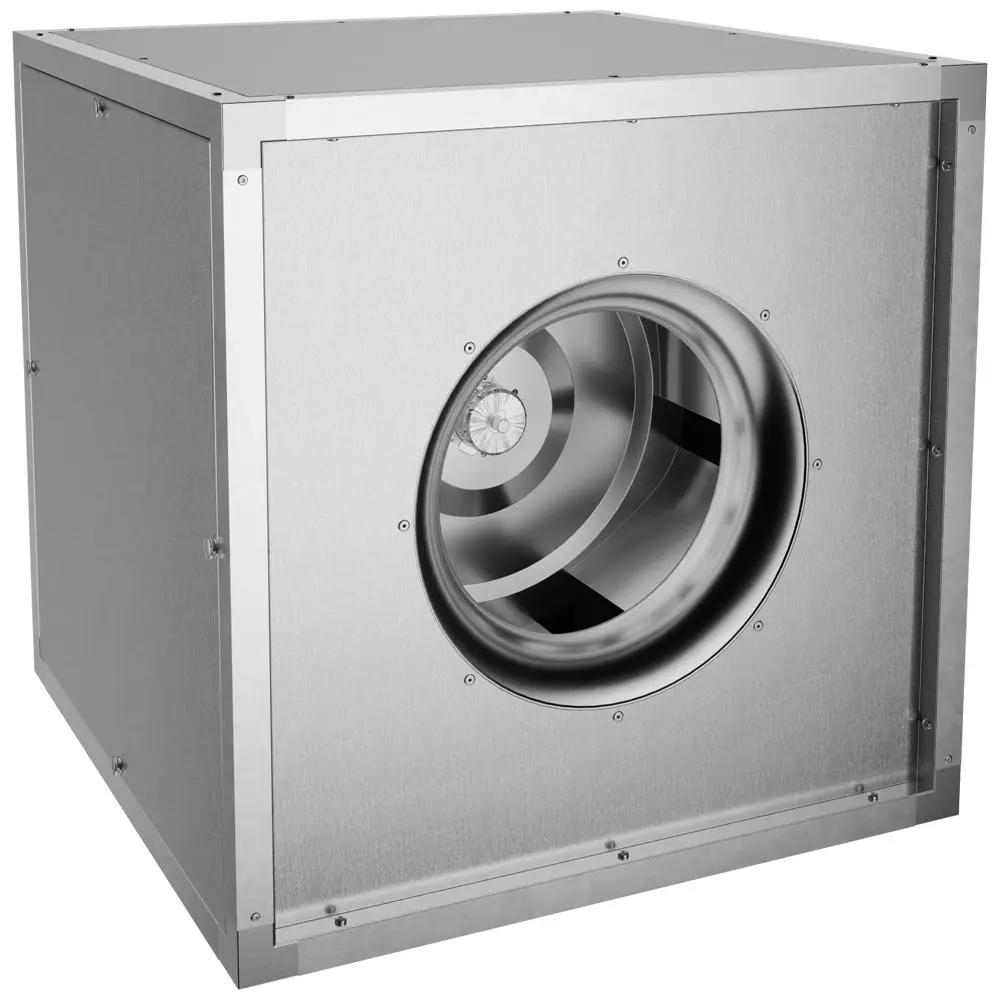

Diamond CVX-2M Centrifugal Fan “Outflow” w/ Insulated Casing

• Single-phase version.
• Pre-cut air inlet with a diameter of 250mm.
• Flow rate: 2200 m³/h (pressure drop: 200 Pa).

• Single-inlet centrifugal ventilation units with built-in motor (operating temperature/resistance: -20° +110°).
• Aluminium profiles and ‘sandwich’ type galvanised sheet metal cladding panels with 20mm acoustic insulation (polyurethane foam).
• Panel with handle for easy access to turbine for maintenance.
• Open motor access area for after-sales service inspection.
• Enclosed motor, IP54 protection rating, with thermal protection (in sealed box).
• Impeller with backward-inclined blades.
• Complies with CE standards and German DIN 18869 – T1 standards according to VDI 2052.

ADVANTAGE :

• Compliant with CE standards and German standard DIN 18869 – T1 according to VDI 2052, ‘non-airflow’ fan units are designed for optimum extraction of air at high temperatures and in the presence of greasy components in industrial kitchens and restaurants, including chip shops, Asian and Greek restaurants and many others. Thanks to their insulation, these fans are suitable for use both indoors and outdoors. Their design ensures easy maintenance and fully adjustable air direction, giving you maximum flexibility to meet your requirements.
