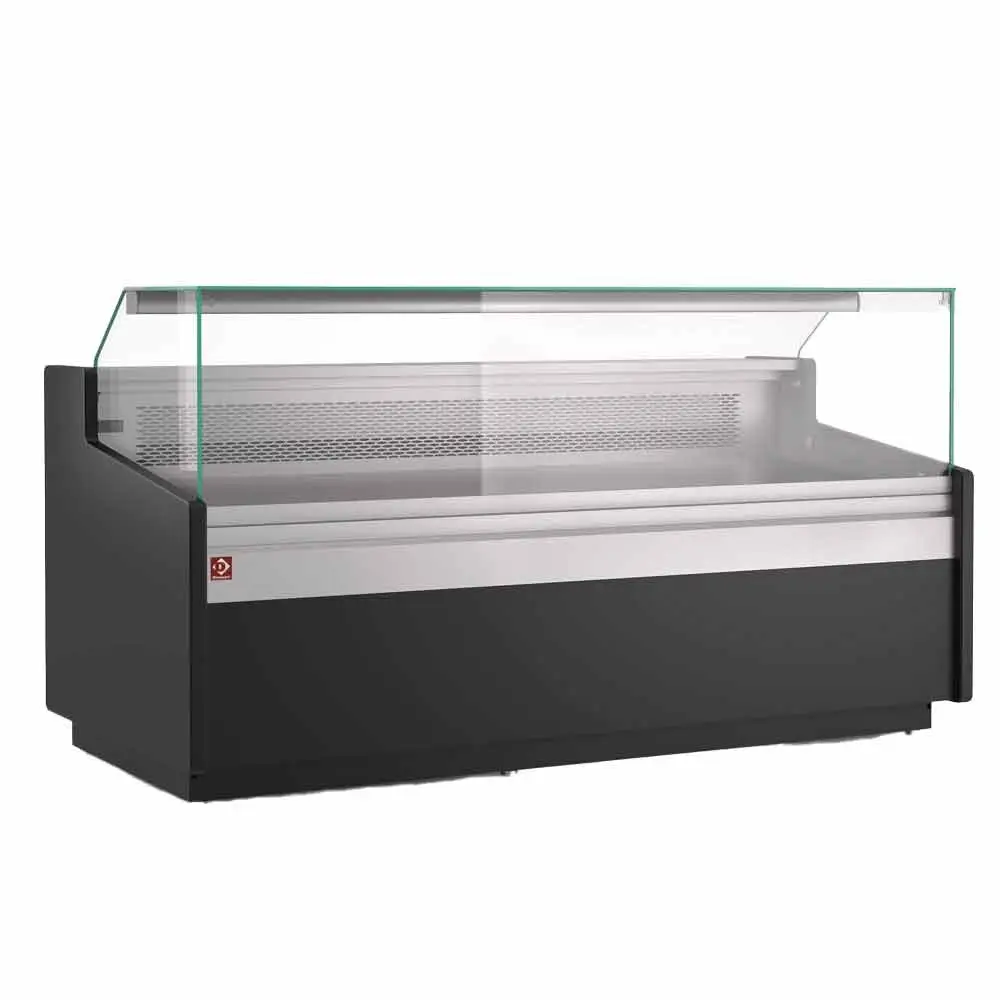

Diamond ATL/13-AV-B5 Black Ventilated Serveover Counter with Understorage
£3,554.88
+vat
RRP: £6,348.00
Size:
Capacity:
- An intermediate glass
- Double LED lighting of the display (under the upper and lower glass)
- Thermoformed ABS sides, front and rear in plastic coated sheet metal
- Tempered glass windows, 90° straight front window, openable and foldable with safety stop (easy maintenance)
- Anodized aluminum profiles.
- Exposure in stainless steel AISI 304, depth 700 mm (EURONORM and GASTRONORM )
- Plexiglass deflector, allowing a homogeneous distribution of the temperature
- AISI 304 stainless steel work surface
- LED lighting of the exposure
- Intermediate glass shelf
- Ventilated evaporator, treated against the corrosion of food acids (adjustable fan speed device)
- Built-in compressor unit, climatic class 4 (+30°C & RH 55%)
- Refrigerant gas R290
- Control panel with electronic regulator (digital display), light switch and single-phase plug
- Analogic thermometer in the exposure
- Automatic defrosting, with self-evaporation of condensate
- With refrigerated reserve (neutral model with “non-refrigerated” reserve)
- Frame made of epoxy-coated steel sheet, CFC-free polyurethane insulation
- The unit is built in compliance with current CE standards
Measures and Content
Dimensions
External Dimension (WxDxH): W1305 x D960 x H1235
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond ATL/13-AV-B5 Black Ventilated Serveover Counter with Understorage then please get in touch.
01922 926123
