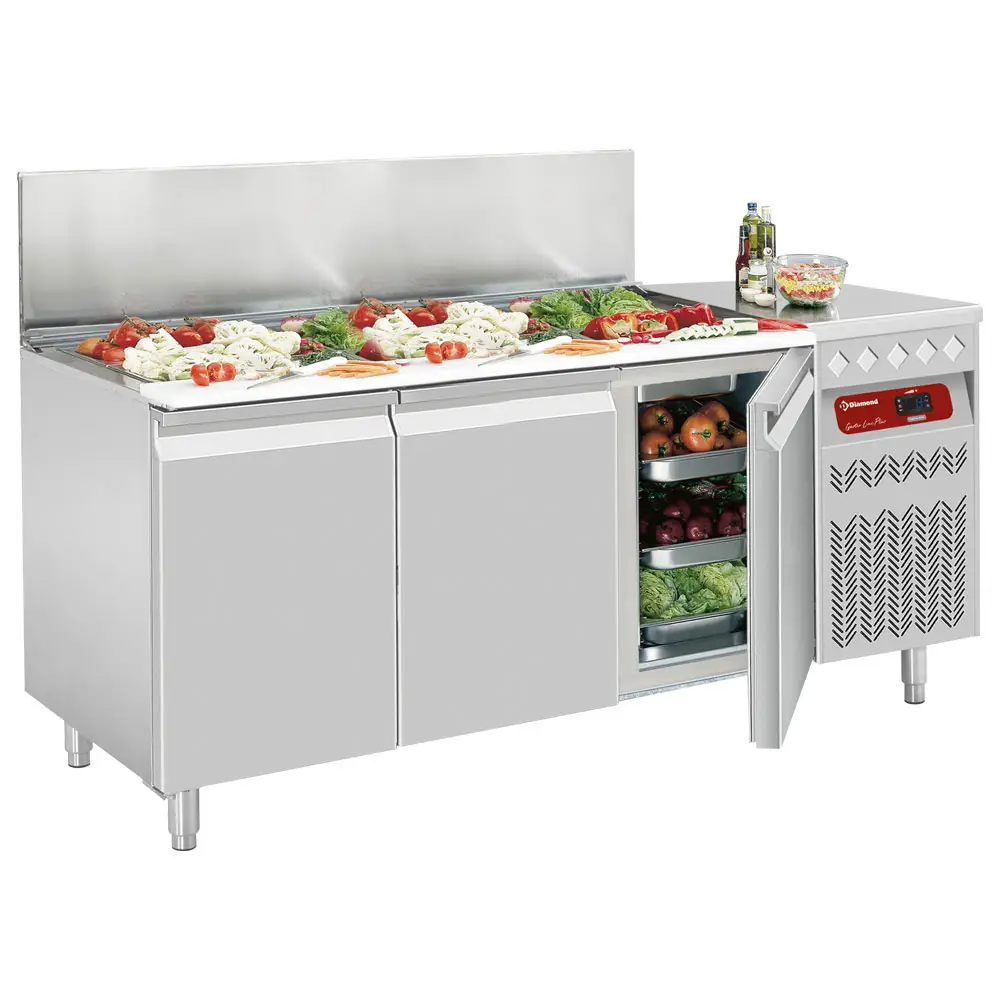

Diamond SG3-G4/P9 3 Door Stainless Steel Refrigerated Counter with Refrigerated Structure, 403 Litres
£3,810.24
+vat
RRP: £6,804.00
Size:
Capacity:
- Refrigerated table GN 2 x 1/1, 2 x 1/2, 3 x 1/9, H150 mm
- (optional vats).
- Telescopic and flip-top cover in stainless steel.
- Shelf in polyethylene (food).
- 1 ventilated eveporator.
- With: 1 grid GN 1/1 (530×325 mm), per door.
- 4 adjustable stainless steel feet.
- Monocoque design
- Internal construction in stainless steel (Food) AISI 304, external AISI 441.
- Top in AISI 304 stainless steel.
- Built-in upper refrigerated structure with a cover.
- Racks and slides in stainless steel (anti-tilt), allowing the grids to be positioned as desired.
- Deep-drawn inner bottom and rounded corners and angles (without roughness).
- Doors with ergonomic handle (reversible, no Kit required), closing by magnetic “pressure” seal (easy replacement, no tools required), hinges with 100° stop and door closing with automatic return.
- Compressor unit Climate class 5 (40°C Temperature & 40% Humidity), built into the cabinet (right), ventilated condenser.
- Front accessibility of the compressor unit, easy inspection.
- Ventilated (or) static (87% relative humidity) (oversized) evaporator(s), positioned between the doors.
- Refrigerant R290.
- Electronic regulator (in closed, waterproof box), control screen on the front panel with blue LED.
- Automatic defrosting of the evaporator, number of defrostings factory program (can be modified as required).
- Automatic evaporation of condensate.
- CFC-free polyurethane insulation (60 mm).
Measures and Content
Dimensions
External Dimension (WxDxH): W1795 x D700 x H960
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SG3-G4/P9 3 Door Stainless Steel Refrigerated Counter with Refrigerated Structure, 403 Litres then please get in touch.
