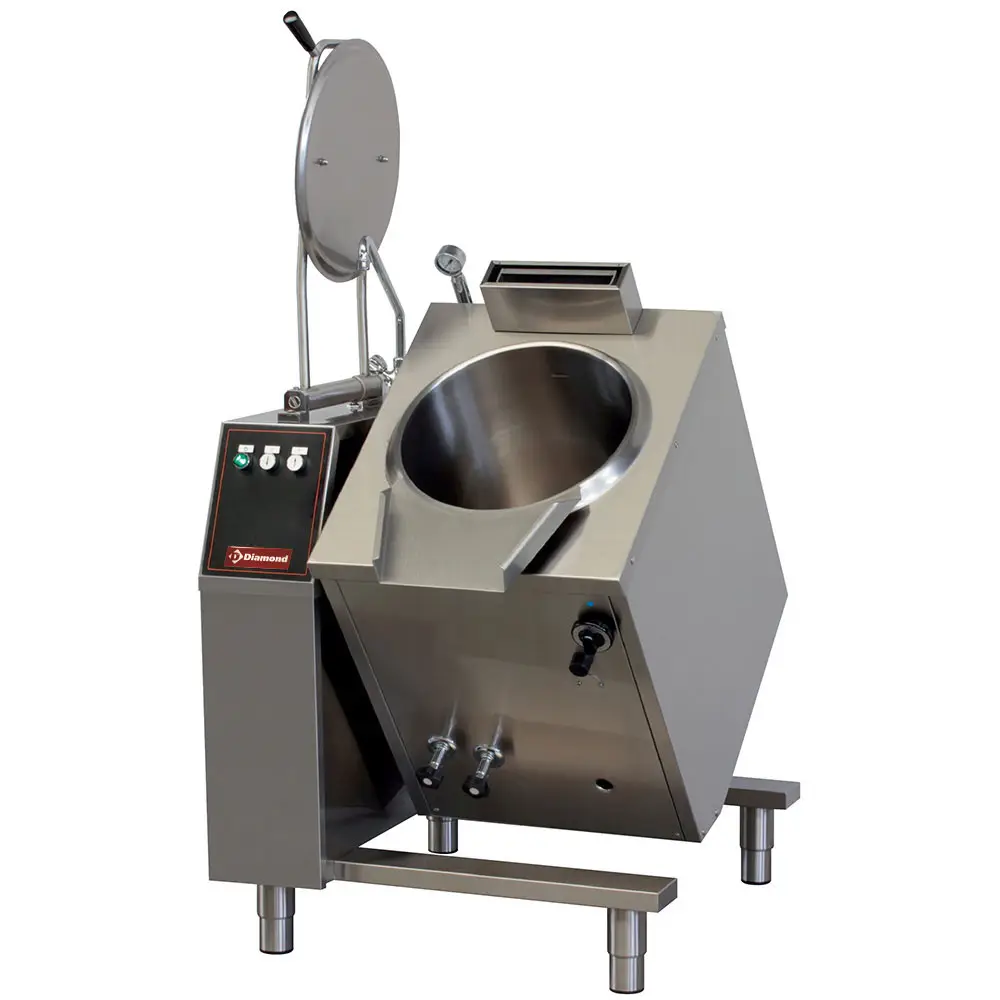

Diamond GMB/50I Gas Indirect Heating Tilting Boiling Pan, 50 Litres
£14,123.20 +vat
+vat
RRP: £25,220.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Tank diameter 400 mm, depth 465 mm.
- “Deep-drawn” tank, bottom made of polished AISI 316 stainless steel (20/10 mm thick) wall made of 304 stainless steel (15/10 mm thick)
- Indirect heating, double jacket made of 304 stainless steel (15/10 mm thick).
- Made of AISI 304 stainless steel, stainless steel base
- Covering: made of AISI 304 stainless steel (10/10 mm thick)
- Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- “Deep-drawn” tank wall made of 304 stainless steel, bottom made of AISI 316 steel, resistant to salt corrosion and wear
- Water tap for filling the tank.
- Motorized tank tilting
- Operation on the front side.
- “Deep-drawn” cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel filled by the safety group and control valves of minimum/maximum level of the double jacket
- Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Gas heating by 304 stainless steel tubular burners with stabilized flame
- Temperature regulation by thermostatic valve.
- Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch.
- Working temperature up to 100°C.
Measures and Content
Dimensions
External Dimension (WxDxH): W800 x D900 x H900
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond GMB/50I Gas Indirect Heating Tilting Boiling Pan, 50 Litres then please get in touch.
