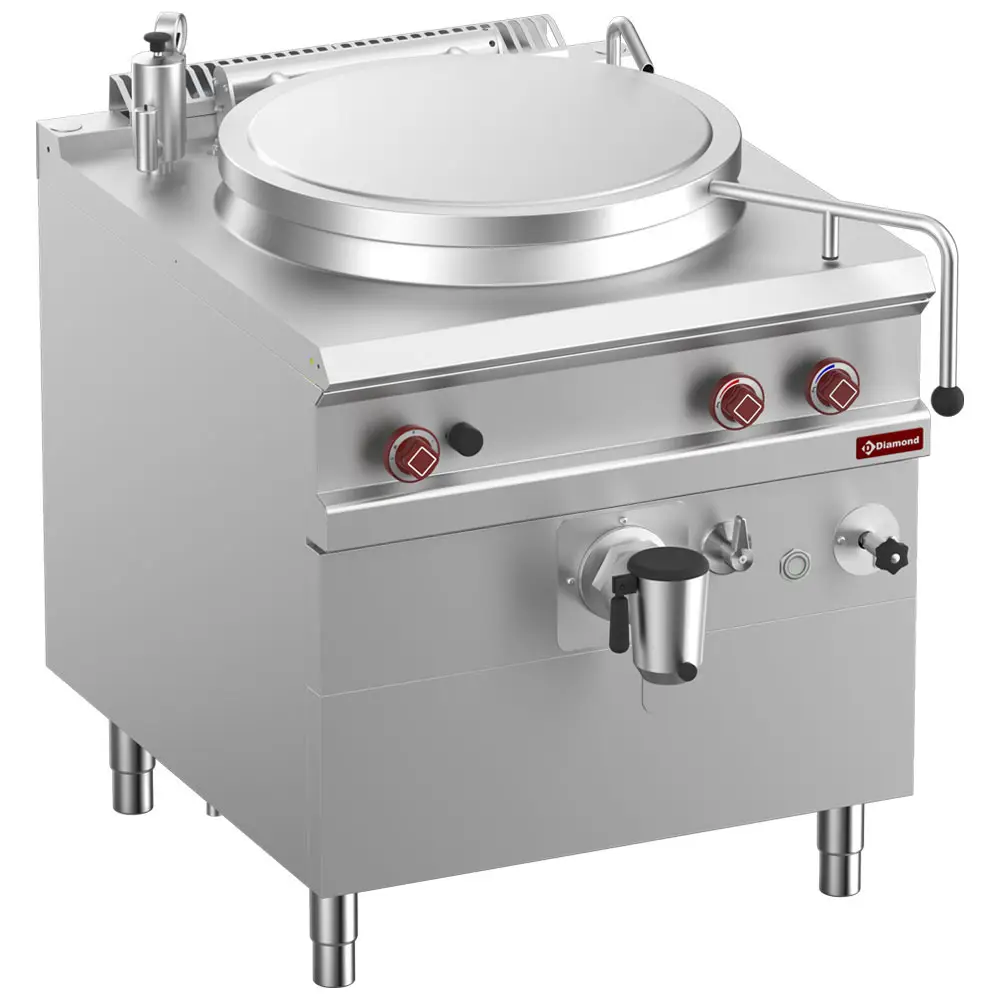

Diamond G9/M10I8-N Gas Indirect Heating Boiling Pan on Cupboard, 100 Litres
£6,456.80 +vat
+vat
RRP: £11,530.00
Low stock: order soon
Size:
Capacity:
Low stock: order soon
- Diameter of the tank 600 mm, depth 420 mm.
- 2″ drain tap.
- Made in stainless steel AISI 304, adjustable feet in stainless steel.
- Stamped and waterproof top (20/10 mm) in stainless steel AISI 304.
- Chimney in the back in stainless steel AISI 304.
- “Stamped” tank in stainless steel AISI 304, bottom in stainless steel AISI 316 (30/10 mm, side walls 20/10 mm), resistant to salt corrosion and usury, provided with a removable strainer for protection of the drain valve, corners with rounded interior angles
- Water tap for filling up the tank, with the control positioned on the front.
- “Stamped” cover, hinges with “torsion spring” allowing a closing and a gradual opening, provided with an ergonomic lateral handle made of stainless steel.
- Indirect heating, double-jacketed tank, water filling by a tap, a second serving as an overflow, allows to check the completion of the filling monitoring light and drain cock
- Control of the pressure of the double jacket at 0.5 BAR by pressure valve, safety device with manometer, and depression valve placed above the top.
- Gas heating, by stainless steel burners with stabilized flame
- Temperature regulation by valve, ignition by pilot light and safety system by thermocouple, piezo-mechanic device, frontal accessibility allowing a very easy maintenance.
Measures and Content
Dimensions
External Dimension (WxDxH): W800 x D900 x H920
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond G9/M10I8-N Gas Indirect Heating Boiling Pan on Cupboard, 100 Litres then please get in touch.
