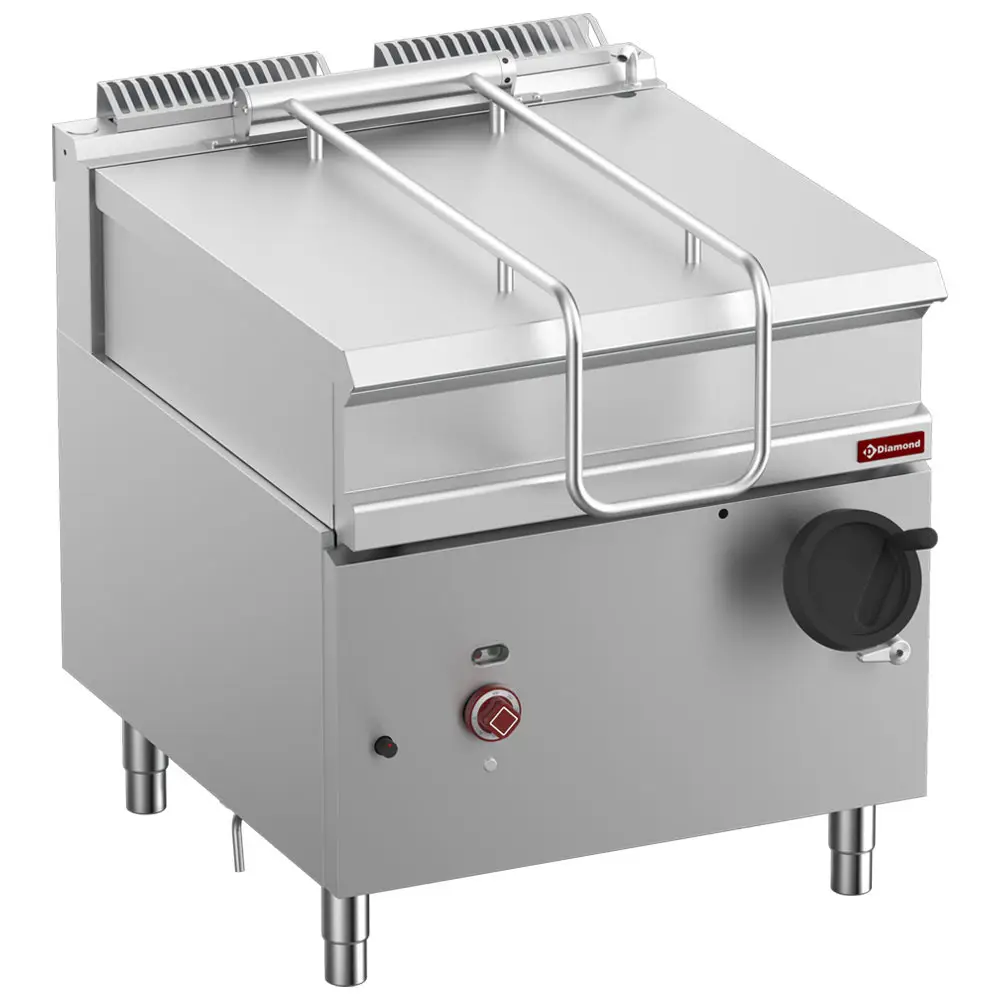

Diamond G9/BRI8-N Freestanding Tilting Gas Bratt Pan on Cupboard, 0.02kW
£5,531.68 +vat
+vat
RRP: £9,878.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Tank dim
- 790x690xh200 mm, surface 50dm2.
- Tilting of the tank by a handwheel.
- Made in stainless steel AISI 304, adjustable feet in stainless steel.
- Top (20/10 mm) in stainless steel AISI 304.
- Chimney in the back in stainless steel AISI 304.
- The “stamped” cover of the tank is on hinges with “torsion spring” in stainless steel, allowing a gradual closing and opening, provided with an ergonomic front handle.
- Tilting tank made of stainless steel AISI 304 thickness (13 mm) with high thermal conductivity, corners with rounded interior angles for easy and hygienic maintenance.
- Gas heating, by burners in stainless steel with stabilized flame
- Temperature regulation from 90 to 300°C (uniform temperature on the bottom of the tank), ignition for pilot light and safety system by thermocouple, piezo-mecanics device, frontal accessibility allowing a very easy maintenance.
- Safety device for interruption of operation during the ascent of the series tank
- A water tap to fill the tank is attached to the upper top, the opening is done by a valve positioned on the front of the device.
Measures and Content
Dimensions
Internal Dimension (WxDxH): W790 x D690 x H200
External Dimension (WxDxH): W800 x D900 x H920
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond G9/BRI8-N Freestanding Tilting Gas Bratt Pan on Cupboard, 0.02kW then please get in touch.
