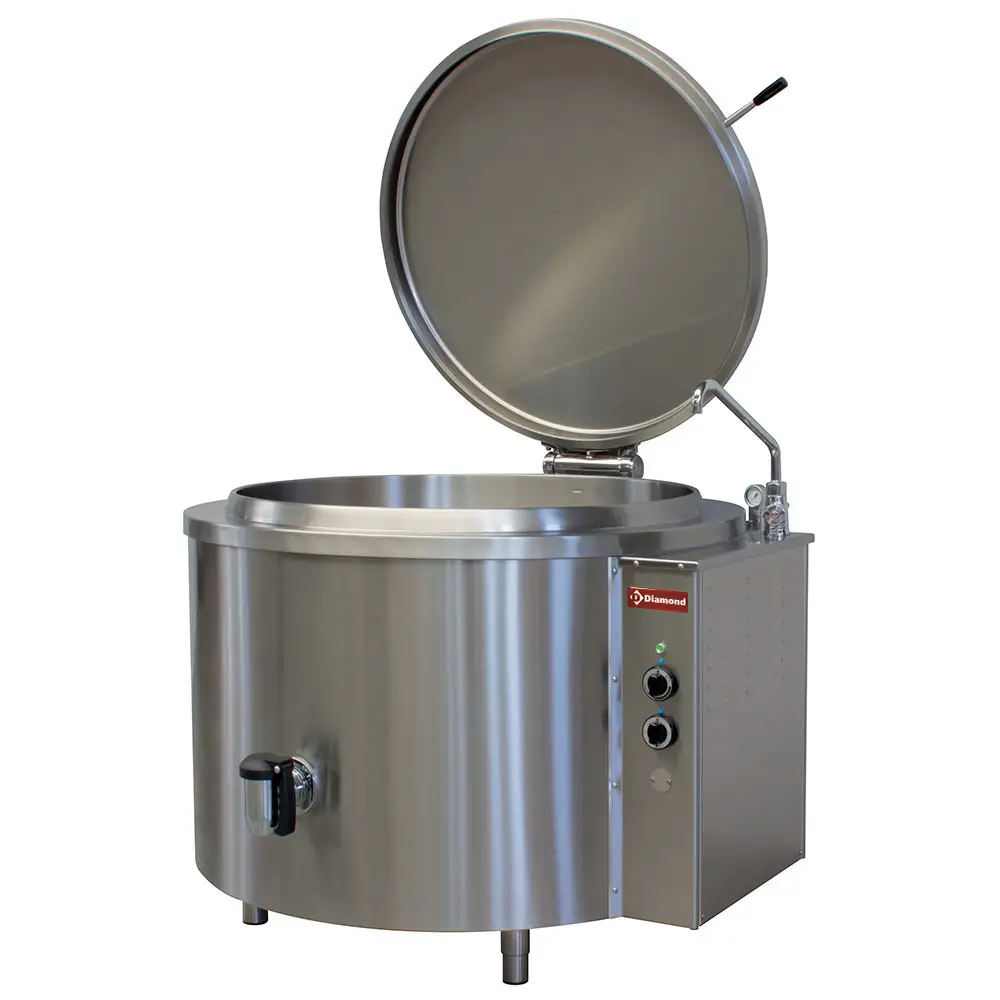

Diamond EMM/200I Electric Indirect Heating Boiling Pan, 200 Litres
£11,964.96
+vat
RRP: £21,366.00
Size:
Capacity:
- Tank diameter 760 mm, depth 500 mm.
- “Deep-drawn” tank, bottom made of polished AISI 316 stainless steel (25/10 mm thick) wall made of 304 stainless steel (20/10 mm thick)
- Indirect heating, double jacket made of 304 stainless steel (20/10 mm thick).
- Made of AISI 304 stainless steel, adjustable stainless steel feet
- Covering: made of AISI 304 stainless steel (10/10 mm thick)
- Work surface: made of AISI 304 stainless steel (15/10 mm thick).
- “Deep-drawn” tank wall made of stainless steel 304, bottom made of polished AISI 316 steel, resistant to salt corrosion and wear, equipped with a removable strainer to protect the drain valve
- Water tap for filling the tank, 2″ drain valve.
- “Deep-drawn” cover made of 304 stainless steel, self-compensating hinges allowing gradual closing and opening.
- Indirect heating, double jacket tank made of 304 stainless steel, filling by the safety group and control valves of minimum/maximum level of the double jacket
- Pressure control of the double jacket by a 0.45 bar valve, with pressure gauge and vacuum valve.
- Electric heating by INCOLOY resistors immersed in the double envelope, power regulation by means of an energy regulator.
- Safety thermostat, preventing water direction operation in the double jacket, as well as an operating pressure switch…
- Working temperature up to 100°C.
Measures and Content
Dimensions
External Dimension (WxDxH): W1000 x D1000 x H900
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond EMM/200I Electric Indirect Heating Boiling Pan, 200 Litres then please get in touch.
01922 926123
