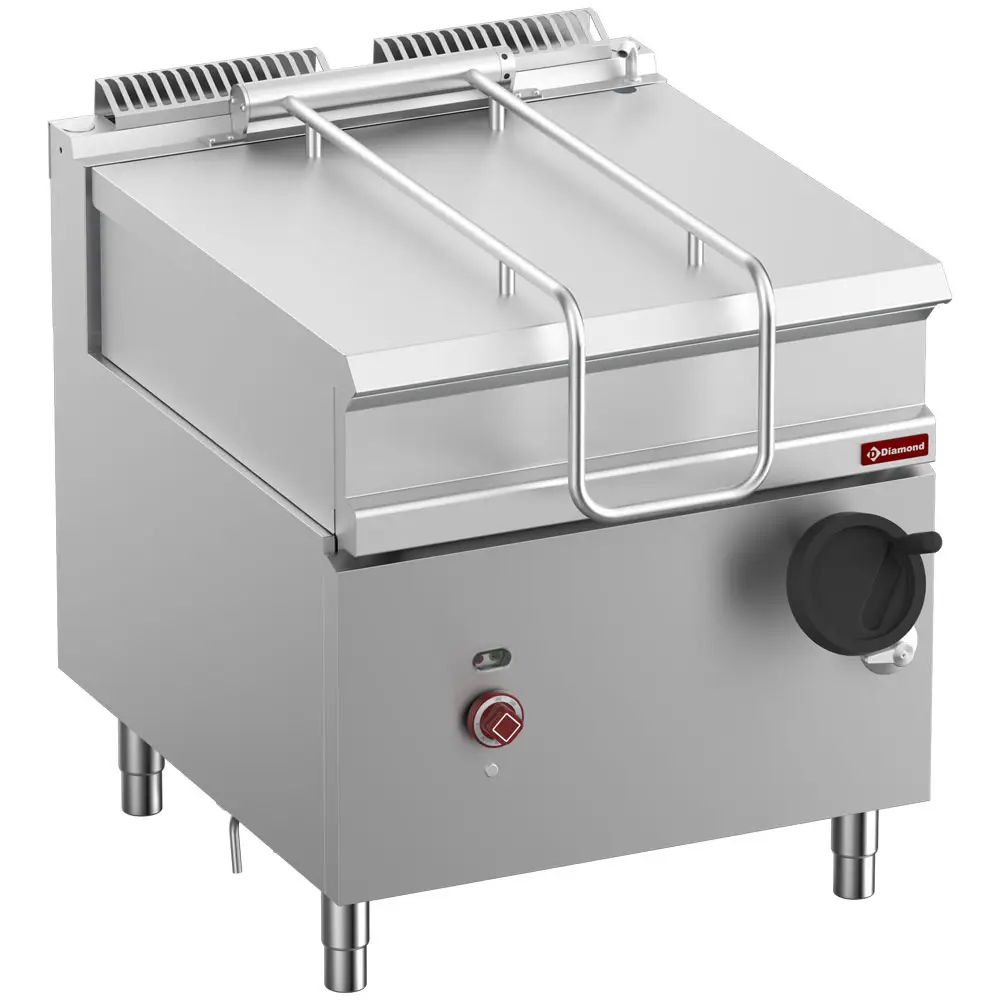

Diamond E9/BRI8-N Freestanding Tilting Electric Bratt Pan on Cupboard, 12kW
£5,697.44
+vat
RRP: £10,174.00
Size:
Capacity:
- Dimensions of the tank 815x610xh200 mm, surface 50 dm2.
- Manual tilt by hand wheel.
- Made in stainless steel AISI 304, adjustable feet in stainless steel.
- Top (20/10 mm) in stainless steel AISI 304.
- Chimney in the back in stainless steel AISI 304.
- The “stamped” cover of the tank is on hinges with “torsion spring” in stainless steel, allowing a gradual closing and opening, provided with an ergonomic front handle.
- Tilting tank made of stainless steel AISI 304 thickness (13 mm) with high thermal conductivity, corners with rounded interior angles for easy and hygienic maintenance.
- Electric heating, by armored resistors in stainless steel, positioned under the tank (uniform cooking on the whole surface of the tank)
- Temperature regulation from 75°C to 300°C, by thermostat, frontal accessibility allowing a very easy maintenance.
- Safety device for interruption of operation during the ascent of the series tank
- A water tap to fill the tank is attached to the upper top, the opening is done by a valve positioned on the front of the device.
Measures and Content
Dimensions
Internal Dimension (WxDxH): W815 x D610 x H200
External Dimension (WxDxH): W800 x D900 x H920
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond E9/BRI8-N Freestanding Tilting Electric Bratt Pan on Cupboard, 12kW then please get in touch.
