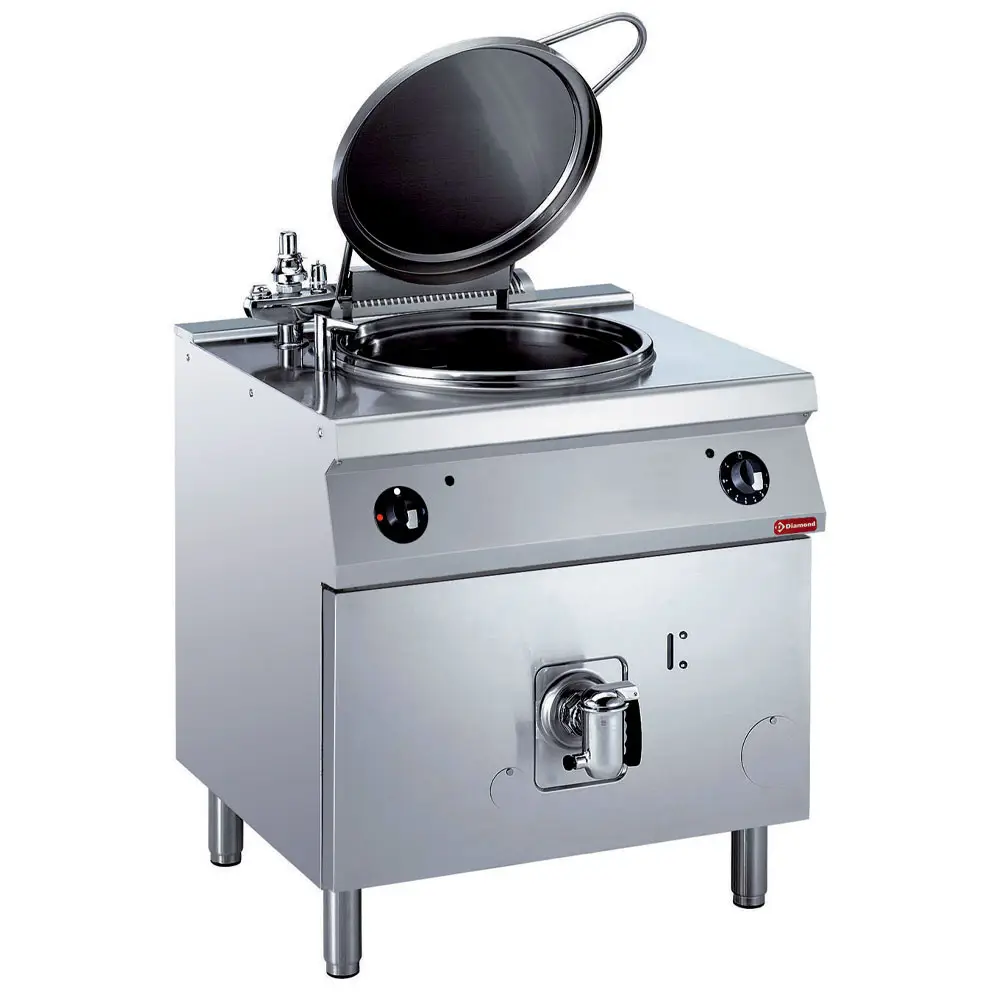

Diamond E17/M60I8-N Electric Indirect Heating Rounded Kettle on Board, 60 Litres
£6,246.24
+vat
RRP: £11,154.00
Size:
Capacity:
- Basin manufactured in stainless steel AISI 304,bottom in stainless steel AISI 316.
- Diameter of the basin 420, depth 485 mm.
- Outlet tap of 1″,1/2.
- Made of 18/10 AISI 304 stainless steel, deep-drawn “Top” thickness 15/10th, adjustable stainless steel feet (150/200 mm), waterproof “IPX5”.
- Deep-drawn” tank made of AISI 316 stainless steel (Food certified according to European regulation CE n.1935/2004), bottom 30/10 mm thick, side walls 20/10 mm thick, resistant to salt corrosion and wear, equipped with a removable strainer to protect the drain valve
- Water tap for filling the tank.
- Deep-drawn” cover, made of AISI 316 stainless steel with double walls, “reinforced edge” hinges with “torsion spring” allowing gradual closing and opening.
- Indirect heating, double jacketed tank, manual water filling
- Two taps located on the front panel of the unit, the first for the opening, the second for the overflow
- Pressure control of the double jacket by a 0.5 BAR valve, vacuum valve with a pressure gauge on the front panel.
- Electric heating by immersion resistors in the double jacket, regulated by a 4-position switch.
- Appliances built in compliance with current standards (CE)
Measures and Content
Dimensions
External Dimension (WxDxH): W800 x D700 x H920
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond E17/M60I8-N Electric Indirect Heating Rounded Kettle on Board, 60 Litres then please get in touch.
