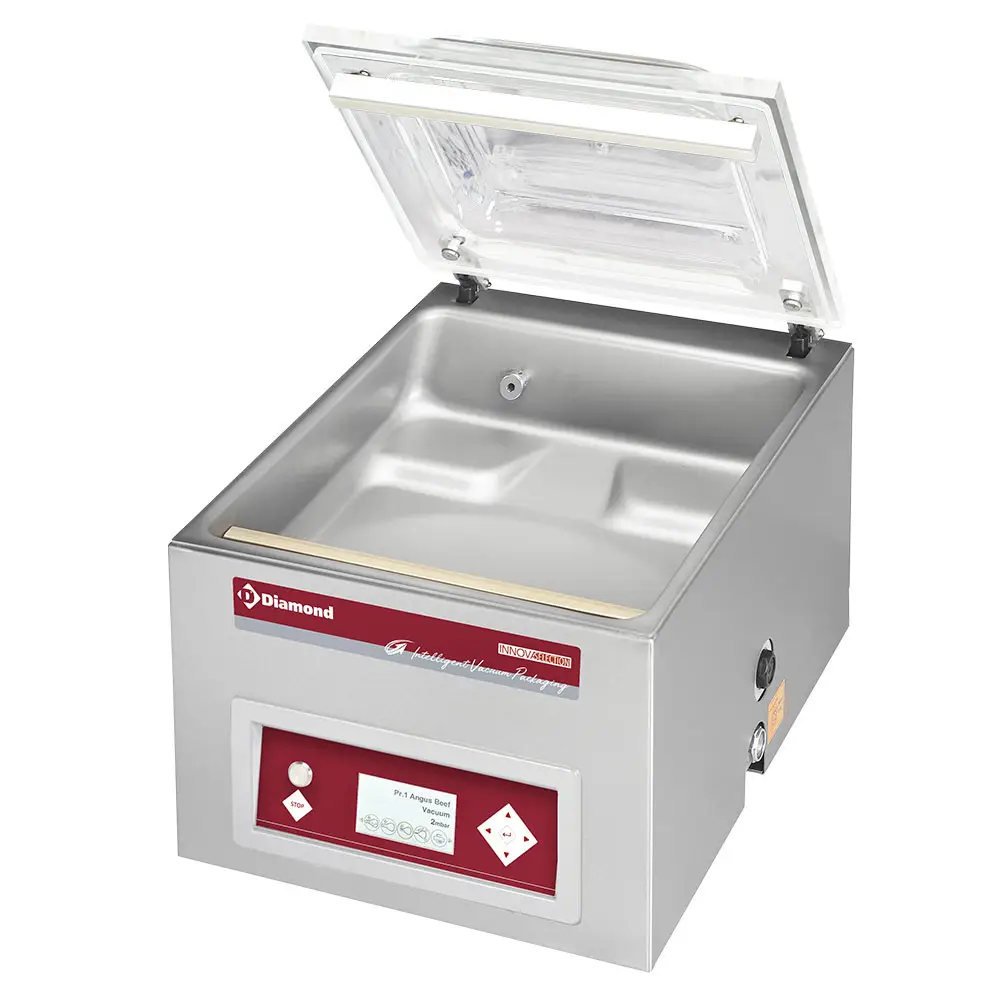

Diamond TA-90B/IVP Vacuum Machine

£3,928.96

+vat

RRP: £7,016.00

SKU: TA-90B-IVP

Size:
Capacity:

Control panel with LCD display (IVP: INTELLIGENT VACUUM PACKAGING), maintenance program and pump cleaning
Vacuum pump capacity 21m3/h
(Busch type)
Cycle time 15-40 seconds.
Chamber dimensions: 420x460xh180 mm (Seal length: 420mm).
Delivered with volume insertion plate, for a fast cycle and a good positioning of your.
Soft air: gradual vacuuming.
On request: Liquid control sensor, inclined plate for liquid, nitrogen gas injection system, 2 sealing bars, ….
Vacuum machine with innovative design, made entirely of AISI 304 stainless steel
Deep-drawn inner tank, made of AISI 304 stainless steel, easy to maintain, guaranteeing perfect hygiene.
Removable sealing bar.
Rigorous double welding of 3.5 mm.
Innovative curved cover (automatic lifting by cylinders) with very high transparency and unbreakable.
Large, high-resolution colour LCD display, allowing you to view all the steps of the vacuuming process.
Programming directly on the machine keyboard or from a PC (Storage of 20 recipes or specific), data transfer via USB port
The vacuum is managed in % or mbar thanks to the integrated vacuum sensor, no more risk of inadvertently incomplete vacuum.
Possibility to assign a user code to each operator
All operations are stored in the chip of the electronic card and the “log book” of use can be exported to a PC, guaranteeing HACCP control and optimized management of all vacuum operations.
Device built in compliance with the standards (CE) in force.
