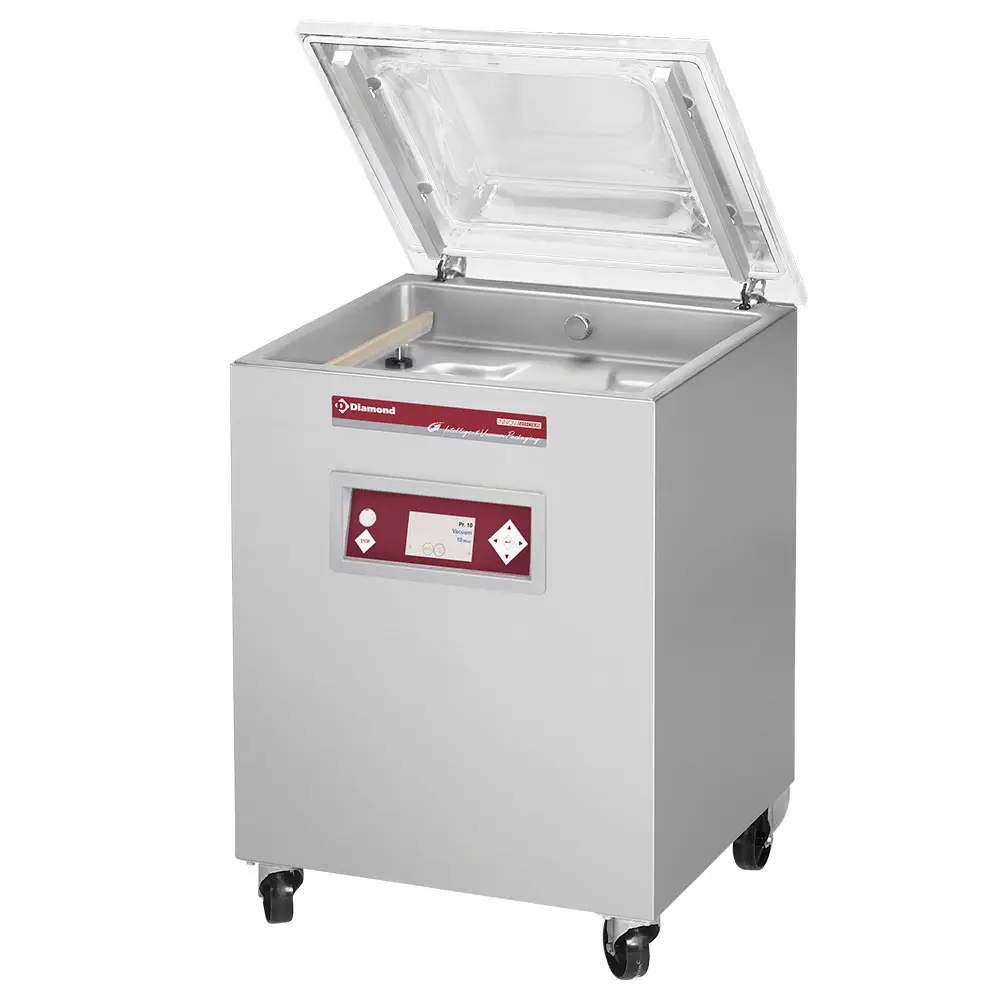

Diamond SC-120/IVP Vacuum Machine

£7,085.12 +vat

+vat

RRP: £12,652.00

Available to order: lead time applies

SKU: SC-120-IVP

Size:
Capacity:

Available to order: lead time applies

Control panel with LCD display (IVP: INTELLIGENT VACUUM PACKAGING), maintenance program and pump cleaning.
Vacuum pump capacity 63m3/h
(Busch type)
Cycle time 15-40 seconds.
Transparent domed lid, opening with piston.
Chamber dimensions: 600x475xh200 mm (Sealing length: 2 x 520mm).
Working height 900 mm.
Delivered with volume insert plate, for a fast cycle and a good positioning of your.
Soft air: gradual vacuuming.
On request: Liquid control sensor, inclined plate for liquid, gas injection system “nitrogen”, …
Vacuum packing machine with innovative design, made entirely of stainless steel AISI 304.
Deep-drawn internal tank, made of AISI 304 stainless steel, easy to maintain and guarantees perfect hygiene.
Removable sealing bar.
Rigorous 3.5 mm double seal.
Large, high-resolution colour LCD screen to visualise all the vacuum stages.
Programming directly on the machine keyboard or from a PC (20 recipes or specific can be stored), data transfer via USB port.
The vacuum is controlled in % or mbar by the integrated vacuum sensor, eliminating the risk of inadvertent under-vacuum.
Possibility to assign a user code to each operator
All the operations are stored in memory in the chip of the electronic card and the “log book” of use can be exported to a PC, guaranteeing HACCP control and optimised management of all the vacuum packaging operations.
Chassis on 4 swivel wheels (2 with brakes)
Apparatus built in compliance with the standards (CE) in force.
