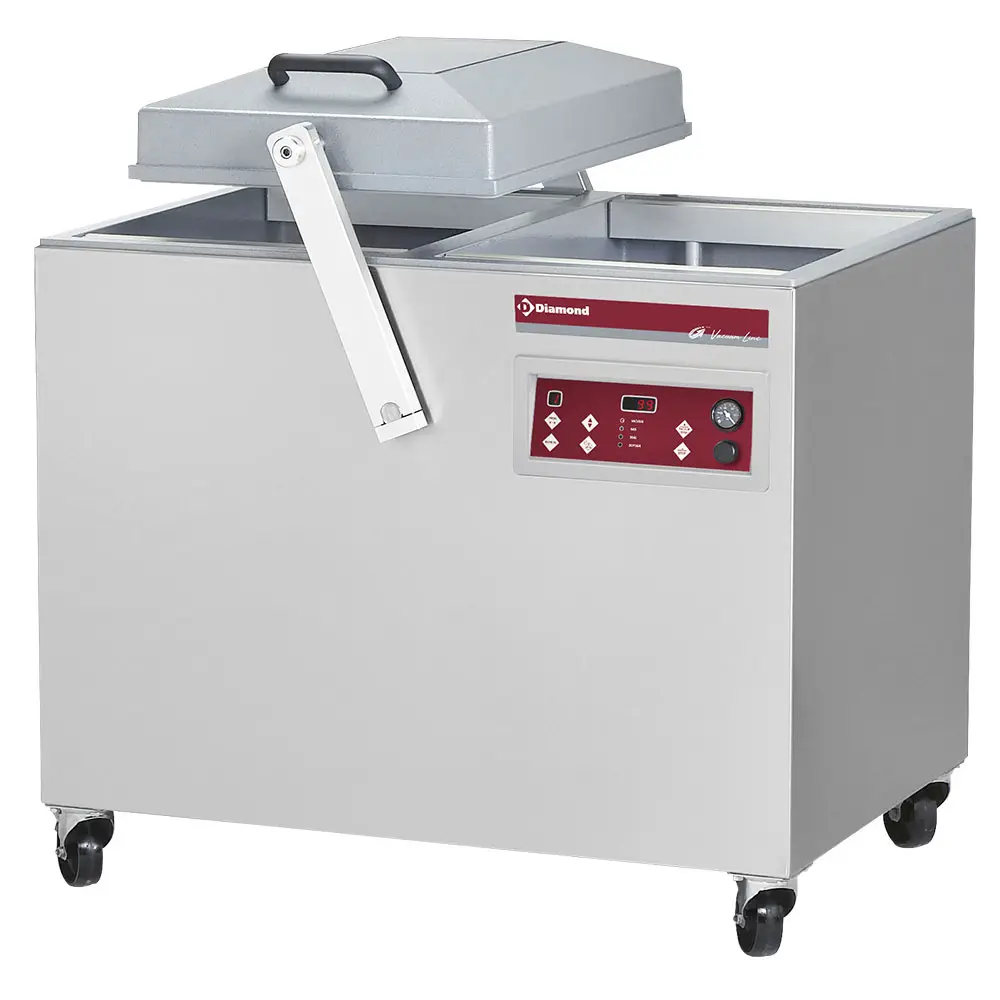

Diamond CF-150/S Vacuum Machine, Double Chamber 450X580Xh235 Mm. – 63 M3/H
£12,286.40 +vat
+vat
RRP: £21,940.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Vacuum pump capacity 63m3/h (Busch type).
- Cycle time 15-40 seconds.
- Aluminium cover with window.
- Chamber dimensions: 2x 450x580xh235 mm.
- Working height 900 mm.
- 4 sealing bars (2 per chamber).
- Digital control panel with 10 programs, analog display.
- On request: inclined plate for liquid, gas injection system “nitrogen”, Soft air: gradual vacuuming, ….
- Professional machines on pedestal.
- The vacuum is managed in % thanks to the integrated vacuum sensor, no more risk of inadvertent incomplete vacuum.
- Double bell.
- AISI 304 stainless steel frame, on 4 swivel castors (2 with brakes).
- Aluminium vacuum chamber, guaranteeing perfect hygiene and easy maintenance.
- Removable sealing bar.
- Rigorous 3.5 mm double seal.
- Machine built in compliance with current (CE) standards.
Measures and Content
Dimensions
External Dimension (WxDxH): W1075 x D890 x H1040
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond CF-150/S Vacuum Machine, Double Chamber 450X580Xh235 Mm. – 63 M3/H then please get in touch.
01922 926123
