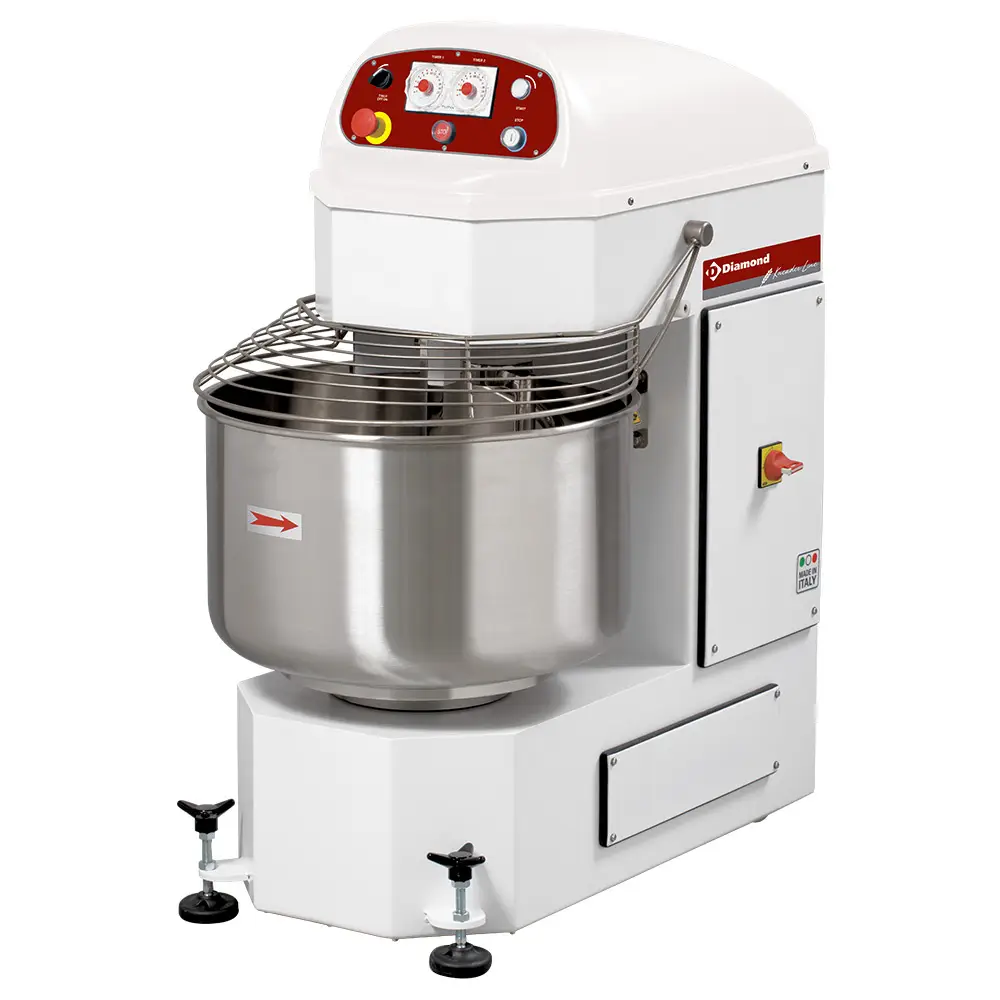

Diamond PSB-41M/2V Automatic 2 Speed Spiral Kneader, 80 Litres

£5,919.20

+vat

RRP: £10,570.00

Brand: Diamond

SKU: PSB-41M-2V

Size:
Capacity:

Production capacity 40 kg (80 Lt)
Flour capacity 25 kg
2 speeds, automatically adjustable (Spiral: 1st Speed 112 rpm and 2nd Speed 224 rpm) & (Tank: 1st Speed 14 rpm and 2nd Speed 28 rpm)
2 electronic timers, for the automatic management of each speed.
Tank Ø 530xh320 mm
Control panel, low voltage 24V
(IP55).
Motor with pulley transmissions.
Emergency stop button type “punch”.
Frame in epoxy painted steel, very thick.
Spiral tank, tool shaft and dividing share are made of thick AISI 304 stainless steel.
Stainless steel spiral connection unit, waterproof and very solid.
Stainless steel tank protection grid with microswitch device.
Comes standard with 2 rear nylon wheels and 1 swivel wheel and 2 adjustable cylinders at the front.
The device is built in compliance with the current CE standards.

Measures and Content

Dimensions

External Dimension (WxDxH): W1230 x D1020 x H550

Cooling and Functions

Power and Consumption

Design and Material

If you have any questions about the Diamond PSB-41M/2V Automatic 2 Speed Spiral Kneader, 80 Litres then please get in touch.

01922 926123
