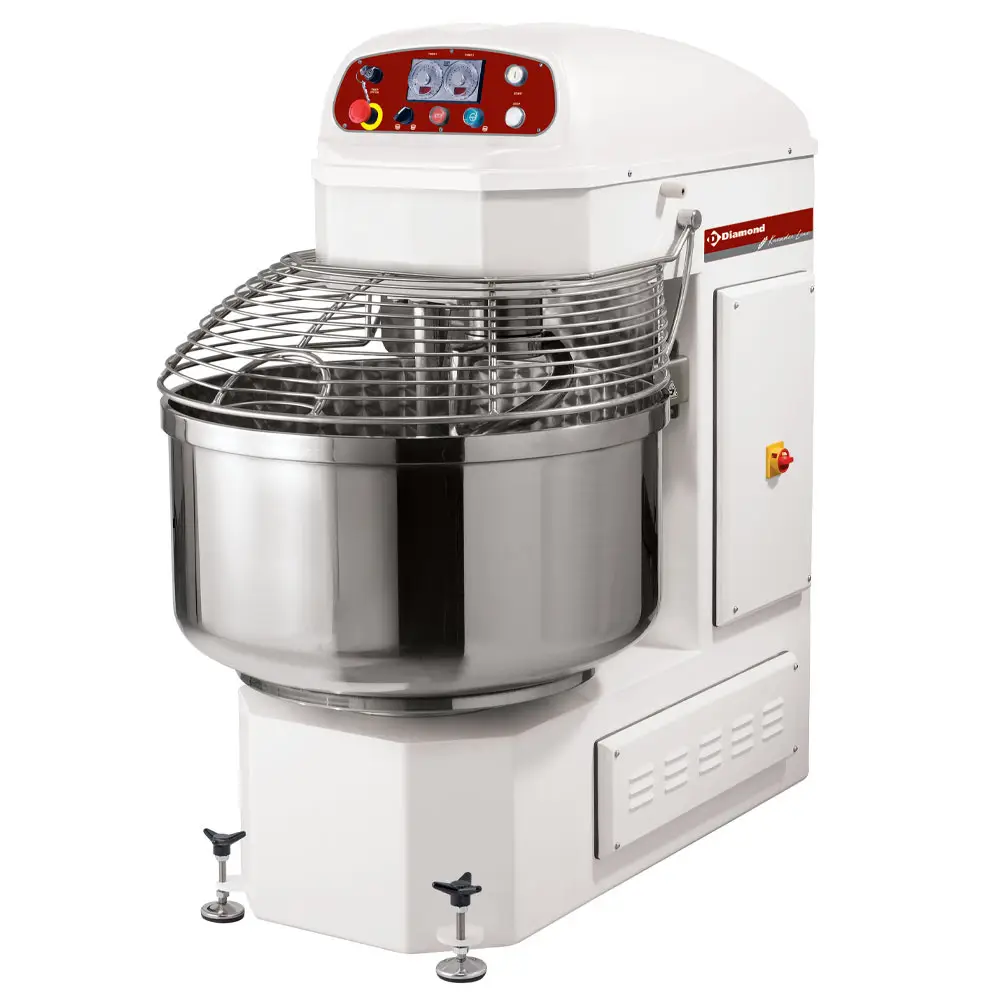

Diamond PSB-252MI/2V Automatic 2 Speed Spiral Kneader, 390 Litres
£17,643.36 +vat
+vat
RRP: £31,506.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Production capacity 250 kg (390Lt)
- Flour capacity 166 kg
- 2 speeds, automatically adjustable (Spiral: 1st Speed 114 rpm and 2nd Speed 228 rpm) & (Tank: 15 rpm)
- 2 electronic timers, for the automatic management of each speed.
- 2 independent motors, one for the tank and one for the spiral
- Device for pulse rotation of the tank and reversal of the direction of rotation of the tank.
- Tank Ø 1000xh470 mm
- Control panel, low voltage 24 V
- (IP55).
- Motors with pulley transmissions.
- Emergency stop button type “punch”.
- Frame in epoxy painted steel, very thick.
- Tank, spiral, tool shaft and dividing share are made of thick AISI 304 stainless steel.
- Stainless steel spiral connection unit, waterproof and very solid.
- Stainless steel tank protection grid with microswitch device.
- Comes standard with 2 fixed rear nylon wheels and 1 swivel wheel and 2 adjustable cylinders at the front.
- The device is built in compliance with the current CE standards.
Measures and Content
Dimensions
External Dimension (WxDxH): W1030 x D1580 x H1560
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond PSB-252MI/2V Automatic 2 Speed Spiral Kneader, 390 Litres then please get in touch.
