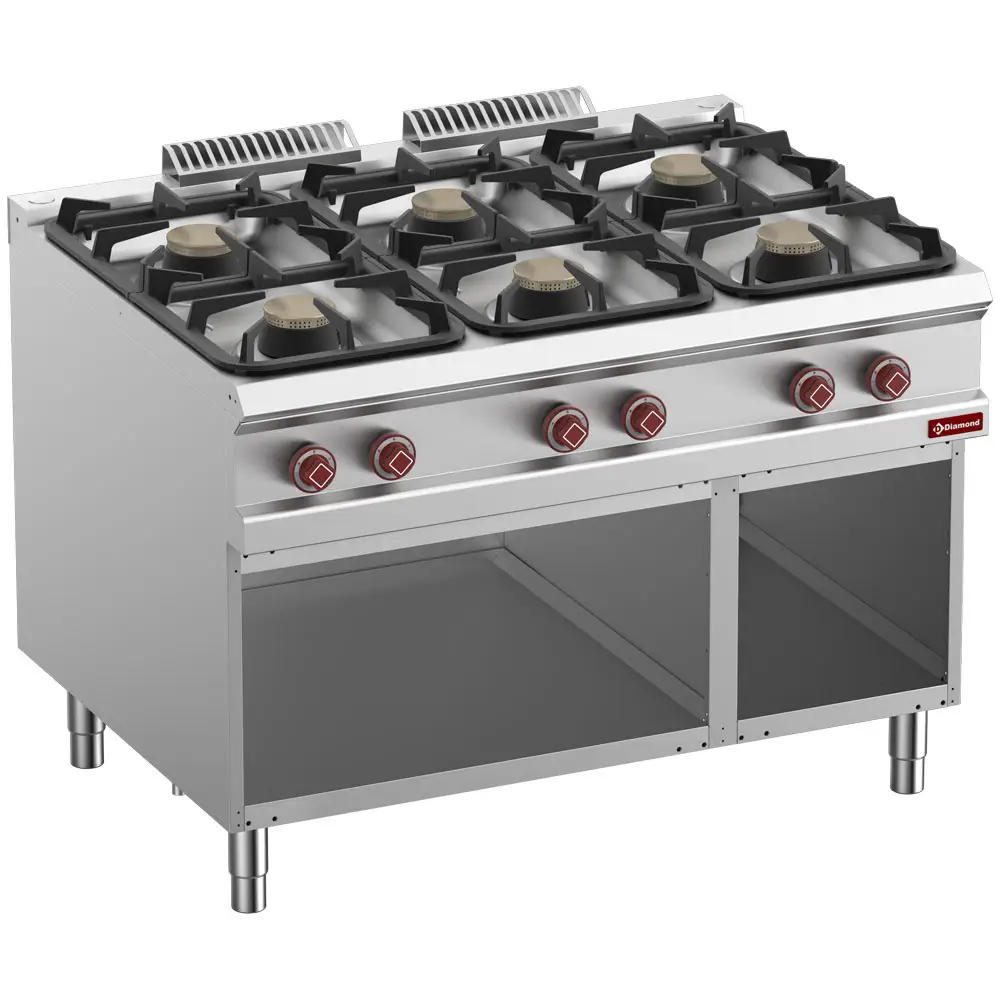

Diamond G9/6BA12-N 6 Burner Gas Range on Open Cupboard

Diamond G9/6BA12-N 6 Burner Gas Range on Open Cupboard

£2,944.48 +vat

+vat

RRP: £5,258.00

Low stock: order soon

- +

Brand:

SKU: G9-6BA12-N

Size:
Capacity:

Low stock: order soon

  • 6 burners (3x 7 kW, 3x 11 kW) High Efficiency-Flexibility
  • Open cupboard (GN 2/1+GN 1/1) (1160x740xh360 mm)
  • Made in stainless steel AISI 304, adjustable feet in stainless steel
  • Stamped top (20/10 mm), liquid collection bowl in stainless steel AISI 304, stamped and waterproof
  • Waterproof “IPX5”
  • Chimney in the back in stainless steel AISI 304
  • The enclosure of the oven and double-walled door (stamped) made of stainless steel and equipped with thermal insulation, lateral guides on 3 levels, door on spring hinges, stainless steel handle
  • Burners in cast iron treated waterproof, brass crown (with very high efficiency). Regulation of burners from 1,5 to 7 kW and from 2 to 11 kW by gas valve, pilot ignition and thermocouple safety, frontal accessibility allowing a very easy maintenance. Enamelled cast iron grates: 390×380 mm (dishwasher safe)
Spare Parts List
User Manual
Data Sheet

Measures and Content

Dimensions

Internal Dimension (WxDxH): W1160 x D740 x H360
External Dimension (WxDxH): W1200 x D900 x H920

Cooling and Functions

Power and Consumption

Design and Material

If you have any questions about the Diamond G9/6BA12-N 6 Burner Gas Range on Open Cupboard then please get in touch.
