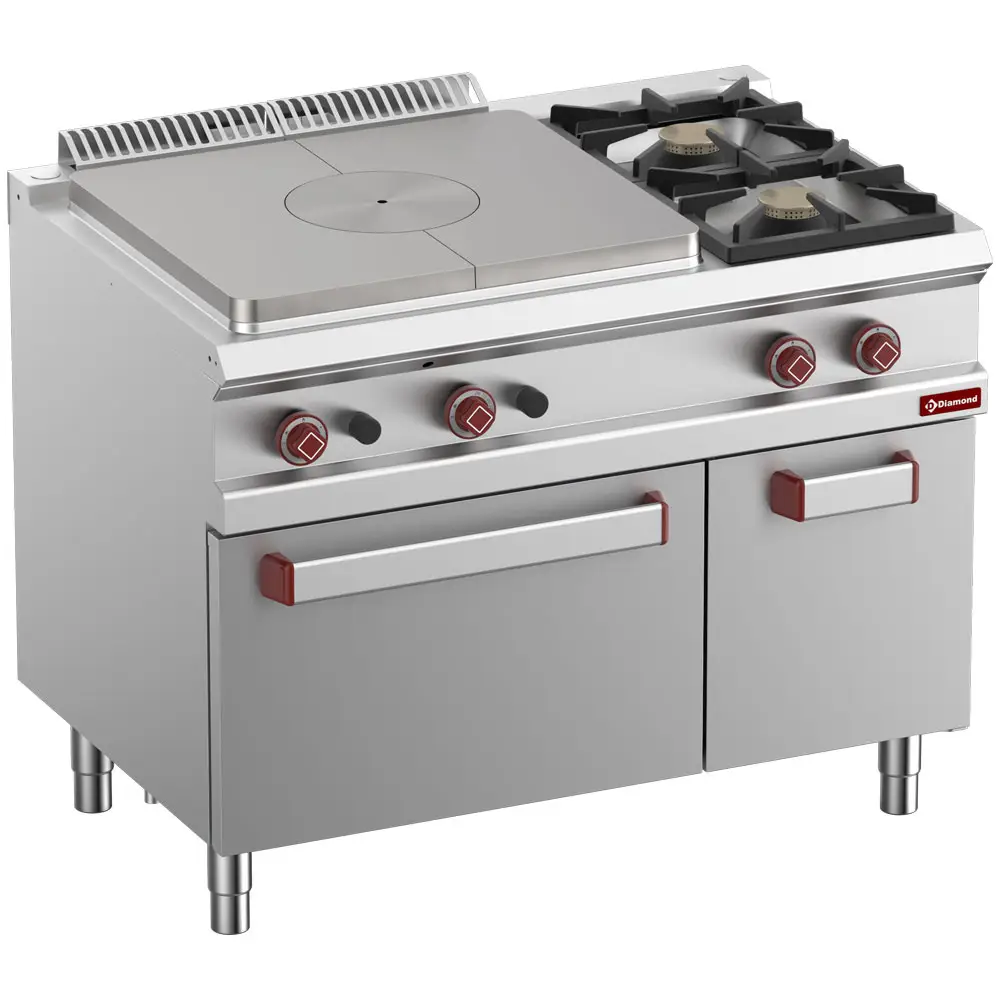

Diamond G7/T2BFA11-N 2 Stove & 1 Whole Hob Freestanding Gas Range Cooker on Gas Oven & Neutral Cupboard
£4,004.00
+vat
RRP: £7,150.00
Size:
Capacity:
- 2 burners (2x 7 kW) High Efficiency-Flexibility.
- Solid top dimensions 670×585 mm (10kW).
- Gas oven GN 2/1 (6 kW) dimensions 560x660xh310 mm.
- Neutral cupboard GN 1/1 dimensions 340x650xh350 mm.
- Made of stainless steel 304, adjustable cylinders.
- Deep-drawn and watertight top (15/10 mm) in AISI 304 stainless steel, integrated liquid collection basins, IPX5 water resistance.
- Rear chimney in stainless steel AISI 304.
- Oven enclosure and double-walled door (deep-drawn) made of stainless steel and provided with thermal insulation, lateral guides on 3 levels.
- Oven door on spring hinges, stainless steel handle.
- Burner burners in treated cast iron, brass crown (very high efficiency)
- Burner regulation from 1.5 to 7 kW by gas valve, pilot ignition and safety by thermocouple, front access for easy maintenance.
- Upper grids in enamelled cast iron, dimensions 330×300 mm
- (Dishwasher safe).
- Cast iron hotplate (10 mm) with removable central ring, gas heating by a burner positioned in the centre of the combustion chamber
- Combustion chamber thermally insulated with glass wool
- Temperature regulation by a gas valve, ignition by piezoelectric ignition and safety by thermocouple.
- Gas oven GN 2/1, heating by stainless steel burners with stabilized flame
- Oven temperature regulation from 150°C to 290°C, by means of a thermostatic gas valve, piezoelectric ignition and safety thermocouple, supplied with 1 grid.
Measures and Content
Dimensions
Internal Dimension (WxDxH): W560 x D660 x H310 (Oven) | W340 x D650 x H350 (Cupboard)
External Dimension (WxDxH): W1100 x D700 x H920
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond G7/T2BFA11-N 2 Stove & 1 Whole Hob Freestanding Gas Range Cooker on Gas Oven & Neutral Cupboard then please get in touch.
01922 926123
