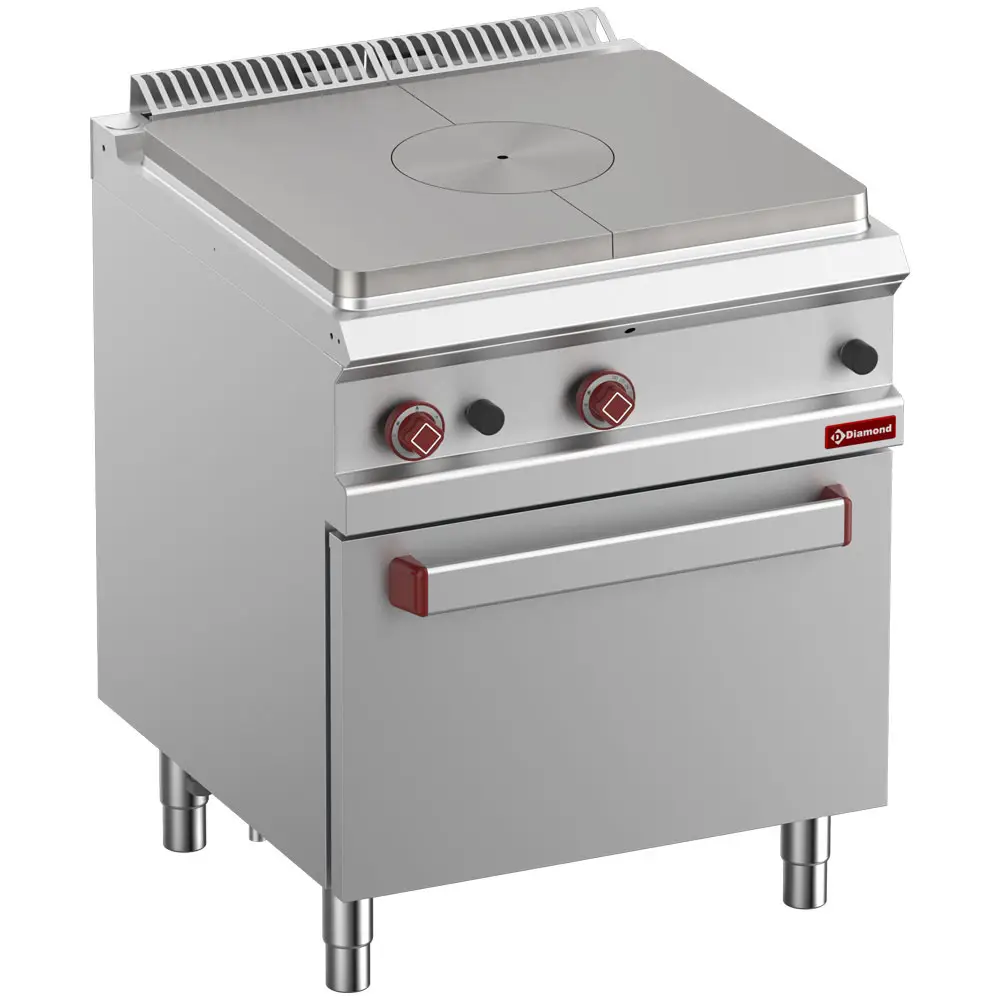

Diamond G7/TF7-N 1 Whole Hob Freestanding Gas Range Cooker on Gas Oven
£2,680.16
+vat
RRP: £4,786.00
Size:
Capacity:
- Solid top, dimensions 670x585mm (10 kW).
- Gas oven (6 kW) dimensions560x660xh310 mm.
- Made of stainless steel 304, stainless steel adjustable feet.
- Deep-drawn top (15/10 mm), IPX5 water resistance.
- Rear chimney in stainless steel AISI 304.
- Oven enclosure and double-walled (deep-drawn) door made of stainless steel and provided with thermal insulation, lateral guides on 3 levels
- Oven door on spring hinges, stainless steel handle.
- Cast iron solid plate (10 mm) with removable central ring, gas heating by a burner positioned in the centre of the combustion chamber
- Combustion chamber thermally insulated with glass wool
- Temperature regulation by a gas valve, ignition by piezoelectric ignition and safety by thermocouple, front access for easy maintenance.
- Gas oven, heating by stainless steel burners with stabilized flame
- Oven temperature regulation from 150°C to 290°C, by means of a thermostatic gas valve, piezoelectric ignition and safety thermocouple, supplied with 1 grid.
Measures and Content
Dimensions
Internal Dimension (WxDxH): W560 x D660 x H310
External Dimension (WxDxH): W700 x D700 x H920
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond G7/TF7-N 1 Whole Hob Freestanding Gas Range Cooker on Gas Oven then please get in touch.
