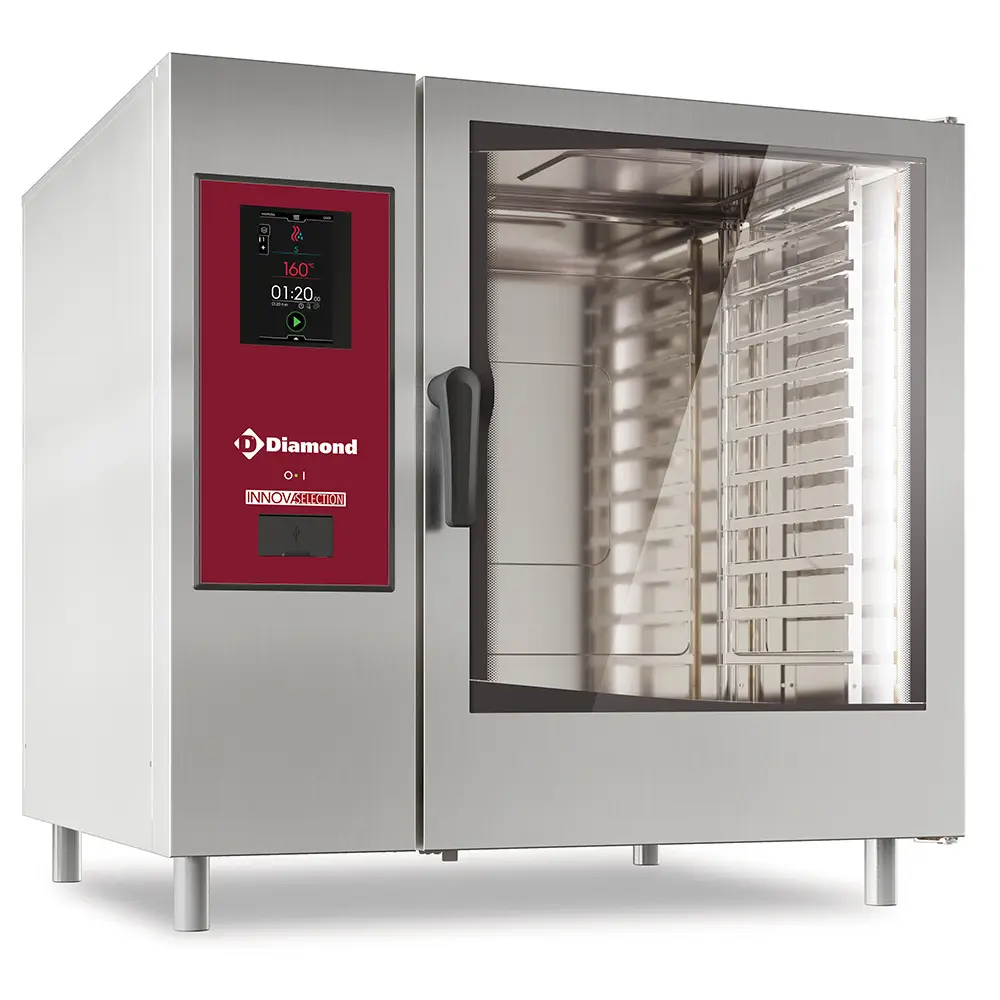

Diamond SDET/XC-12 Electric Direct Steam Convection Oven, 35.4kW
£14,630.56
+vat
RRP: £26,126.00
Size:
Capacity:
- Oven payload plates GN 2/1 (or GN 1/1).
- Load capacity 100 Kg.
- Lateral structures less than 65 mm “anti-tipping”.
- Core temperature probe.
- Charger 600×400 EURONORM (on request ref : AC/P12…)
- Internal and external construction in stainless steel AISI 304, thermal insulation in ceramic fibre, control panel with stainless steel filter, preventing soiling of the components (ventilated panel), stainless steel feet.
- Cooking chamber: fully welded, completely watertight, rounded corners and angles without asperities.
- Sealing gasket fixed on the front of the cooking chamber
- Double-drawn bottom that separates condensation from grease towards the discharge.
- Easily removable platinum door structure.
- Easily removable heat diffusers.
- Large motorized
- Oura allowing all cooking operations.
- Double-glazed door: ergonomic and athermic handle, automatic closing with safety device to prevent accidental opening, condensate recuperator integrated in the door, hinged inner glass for easy cleaning and perfect hygiene.
- Air circulation between the panes of glass guarantees better thermal insulation.
- Micro-switch to stop the fan when opening
- Side LED lighting for a global view of the enclosure.
- Electric heating: by stainless steel circular heating elements placed behind the fan deflectors, steam by nebulizer
- 7″ “TOUCH SCREEN” control panel with front access, quick and easy after-sales service, IPx5 protection class (against water jets from the lance).
Measures and Content
Dimensions
External Dimension (WxDxH): W1090 x D971 x H1058
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SDET/XC-12 Electric Direct Steam Convection Oven, 35.4kW then please get in touch.
01922 926123
