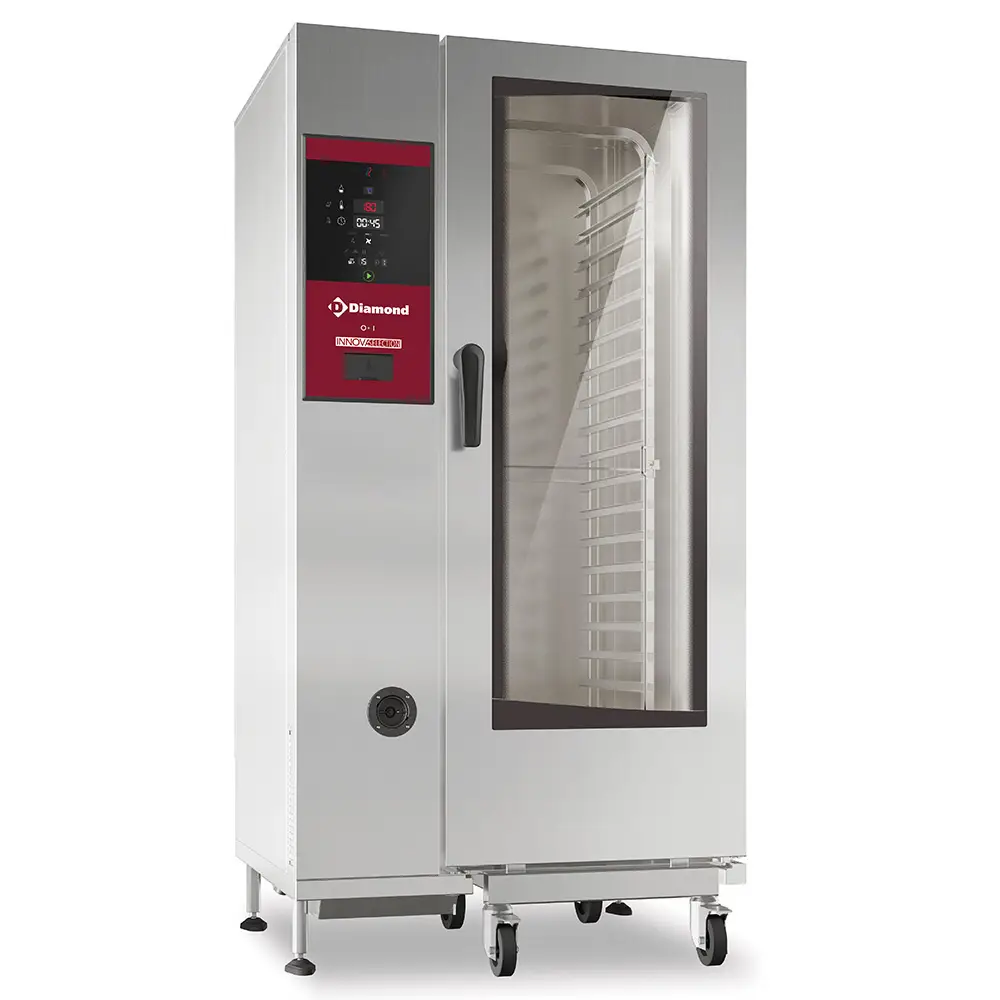

Diamond SDE/XC-20 Electric Direct Steam Convection Oven, 37.7kW
£16,913.12 +vat
+vat
RRP: £30,202.00
Available to order: lead time applies
Size:
Capacity:
Available to order: lead time applies
- Oven “LENGTHWISE” payload plates GN 1/3, 1/2, 2/3 and 1/1.
- Load capacity 100Kg.
- 1 transfer trolley and 1 removable carriage less than 65 mm “anti-tipping”.
- Core temperature probe.
- NB: delivered without grids and without GN plates.
- Internal and external construction in AISI 304 stainless steel, thermal insulation in ceramic fibre, control panel equipped with a stainless steel filter, preventing clogging of components (ventilated panel), stainless steel feet
- Cooking chamber: fully welded, corners and rounded corners
- Seal fixed on the front face of the cooking chamber
- Double stamped bottom that separates the condensation of grease to the discharge
- Easily removable plate holder structure
- Easily removable heat diffusers
- Oura motorized largely dimensioned allowing all cooking
- Grease filter by fan.
- Double glazed door: ergonomic and athermic handle, automatic closing with safety to prevent accidental opening, condensation recuperator integrated in the door, interior glass mounted on hinges, making cleaning easier and guaranteeing perfect hygiene
- Air circulation between the windows ensures better thermal insulation
- Microswitch for stopping the fan when opening
- Side LED lighting for a global view of the area
- Electric heating: by circular stainless steel armoured resistors placed behind the fan deflectors, steam by nebulizer
- Control panel (Thermostat from 25° to 300°C
- Timer from 1 min to 8 h,….) with digital display: front accessibility, ease and speed for after-sales service, protection class IPx5 (against water jets with a lance)
Measures and Content
Dimensions
External Dimension (WxDxH): W911 x D864 x H1794
Cooling and Functions
Power and Consumption
Design and Material
If you have any questions about the Diamond SDE/XC-20 Electric Direct Steam Convection Oven, 37.7kW then please get in touch.
